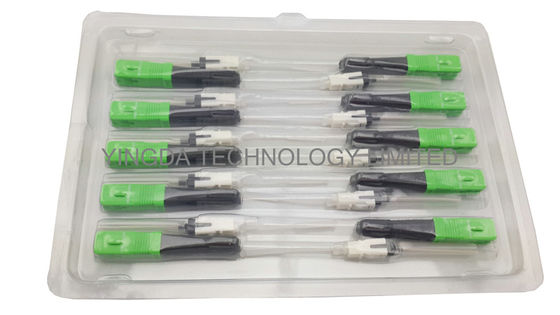

FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model YD-FS-SCA-09
Kuantitas min Order 500PCS
Harga Negotiable
Kemasan rincian 5pcs / blister box,1000pcs / carton box
Waktu pengiriman 3-5 working days after get payment
Syarat-syarat pembayaran T/T or western Union
Menyediakan kemampuan 10,000pcs per day

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
fiber type SMF-28e corning fiber cable type 0.9,2.0,3.0mm cable
connector SC / APC, LC FC ST available cable mode single mode OS1
Connector house green insertion loss <0.3dB
Tools fusion splicer machine, cotton, alcohol,fiber cleaver application FTTH
Cahaya Tinggi

quick assembly connector

,

FTTH connector

Tinggalkan pesan
Deskripsi Produk

FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC





Advantage:



1. 1000% test in house before delivery

2.  0.9,2.0,3.0mm suitable

3. 5pcs/set in bliseter box

4.  each box with english user manual

5.  house color: blue, green

6.  SC/APC,SC/UPC,FC/UPC can be choosed

6. Productivity:10,000 pcs / day





Description



SC/APC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point

inside the connector end, equivalently eliminate the pigtails when splicing.The advantage is no

need additional protection after splice, such as splice tray,splice closure,distribution box.In contract

to the design of mechanical splice connector, it save V-groove mechanical connector maintenance

and operation cost and durable, which overturns the concept that high cost of splice machine

and do not apply to FTTH construction.





Application



  • FTTH optic fiber terminal connection



Features

  1. Low operation cost, high efficiency
  2. Quickly achieve the on-site termination connection
  3. Easy operation or use
  4. Pressure welding parts adopt new unique structure design, installation without glue injectino, no grinding, no consumables
  5. High installation quality, high success rate and installation fast, etc
  6. Easy to carry
  7. Accurate mechanical dimensions
  8. All materials conforms to ROHS



Specification



Item

Parameter

Cable

3.1*2.0mm drop cable

Fiber diameter

125um(G657A2 bare fiber)

Tight buffer diameter

250um

Fiber type

Single mode OS1 9/125um

Insertion loss

≤0.3dB

Return loss

≤-50dB

Bare fiber solid tightness

>250g

Working temperature

-40℃-+80℃

Tensible strength

60N(5kgs for 2mins)

Drop test

4 meters high cement floor direction at a time,in total 3times



Order information:



1. fiber inside: 0.9mm, bare fiber 250um

2.  application cable diameter: 0.9mm, 2.0mm, 3.0mm





Package information
