xDetail produk
| Fiber count | duplex | connector material | plastic |
|---|---|---|---|
| adapter color | blue | sleeve material | ceramic |
| fiber type | single-mode | polish mode | UPC, SPC |
| working temperature | -40 ~ +85 °C | wavelength | 1310nm |
| house material | PBT / ABS | connector | SC |
| Cahaya Tinggi | serat optik adaptor,adapter serat telanjang |
||
Deskripsi Produk

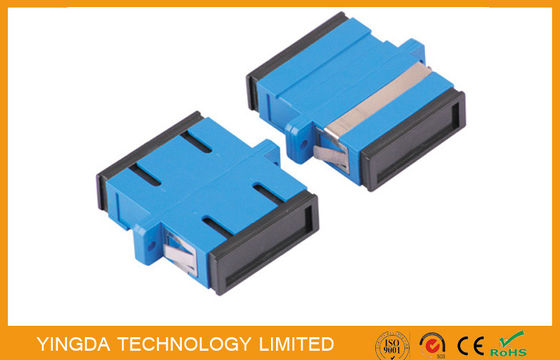

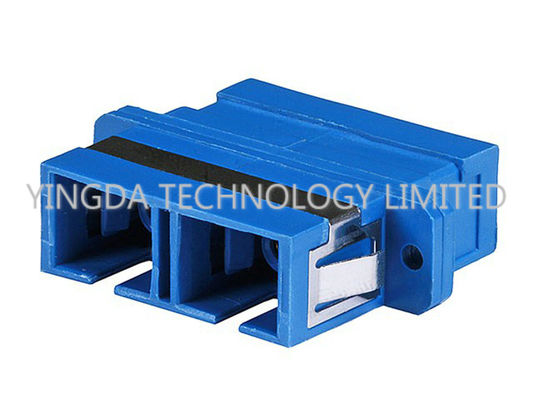

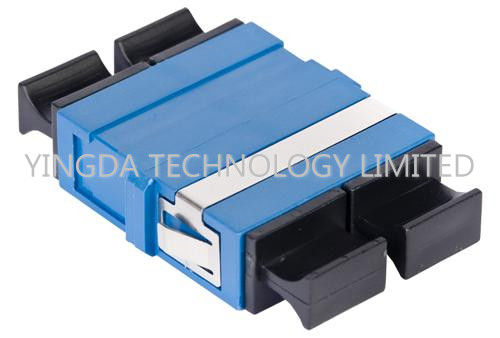

SC/UPC single-mode duplex optic fiber adapter, SC Duplex Coupler Adapter
Fiber connector adapters are also referred to as fiber optic couplers. They are used to provide a
cable to cable fiber connection.. Yingda connector adapters are used to connect the same type
fiber optic connectors, while hybrid adapters connect different kinds of fiber optic connectors.
We offers a complete line of adapters for fiber optic connections, including ST, SC, FC, LC, MTRJ
style fiber optic adapters for both multimode and single-mode fiber applications. We also offer fiber
adapter plates for ST-, SC-, MT-RJ- or LC-type connections.
SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,
high temperature resistant,not easy to oxidation.Transmission equipment generally use SC connectors.
Features
- Conforms to Telcordia GR-326-CORE standard
- Conforms to YD/T-1272.3 standard
- Good interchangeability,low insertion loss
- Easy to use,plug
- Application: FTTH,CATV,Telecommunications,etc
- 100% test in factory
- High quality blister box package
- Customer label with logo ok
- Insertion loss<0.2dB
Specification
|
Wavelength |
1200-1600nm |
|
Polish method |
UPC,PC,APC |
|
Insertion loss |
≤0.2dB |
|
Max.Insertion loss |
≤0.3dB |
|
Repeatability |
≤0.1dB |
|
Interchangeability |
≤0.2dB |
|
Sleeve material |
Cermic or metal |
|
Working/Storage temperature |
-40~+85℃ |
|
Matings time |
>1000 |
Order information
- Connector type: SC/UPC, SC/PC, SC/APC
- Connector color: beige, blue, green, aqua, purple
- Fiber type: SM, OM1, OM2, OM3, OM4
- Type: simplex, duplex
