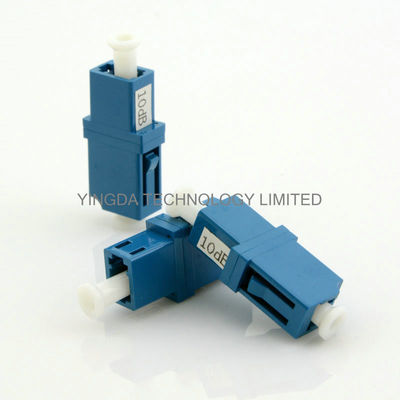

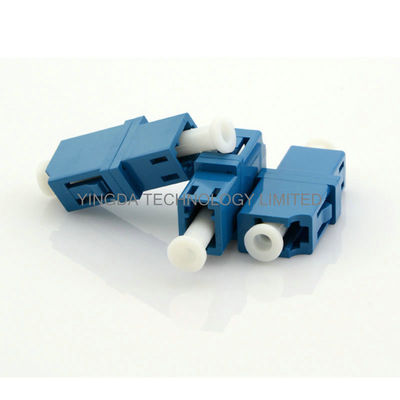

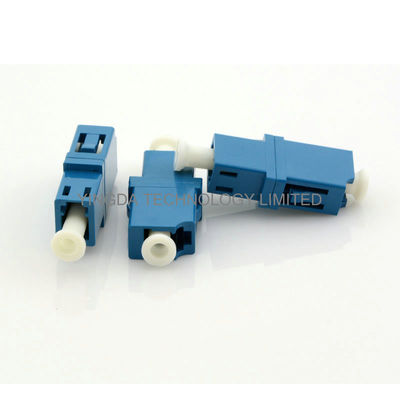

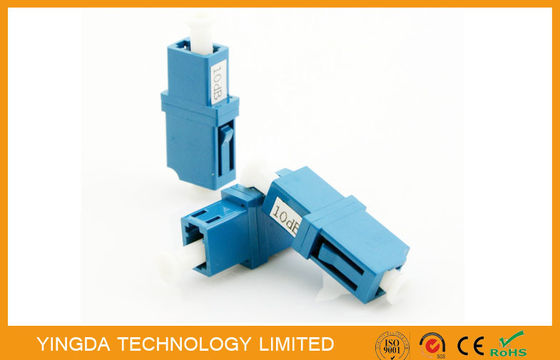

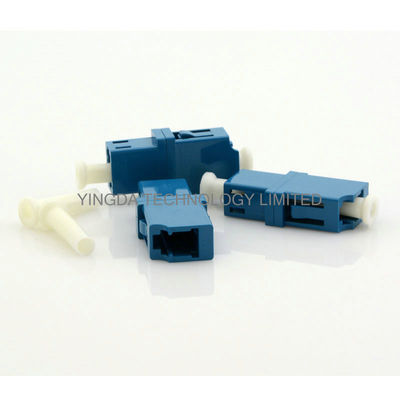

20dB 10dB 5dB 3dB SMF-28e Fiber Optic Attenautor , LC / PC Attenuator Female - Male
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Attenuation | 10 dB | wavelength range | 1260-16500nm |
|---|---|---|---|
| test wavelength | 1310nm, 1550nm | material | plastic PBT |
| Additional loss | 0.1dB | Working temperature | -40～+85 (℃) |
| Fiber optic type | single mode 9/125um | standard | GR910, IEC |
| connector | LC/UPC | connector color | blue |
| Cahaya Tinggi | build out attenuator,optical fiber attenuator |
||
Deskripsi Produk
LC/PC Attenautor 10dB 5dB 3dB SMF-28e Fiber, LC/PC Attenuator Female-Male 10dB
Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable (VOA)
type, according to connectors, can have MU, SC, ST, FC, LC etc..
From the microwave network point of view, attenuator is a two port lossy microwave networks. It belongs
to pass type microwave components.
Main application:
(1) to control the power level: the output power of the vibration control in microwave super heterodyne
receiver, to get the best noise coefficient and frequency conversion loss, then get the best reception.
In the microwave receiver, automatic gain control, improve dynamic range.
(2) decoupling components: as to the coupling element between the oscillator and the load.
(3) the relative standard: as a comparison of the relative standard of power level.
(4) jump attenuator in radar anti jamming: it is a variable attenuator whose attenuation value can
mutate, usually without introducing attenuation, encountered outside interference, a sudden
increase in attenuation.
Main features
- Made of attenuation optical fiber, excellent performance
- Simple structure, compact size, easy to install
- Stable performance, high reliability
- Suitable for 1260 ~ 1650nm wide wavelength
- High reflection loss, low insertion loss
Technical parameters
|
Item |
Attenuation/dB |
Precision
error (dB) |
Working wavelength |
Return loss(dB) |
Connector type |
|
Coupler type |
1—2 |
≤±0.25dB |
1310nm/1550nm |
≥35dB |
FC;SC/PC |
|
3—15 |
≤±10％dB |
1310nm/1550nm |
≥35dB |
FC;SC/APC |
|
|
15-30 |
≤±1.5dB |
1310nm/1550nm |
≥35dB |
|
Reliability test
|
Test condition |
Insert change |
Reflection change |
|
Continuous collision (4000times) |
< 0.2dB |
>35dB |
|
drop test |
< 0.2dB |
>35dB |
|
bending test |
< 0.2dB |
>35dB |
|
twist test |
< 0.2dB |
>35dB |
|
Durability test: |
< 0.2dB |
>35dB |
|
tensile test: |
< 0.2dB |
>35dB |
|
Connector fit resistance |
200-400gf |
200-400gf |
|
vibration test: |
< 0.2dB |
>35dB |
|
salt spray test |
< 0.2dB |
>35dB |
|
shock test |
< 0.2dB |
>35dB |
|
operating temperature |
-20℃--+70℃ |
|
|
storage temperature |
-40℃--+70℃ |
|
Other types like FC SC can be provided:
