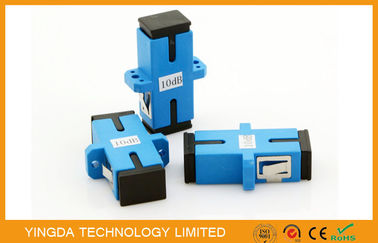

CATV 10 dB Optical Fiber Attenuator SM SC FC LC ST MU , Single Mode Fiber Attenuator
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xAttenuation | 10dB | wavelength range | 1200-1650nm |
---|---|---|---|
test wavelength | 1310nm /1550nm | material | plastic PBT/ABS |
Additional loss | 0.2dB | Working temperature | -40~+75 (℃) |
Fiber optic type | single-mode | standard | GR910, IEC |
connector | SC FC LC ST E2000 MU | connector color | blue |
Cahaya Tinggi | optical fiber attenuator,inline optical attenuator |
CATV SC Attenuator 10 dB Optical Fiber Single Mode SM, SC FC LC ST MU
Fixed optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety
of optical fiber transmission line, high precision attenuation, stable and reliable performance.
Performance characteristics have no relationship with wavelength change, can realize the adapter
and attenuator both functions.
Due to its attenuation accuracy, high additinal loss,it is used in optical distribution frame, optical
fiber network system, the low speed optical fiber transmission system.
Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable
(VOA) type, according to connectors, can have MU, SC, ST, FC, LC etc..
From the microwave network point of view, attenuator is a two port lossy microwave networks.
It belongs to pass type microwave components.
FEATURES
- Wavelength Independent
- Low ripple
- Excellent environmental stability
- Design certified to more than 200mW continuous
- Power handling capacity with no degradation in performances
- Backreflection performance to < -55dB available
- for UPC and < -60dB available for APC
- Polarization insensitive
APPLICATIONS
- Long Haul Telecommunication
- Fiber in the Loop (FITL)
- Local Area Networks (LAN)
- Cable TV & Video distribution
- Passive Optical Networks
- Network Testing
Specification
Parameter |
Condition |
Value [dB] |
||
Min |
Typical |
Max |
||
Attenuation |
|
|
1 ~ 10 |
|
|
|
15, 20 |
|
|
Return Loss |
SPC |
> 40 |
> 45 |
|
UPC |
> 50 |
> 55 |
|
|
APC |
> 60 |
> 65 |
|
|
Attenuation Accuracy |
1 ~ 10 |
|
±0.5 |
|
15 ~ 20 |
|
±1.0 |
|
|
Operating Wavelength [nm] |
1310 / 1550 |
|||
Operating Temperature |
-40℃ ~ +85℃ |
|||
Humidity |
75℃, RH 95% |
