High Strength Integrated Welding Modular Fiber Optic Splice Tray Cassette Plate Plastic

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model FTB-T01
Kuantitas min Order 100PCS
Harga Negotiable
Kemasan rincian 1 pc / box
Waktu pengiriman 3-5 days
Syarat-syarat pembayaran T/T or western Union
Menyediakan kemampuan 50,000pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
material plastic width 30cm
capacity 12 fibers adapter SC FC LC ST E2000
Working temperature -40~+85 (℃) Fiber optic type single-mode, multimode
Cahaya Tinggi

serat optik kotak terminal

,

serat optik kotak persimpangan

Tinggalkan pesan
Deskripsi Produk

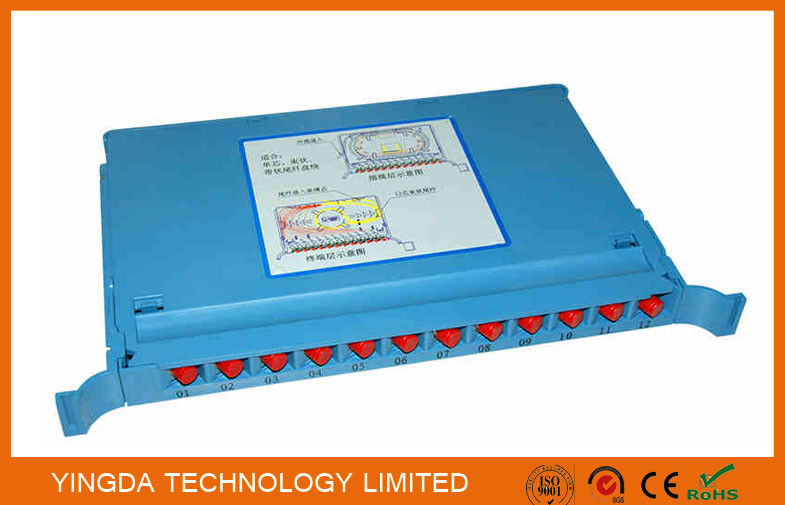

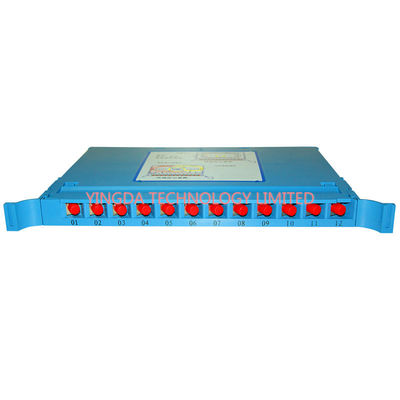

12 Cores Fiber Optic Integrated Welding Modular Tray Cassette Plate Plastic





Fiber optic welding splice tray is placed in all kinds of communication and electric power industries

boxes.Some part cable will fusion splice with fiber optic pigtails for scheduling, another part weld

directly with cable. Each single fiber can connect or use arbitratily.It is made of ABS material injection

molding, with flame retardant, high strength, anti-aging characteristics.



12 core as a unit/tray, the pigtail and cable buffer tube have separately plate space, hierarchical

management effectively protect the fiber not be damaged;



three layer structure, the lower layer is wiring plate, the middle is a fused plate, top plate is the tray

cover, welding and wiring integration, convenient operation



Application

  • Fiber welding(fusion splice) or branch
  • Cover can flip, overlay, expand capacity, easy and convenient to install and use.
  • Dimension: 180*213*25mm
  • Weight: 0.075 KG



Accessory:



1. 12Cores Bundle fiber optic Pigtails 1.5meters,0.9mm

2. SC FC fiber optic adapters
