Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO,SGS
Nomor model ADB-ST-RD
Kuantitas min Order 100 PCS
Harga Negotiable
Kemasan rincian 1 pc / bag or 10 pc/ blister box
Waktu pengiriman 3 days
Syarat-syarat pembayaran T/T or western Union
Menyediakan kemampuan 50,000pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
material Metal, Plastic house color black
shape round type bare fiber adaptor
weight 12g Fiber type single-mode
polish methold UPC insertion loss <0.2dB
Cahaya Tinggi

ftth fiber optic cable

,

FTTH tarik kabel

Tinggalkan pesan
Deskripsi Produk

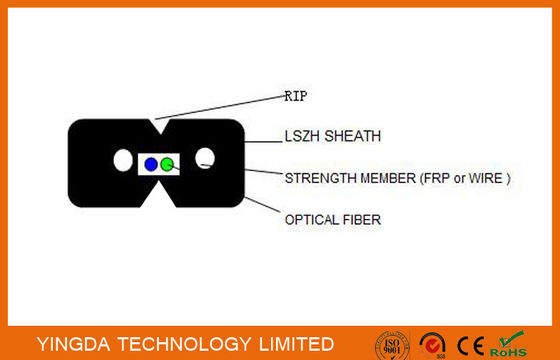

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH







Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 0

Description:



This specifications covers the optical fiber cable for laying in indoor installation.

The optical fiber meets the requirements of ETISALAT specifications No: FCS-10





Single mode optical fiber characteristic:(bare fiber)



Item

Value

Mode field diamter @1310nm

8.6±0.4μm

Cladding diameter

125±1μm

Core concentricity error

≤0.6μm

Claddding non-circularity

≤1.0%

Primary coating diameter

250±15μm

Coating-cladding concentricity error

≤12.5μm

Fiber curl radius

≥4m



Transmission characteristics: (bare fiber)



Item

Performance

Attenuation

1310nm
1550nm

≤0.40db/km
≤0.30db/km

Marco bending loss

30mm
10 tums at 1550nm

≤0.50db

Cut-off wavelength



≤1260nm

Chromatic dispersion

1310nm
1550nm

≤3.5ps/nm.km
≤18ps/nm.km

Zero dispersion wavelength



1300-1324nm

Zero dispersion slope



≤0.092ps/nm2.km



Approved by ETISALAT small bend standards

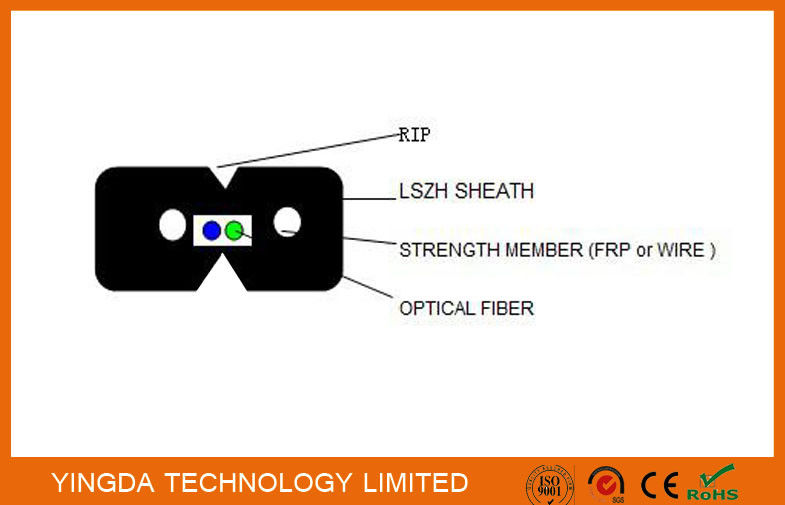

 Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 1



Packing & delivery

  1. Delivery in standard lengths of 1000 meters
  2. Customized lengths available
  3. Protect against harsh environmental conditions



Details

Item

Value

Fiber (core)

2,1

Cable diameter (mm)

3.1*2.0

Cable weight (kg/km)

Fiber color

1 red; 2 green





Order information:



Fiber count:

1core, 2core, 4core ...

Fiber type:

G.657A1,G.657A2

Cable diameter:

2.0x3.1mm

Strength member:

ARP/FRP, Steel

Cable weight

8kg/km

Jacket color:

White,Black

Application:

Indoor, outdoor

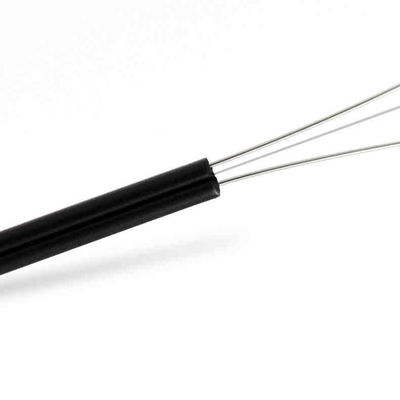

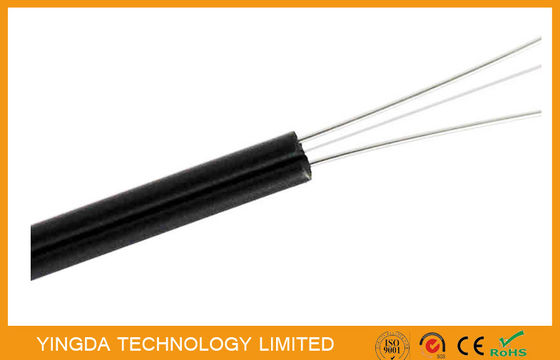

Indoor Figure -8 FTTH drop cable real photo:



White and Black color

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 2Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 3



Self-supporting FTTH drop cable  real photo:



Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 4Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 5
