PC Fiber Optic Splice Closure

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO,SGS
Nomor model H005
Kuantitas min Order 100 PCS
Harga Negotiable
Kemasan rincian 1pc / box, 10pcs/ carton box
Waktu pengiriman 5days after pay
Syarat-syarat pembayaran T/T or western Union
Menyediakan kemampuan 50,000pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
shape inline horizontal closure max capacity Bunchy: 192 (Cores); Ribbon:  432(Cores)
cable port 3in 3out cable diameter Φ7 - Φ23 mm
material PC splice tray qty max. 8 pcs
closure dimension 450x220x160 mm weight 4 kgs
carton qty 10pcs carton size 63*52*50mm
Cahaya Tinggi

fiber optic splice enclosure

,

fiber optic joint closure

Tinggalkan pesan
Deskripsi Produk

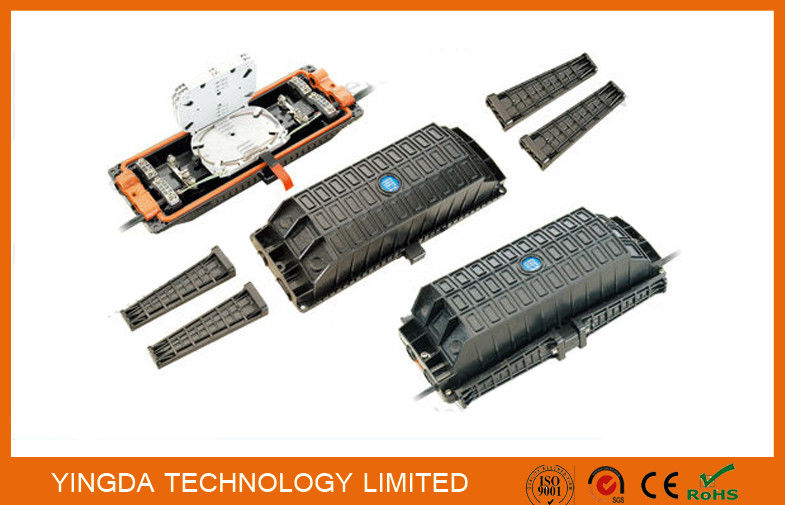

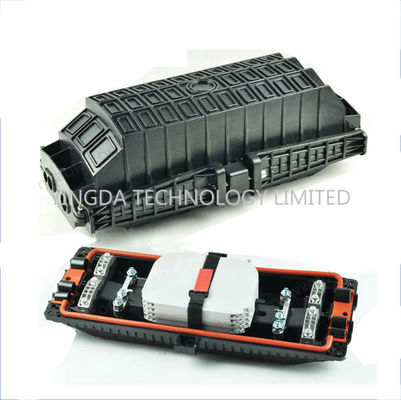

PC Fiber Optic Splice Closure 3in 3Out In-line Optical Fiber Enclosure





The closure casing is made of quality engineering plastics, and of good performance of anti-erosion

against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.



The mechanical  structure is reliable and has the performance of resisting wild environment and

intensive climate changes and  serious working environment. The protection grade reaches IP68.

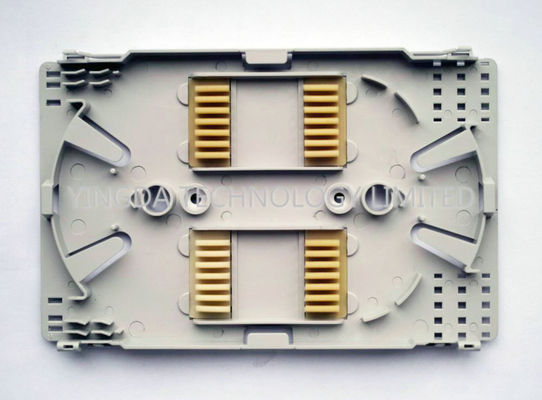

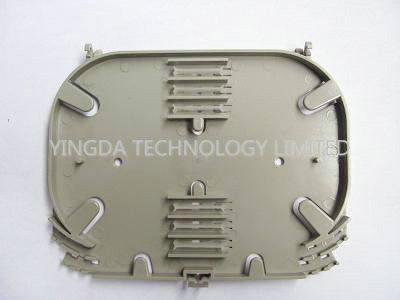

The closures are applicable to ribbon type optical cable and common optical cable. The splice trays

inside the closure are turnable like booklets, and have adequate curvature radius and space for

winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable

and fiber can be operated individually.



The closure is of small volume, big capacity and convenient maintenance.



The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.



The casing can  be opened repeatedly without air leakage. No special tools are required.

The operation is easy and simple.The air  valve is provided for the closure and used to check the

sealing performance.



Sell point:

  1. Dimension (L×W×H): 450×220×160 mm
  2. Cable ports:6 ports / 3in 3out
  3. Cable Diameter: Max φ23
  4. Max.Capacity (bunchy fiber): 192
  5. Core capacity per tray: 12 or 24
  6. Holds up to 192 fibers.



 Features

  • Easy to re-enter
  • Cable entry/exit ports
  • Pressure testing valve and earth deriving device
  • Intergrated seal, air tight and water proof
  • Ideal for cable repair
  • RoHS compliant
  • Can be used in through, branch or mid span splice locations



Application:

  •  aerial, underground, pipeline, handhole.



The ambient temperature ranges from -40 to 65℃.





Specification



Outside dimension (LxWxH)

450x220x110 (mm)

Weight (excluding outside box)

2750g-3200g

Number of inlet/outlet ports

3 (pieces) on each side (total 6 pieces)

Diameter of fiber cable

Φ8—Φ23 (mm)

Capacity of FOSC

Bunchy: 6—96 (Cores)

Ribbon: max. 216 (Cores)

Splice tray

Max. 4pcs

Splice tray capacity

Bunchy:6,12,24cores;Ribbon:3,6 pieces

Insert plate size

175x56x30(mm)

Body size

378x136 (mm)





Accessory List





No.

Name of accessories

Usage

1

Heat shrinkable

protective sleeve

Protecting fiber splices

2

Nylon tie

Fixing fiber with protective coat

3

Insulation tape

Enlarging diameter of fiber cable for easy fixing

4

Seal tape

Enlarging diameter of fiber  cable which fits in with seal fitting

5

Hanging hook

For aerial use

6

Earthing wire

Putting through between earthing devices

7

Abrasive cloth

Scratching fiber cable

8

Labeling paper

Labeling fiber

9

Special wrench

Fixing bolts, tightening nut of reinforced core

10

Measuring paper

To measure circle, of which its diameter is enlarged with seal tape

11

Buffer tube

Hitched to fibers and fixed with FOST, managing buffer

12

Desiccant

Put into FOSC before sealing for desiccating air.



PC Fiber Optic Splice Closure 0PC Fiber Optic Splice Closure 1PC Fiber Optic Splice Closure 2
