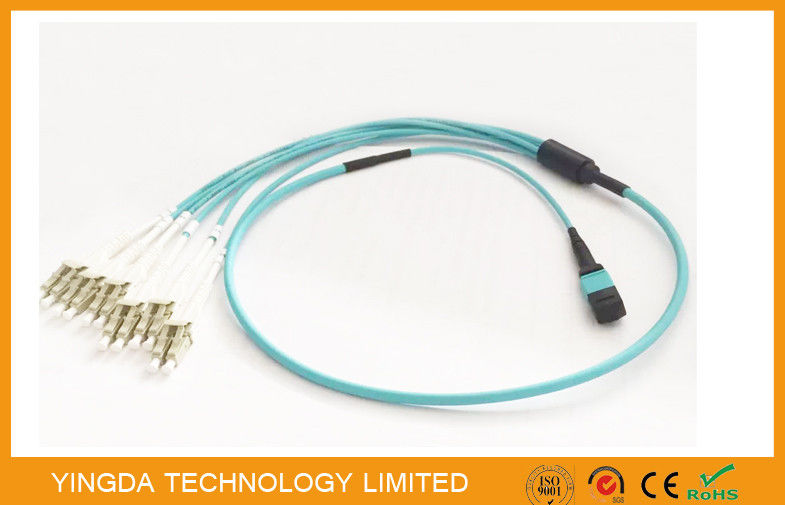

100G QSFP MPO MTP Cable

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO SGS ROHS
Nomor model MTPf-62LC-OM3-01
Kuantitas min Order 100 pcs
Harga negotiable
Kemasan rincian 1 pc/ box, 160 pcs/carton box
Waktu pengiriman 7days after payment
Syarat-syarat pembayaran Western Union, T/T
Menyediakan kemampuan 10,000 pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
connector MPO MTP male fiber type 10G OM3
Cable type bundle cable fiber count 12 Fiber - 6 duplex LC
Insertion loss <0.3dB package Vacuum packing
Cahaya Tinggi

MPO fanout cable

,

MPO patch cord

Tinggalkan pesan
Deskripsi Produk

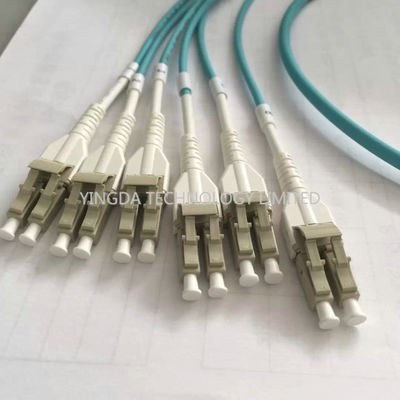

100G OM3-300 QSFP MPO MTP Cable With 6 x LC Duplex Uniboot Connector Aqua


MPO/MTP Fan out Assembly (Pre-terminated) allow for rapid deployment of multi-port patch field
connectivity in high-density.
Storage area network and data center LAN applications, ensuring sufficient use of horizontal and
vertical rack pathways through the use of small form factor cable.

Build with modular MPO/MTP connectivity and LC/SC/FC connectivity, these assemblies provide
compatibility, flexibility and system performance in high density LAN/SAN switch equipment
distribution area.

MTP/MPO Features and Benefits:

1. Utilize MPO Connectors - small Form Factor, 12Fibers or 24Fibers push/pull optical connectors.
2. Rapid Deployment - Application specific designs Tailor configuration and breakout construction
    to application requirements to minimize waste, optimize cable management, speed deployment,
    and improve flexibility and manageability for lower installation costs.

3. Factory terminated - Provides a quick-to-deploy, scalable solution to improve reliability
    and reduce installation time and cost.

4.100% tested (test data supplied) - Assures verified optical performance for improved
    network integrity.

5. High-density cable - Uses pathway space more efficiently to improve manageability and
    reduce installation costs.

6. Optimized Performance - Assemblies constructed with low loss MPO/MTP OECE proprietary
    MT polishing Provides low insertion loss and high return loss, minimizing variability for
    improved channel link loss performance.

7. Standards Compliance:

- Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP)
   or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating, compliant with Directive
   2002/95/EC (RoHS) and REACH SvHC.

- MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.

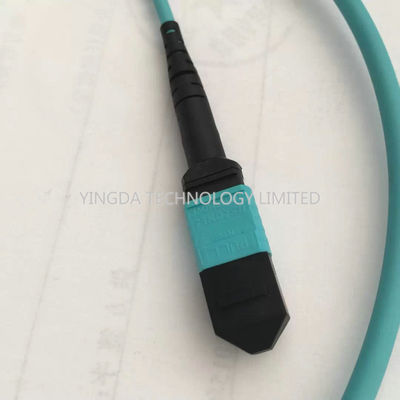

MPO Details

  • MPO patch cables are used to make the interconnections between the MPO cassettes
  • or connections to active equipment with MPO/MTP interface.
  • In cases where an MPO patch cord is connected (through an MPO coupler) to another
  • MPO patch cable, one of the two MPO connectors must be male (equipped with pins).
  • MPO patch cables are available in 3 different wire map configurations: Straight,
  • Total Flipped or Pair Flipped MPO patch cables are available in multi-mode and
  • single-mode fiber cable.


Connectors Specification


Item

SM

 MM

Fiber count

8,12,24 Core

Polish

PC,APC

PC

Housing colour

Standard(green),Elite(yellow)

Standard(beige),Elite(aqua)

Insertion loss

standard

≤0.7dB

≤0.5dB

Elite low loss

≤0.35dB

≤0.3dB

Return loss

PC≥50dB; APC≥60dB

≥30dB;

Durability (500times)

≤0.2dB

Test wavelength

1310/1550nm

850x1310nm


Fiber Cable specification


Fiber type

OS2,OM1,OM2,OM3,OM4

Fiber count

8, 12, 24, 48, 72, 96 Cores

Outer diameter

3.0mm ( 8 / 12Core ), 5.5mm ( 24cores ) or customized

Outer jacket colour

OS2(yellow), OM2(Orange), OM3(aqua), OM4(aqua), or customized

Outer jacket material

LSZH, OFNP, OFNR

Tensile strength

500N

Operating temperature

-20 to + 70°C

Storage temperature

-40 to + 70°C

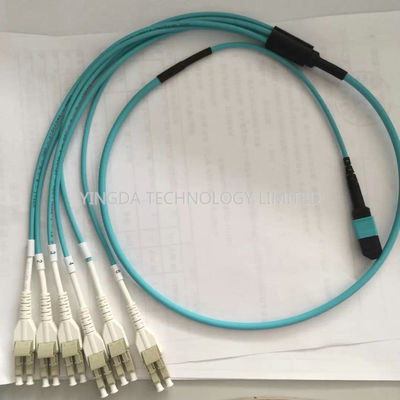

Assembly cable structure:
100G QSFP MPO MTP Cable 0

Order information


P/N

Description

MPOm-62LC-S62-U

MPO Fan-out patch cord, OS2 (G652D),
MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot

MPOm-62LC-S67U

MPO Fan-out patch cord, SM (G655A),
MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot

MPOm-62LC-OM1-U

MPO Fan-out patch cord, OM2 (50/125um),
MPO Male-6xDuplex LC UPC 1m Orange uni-boot

MPOm-62LC-OM2-U

MPO Fan-out patch cord, OM1 (62.5/125um),
MPO Male-6xDuplex LC UPC 1m Orange uni-boot

MPOm-62LC-OM3-U

MPO Fan-out patch cord, OM3 (50/125um),
MPO Male-6xDuplex LC UPC 1m Orange uni-boot

MPOm-62LC-OM4-U

MPO Fan-out patch cord, OM4
MPO Male-6xDuplex LC UPC 1m Orange uni-boot



100G QSFP MPO MTP Cable 1100G QSFP MPO MTP Cable 2
