1 * 8 Luar Kabel Serat Kotak Bersama, Kotak Serat Splitter Inline Dinding Serat Optik
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Masukan kabel | 6 port putaran 8-20mm | Diameter kabel | 2:13 mm; 2:16 mm; 2:20 mm |
|---|---|---|---|
| Output Kabel | 8 pcs kabel drop 2 * stopkontak 3mm | warna | Hitam |
| Dimensi | 295 * 202 * 81 mm | metode instalasi | wall mount, tiang gunung, lubang, tanah, udara |
| splitter | max. 1x8 splitter modul jenis mini 0.9mm | Adaptor | max. 8 pcs SC adapter |
| Kapasitas Max | 8 Core | ||
| Cahaya Tinggi | kotak sambungan kabel serat optik,kotak sambungan kabel serat optik |
||
Deskripsi Produk
Inline Fiber Optic Splitter Box Closure, 1*8 Outdoor Splitter Closure
Description
Optical fiber splice closure (FOSC), also called fiber optic junction box or enclosures.
It is the cable terminated access point, then connect with optical switch through the
optical fiber jumper.
The fiber optic enclosure can resist the nature of heat and cold, light, oxygen and microbial
material aging, and has excellent mechanical strength. The solid closure housing and main
components are able to bear the worst environmental change, also it is flame retardant,
waterproof function, so as t protect the cable from the vibration, impact, stretch and twist.
Features
- Advanced internal structure design.
- Easy to re-enter, it never requires re-entry tool it.
- The closure is spacious enough for winding and storing fibers.
- Fiber Optic Splice Trays are design in SLIDE-IN-LOCK and its opening angle is about 90°.
- The curved diameter meets with international standard.
- Easy and fast to increase and reduce splice tray.
- Straight-through for un-cutted and branching for cutting the fiber.
- There are 2*3 drop cable elements to be chosen Max.16 pcs drop cable input/output.
- It can be installed Max. one 1:8 block-less PLC splitter.
- Lay adapters suit for FTTH and easy to operate.
Applications
- Suitable for bunchy fibers
- Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
- FTTH optical fiber distribution
Specification
|
Model |
FOSC-SH01 (single fiber) |
|
Max capacity |
8F |
|
Splice tray capacity |
8F |
|
Splitter tray (Box type PLC) |
1:8 PLC splitter |
|
Adapter qty |
8 SC |
|
Cable Diameter |
2round port:13mm 2round port:16mm 2round ports:20mm |

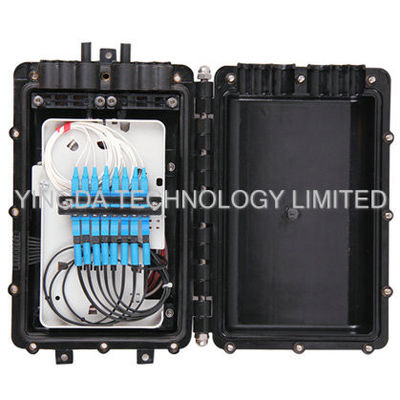

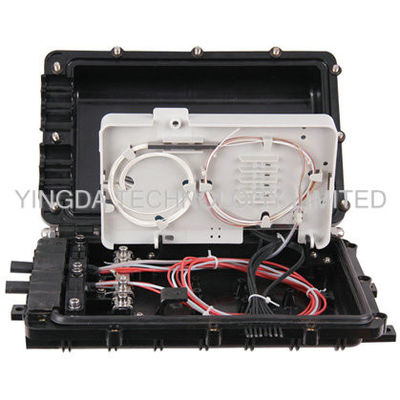

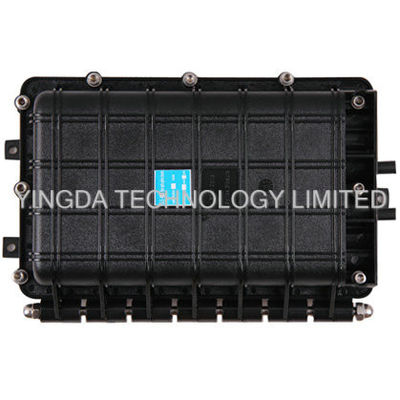

Product Structure:
More product show:
