Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xcolor | white | material | plastic PC / ABS |
---|---|---|---|
connector | SC | fiber count | 2 core single fiber |
size | 86*86*23mm | cable port | 2 pcs |
Cahaya Tinggi | serat optik kotak terminal,serat optik distribusi kotak |
Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC
Sell point:
- ABS plastic, fire-retartant material can be choose
- each with plastic bag,400pcs in a carton box.
- can use SC LC FC ST
- 1pc sample is for free
- adaptor and pigtail can be installed on request
- customer logo, customer label, customer shipping mark available
Description

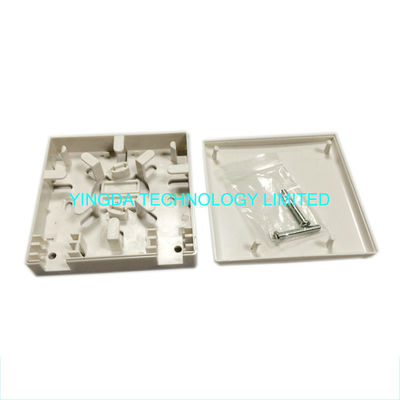

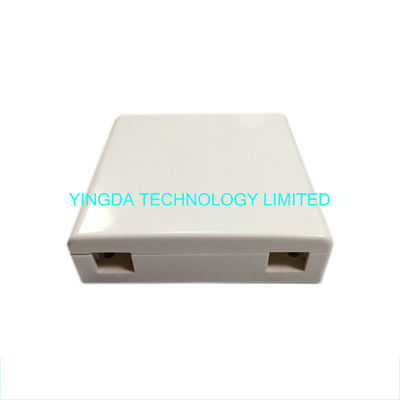

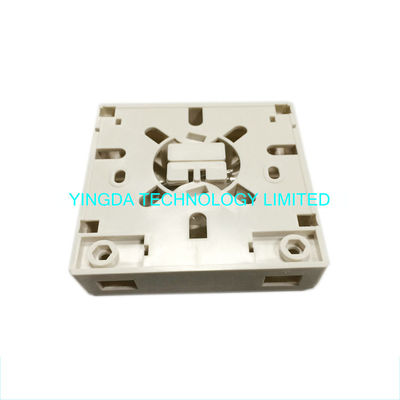

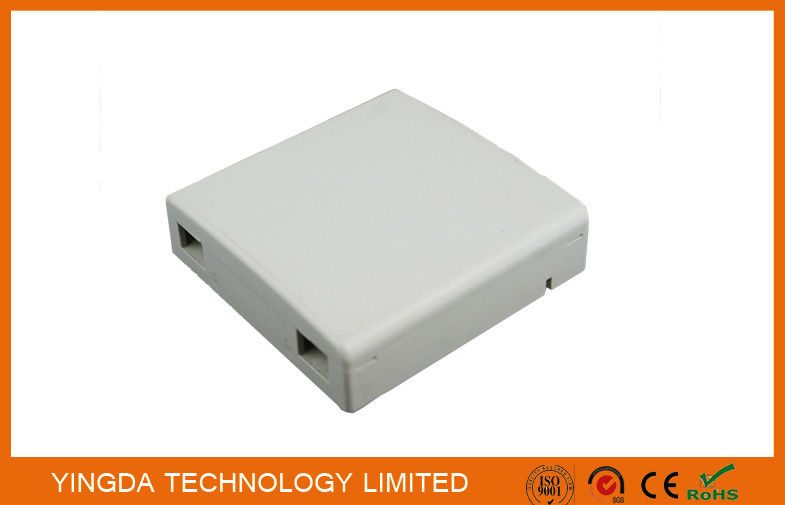

86 Type fiber optic customer use terminal box body cover clip design greatly reduce the installation
difficulty. It is thin box body,can match with other electrical junction box panel and is suitable for light
and dark fiber optic cable wiring, also widely used in FTTH, FTTO, FTTD and other occasions.
Features:
- Embedded box frame, easy to install
- With the FC rectangle fiber adapter products, LC, SC can be used
- The large diameter cable rolling poles fully protect the fiber inside.
- The dimension conforms to 86 type box standard.
- SC simplex adapter or LC duplex adapter installed, used in the work area subsystem.
- With dust-proof device to prevent dust entering
- Equipped with identification bar, convenient numbering management and maintenance
- Product material: high quality ABS (flame retardant) material
Specification:
Cable (mm) |
3.1 x 2.0 Drop cable or indoor cable |
Fiber diameter (μm) |
125 ( 652 & 657 ) |
Cladding diameter (μm) |
250 & 900 |
Fiber mode |
Single mode, multimode |
Tensile strength (N) |
>50 |
Operating temperature (℃) |
-40~+75 |
adapter |
SC,LC,DLC |
Insertion loss (dB) |
≤ 0.2(1310nm & 1550nm) |
Working wavelength (nm) |
1310, 1550 |
Sizes (mm) |
86×27×86 |
