Pigtails SC APC Singlemode Simplex 3 M 900 um PVC Yellow Fiber Optic Cable

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO SGS ROHS
Nomor model FPC-SCA-OS1-09-01-Y
Kuantitas min Order 500 pcs
Harga negotiable
Kemasan rincian 1 pc/ bag, 1500pcs / carton box
Waktu pengiriman 7days after payment
Syarat-syarat pembayaran Western Union, T/T
Menyediakan kemampuan 200,000 pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
connector SC APC fiber count simplex
insertion loss < 0.2 dB fiber type 9/125 um G652D
package plastic bag cable diameter 0.9mm
jacket PVC cable jacket connector color yellow
temperature -40~+85°C customer logo yes
wavelength 1310nm, 1550nm
Cahaya Tinggi

pigtail serat optik

,

pita kuncir

Tinggalkan pesan
Deskripsi Produk

Pigtails SC APC Singlemode Simplex 3 M 900 um PVC Yellow Fiber Optic Cable



SC  is short for square card type, SC fIber optic connector can plug directly, easy to use, but also easy to drop out.



SC APC Fiber Optic Pigtail is a component installed in a fiber optic transmission system that reduce the power

in the optical signal. It is often used to limit the optical power received by the photo-detector to within the limits

of the optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.

It is used in the fiber transmission system .





Features

  • Low Insertion Loss
  • High Return Loss
  • Good Repeat ability
  • Good Exchange ability
  • High Temperature Stability
  • Comply with YD/T 1272.4-2007 specification
  • 8 Degree Angled physical contact polishing (APC)



Specification



Item

Single mode (nomomodo)

Multimode (Multimodo)

Wavelength

1310&1550nm

850&1300nm

Fiber type

9/125um

62.5/125um,50/125um,50/125um

OM3,50/125um OM4

Connector type

SC ST FC LC MU MTRJ E2000 DIN D4 ESCON

Insertion loss on average

≤0.3dB

≤0.3dB

Max. insertion loss

≤0.5dB

≤0.5dB

Return loss

UPC≥55dB;APC≥65dB

≥20dB

Operating temperature

-40~+75℃

Storage temperature

-40~+85℃



Application

  1. CATV network
  2. Optical fiber communication systems
  3. Optical fiber data transmission
  4. Building network access
  5. Cabling system, ODF
  6. FTTX networks



Ordering Information


LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH

 ①   ②      ③                ④         ⑤         ⑥   ⑦



① Connector type: SC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

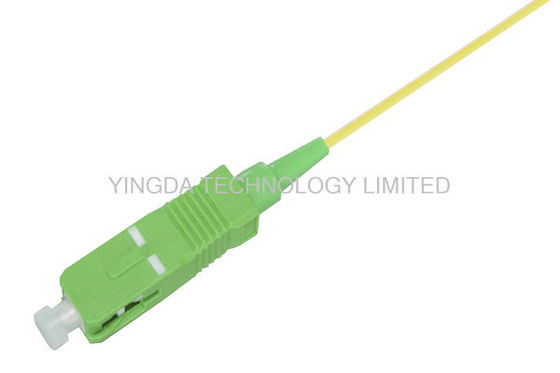

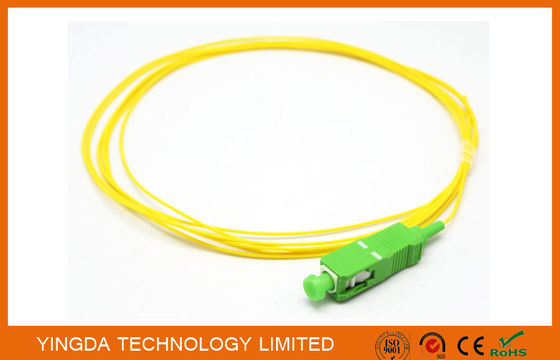

Pigtails SC APC Singlemode Simplex 3 M 900 um PVC Yellow Fiber Optic Cable 0Pigtails SC APC Singlemode Simplex 3 M 900 um PVC Yellow Fiber Optic Cable 1
