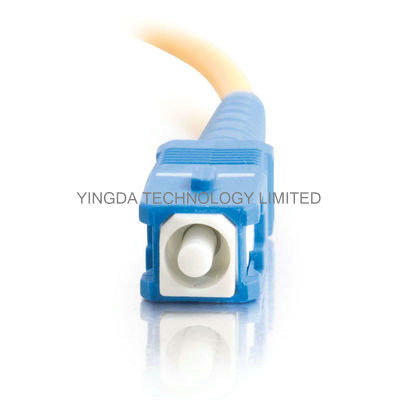

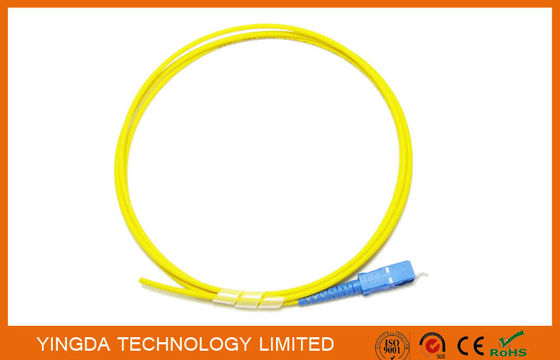

Optical Pigtail SC UPC SM Simplex 3mm 1Meter Yellow Optical Cable LSZH G.652D
Tempat asal | Cina |
---|---|
Nama merek | YINGDA |
Sertifikasi | ISO SGS ROHS |
Nomor model | FPC-SC-OS2-30-1.5-Y |
Kuantitas min Order | 500 pcs |
Harga | negotiable |
Kemasan rincian | 1 pc/ bag, 1500pcs / carton box |
Waktu pengiriman | 7days after payment |
Syarat-syarat pembayaran | Western Union, T/T |
Menyediakan kemampuan | 200,000 pcs per month |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xconnector | SC UPC | fiber count | simplex |
---|---|---|---|
insertion loss | < 0.2 dB | fiber type | 9/125 um G652D |
package | plastic bag | cable diameter | 3.0MM |
jacket | LSZH | cable color | yellow |
temperature | -40~+85°C | customer logo | yes |
wavelength | 1310nm, 1550nm | ||
Cahaya Tinggi | pigtail serat optik,pita kuncir |
Optical Pigtails SC UPC SM Simplex 3mm 1Meter Yellow Optical Cable LSZH G.652D
SC is short for square card, it can plug directly,easy to use, but also easy to drop out. SC Fiber Optic
Pigtail is a component installed in a fiber optic transmission system that reduce the power in the optical
signal. It is often used to limit the optical power received by the photo-detector to within the limits of the
optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.
It is used in the fiber transmission system .
Features
- Low Insertion Loss
- High Return Loss
- Good Exchange ability
- Good Repeat ability
- High Temperature Stability
- 8 Degree Angled physical contact polishing (APC)
- Comply with YD/T 1272.4-2007 specification
Application
- CATV network
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX networks
Specification
Connector type |
LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC. MU/AP Duplex MTRJ/Female, MTRJ/Male |
Fiber Type |
9/125um SMF-28 or equivalent (Single mode) OS1, (Multi-mode) 50/125um OM1, 62.5/125um OM2 & 50/125um, 10G OM3, OM4 |
Cable Type |
Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
Insertion Loss |
≤ 0.1dB (For Single mode Master) ≤ 0.25dB (For Single mode Standard) ≤ 0.25dB (For Multi-mode) Tested by JDS RM 3750 |
Return Loss (For Single mode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
Repeat ability |
±0.1dB |
Operating Temperature |
-40°C to 85°C |
Geometry Requirement (For Single mode) |
Ferrule End face Radius 7mm ≤ R ≤ 12mm (For APC); 10mm ≤ R ≤ 25mm (For Standard); Apex Offset ≤ 30 μm (For Master); Apex Offset ≤ 50 μm (For Standard); Undercut -50nm ≤ U ≤ 50nm; Tested by DORC ZX-1 |
Ordering Information
SC / PC SM 9/125 SIMPLEX 3.0mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: SC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
