12 Port SC Complete Assembly Load Fiber Optic Patch Panel 19” ODF Black

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model GPRP-SC12
Kuantitas min Order 50 pcs
Harga Negotiable
Kemasan rincian 1 pc / box, 5 pcs / carton box

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
material cold rolled steel thickness 0.8mm,1.0mm, 1.2mm
capacity 12 cores connector port SC simplex
application optical distribution frame installatino method rack mounted
color white, black dimension 480*200*1U mm
Cahaya Tinggi

rack mount odf

,

frame distribusi optik

Tinggalkan pesan
Deskripsi Produk

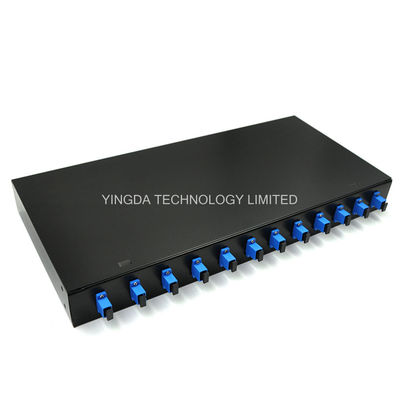

12 Port SC Completed Assembly Loaded Fiber Optic Patch Panel 19” ODF Black





Description



Rack mount patch panel is mainly used for connection and storage between optical fiber cable and

pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

 is convenient.



Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U. Adapter panel can

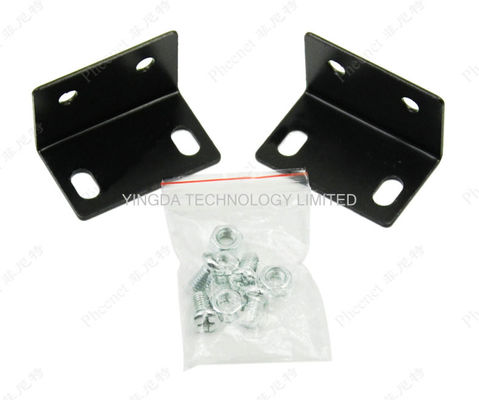

 be simplex or duplex, and have ears to install in rack. It is smart design to supply firm protection

for optical cable terminal connection and optical fiber adapter installation. It is a combine of termi-

nation, protection, connection, management of fiber optic cables.

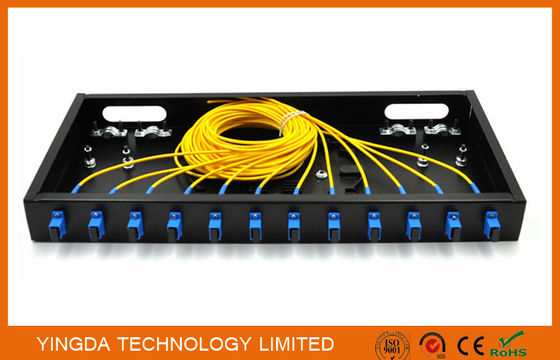

This rack mount patch panel have upper cover, when use, should un-screw the screws top side,

then take over the cover then you can manage the cable and fibers inside. Cable come inside

from back inlets, and output is adapter outlet.





Features

  • Flexible standard 19” cabinet installation
  • Complete front operations with double layers
  • Sufficient spooling area for redundant fibers
  • Spooling space available for fibers and pigtails to enhance protection for the fibers,
  • pigtails and connections
  • Adapter mounting bar available to hold multiple types of adapters like FC SC ST and LC
  • Complete bending radii protection


 Technical specification:



ambient temperature

-25℃~+40℃

relative humidity

≤85%(+30℃)

atmospheric pressure

70kPa~106kPa

Insulation resistance

fiber optic cable terminal and cable metal strength member,

fiber optic cable metal components itself, fiber optic cable

metal components and the ground, the insulation resistance

should > 2 x 104MΩ.

Dielectric strength

fiber optic cable terminal and cable metal strength member,

 fiber optic cable metal components itself, fiber optic cable

metal components and the ground, under 15kV voltage for

1min without breakdown, no arcing phenomena.



Order information



Model

Dimension (mm)

Max Capacity (cores)

GPRP-SC12

480×200×1U

12

GPRP-SC24

480×200×1U

24

GPRP-SC48

480×200×2U

48

GPRP-FC12

480×200×1U

12

GPRP-FC24

480×200×1U

24

GPRP-FC48

480×200×2U

48

GPRP-ST12

480×200×1U

12

GPRP-ST24

480×200×1U

24

GPRP-ST48

480×200×2U

48



When order, pls tell us below details:



1. Full complete assembly (loaded) with adapter and pigtail OR empty panel optional

2. Box color: Black , White

3. adapter port is 1 line or 2line
