PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO SGS CE ROHS
Nomor model PDLC patch cord
Kuantitas min Order 10pcs
Harga NEGOTIABLE
Kemasan rincian 1pc/pack

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
application LTE,FTTA cable outoor waterproof
connector LC fiber count 2 cores
logo OEM label OEM
Cahaya Tinggi

fiber optic patch cable

,

fiber optic jumper

Tinggalkan pesan
Deskripsi Produk



 PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use



DLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC

 Connectors, and the outer housing with metal protective device. The connecting is safe and reliable.

Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station,

and the outdoor waterproof condition.



1. GYFJH cable

PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use 0

1.1 Structure

PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use 1

1.2 Features



The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber

 feeder etc;

1. Standard Duplex LC connector, well connected with standard LC adaptor

2. Available Single mode and Multimode

3. IP67 protection, salt-mist proof, humidity proof, dust proof

4. Low insertion/return loss, steady optical transmitting.

5. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.



1.3 Applications



1. Widely used in FTTA & FTTH

2. Used for 3G 4G base station

3. BBU, RRU, RRH, LTE



1.4 Cable Parameters



Fiber

count

Cable

dimension

Cable

weight

Tensile/N

Crush N/100mm

Min. Bend

radius/mm

Range of

 temperature/°C

Mm

Kg/km

Long

 term

Short

term

Long

 term

Short

term

Dynamic

Static

2

7

42.3

200

400

1100

2200

20D

10D

-100

Note:

1. All the values in the table,which are reference only, are subject to change without notice.

2. The cable dimension and weight are subject to the simplex cable of 2.0mm outer diameter;

3. D is outer diameter of the round cable.



1.5 Connector Specification



Item

Parameter

Connector

DLC/UPC, PDLC

Insertion loss

≤0.3dB

Return loss

≥50dB

Fiber mode

Single mode,9/125um

Operating wavelength

1310/1550nm

Test wavelength

1310/1550nm

Repeat ability

≤0.1dB

Interchange ability

≤0.2dB

Durability

≤0.2dB

Fiber length

1m,2m.. Any length optional

Length and tolerance

10cm

Operating temperature

-40~+85°C

Storage temperature

-40~+85°C

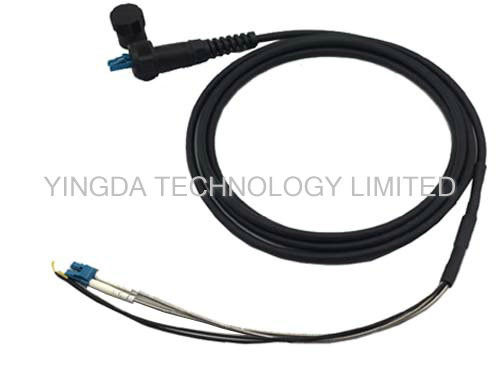

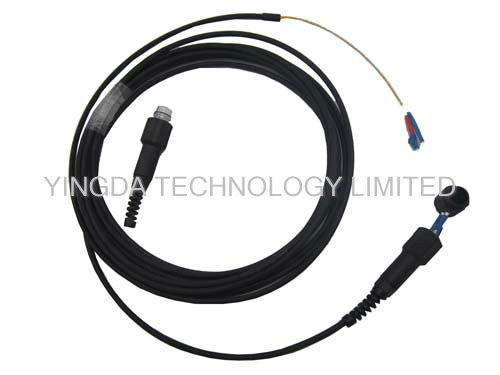

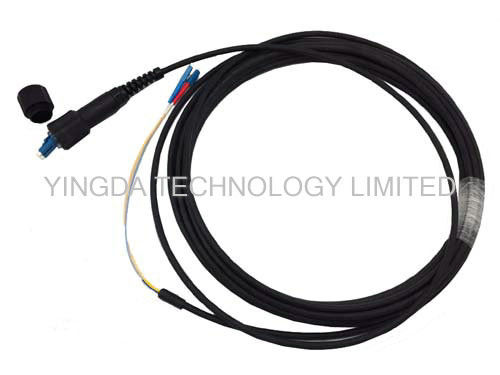

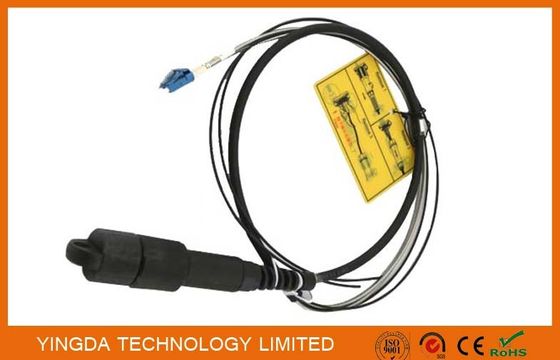

PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use 2PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use 3PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use 4
