Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Application | FTTH indoor wiring | Connector | SC / UPC |
|---|---|---|---|
| fiber count | 1 core | fiber type | G657A1 or G657A2 |
| Cable sheath | LSZH | Cable length | 1 meter |
| Cable color | white | insertion loss | <0.3dB |
| Cable strength member | FRP (Fiber Reinforced Polymer/Plastic) | drop cable diameter | 2*3.0mm |
| Cahaya Tinggi | fiber optic patch cable,fiber optic jumper |
||
Deskripsi Produk

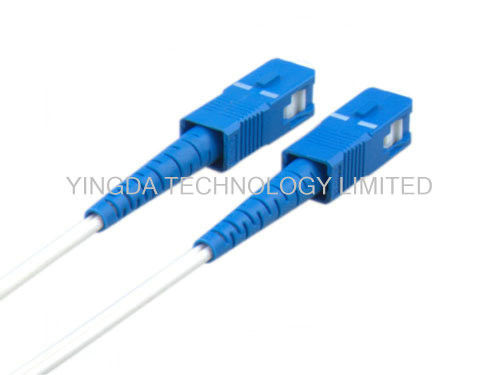

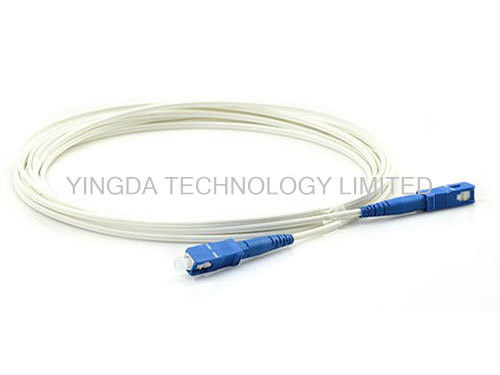

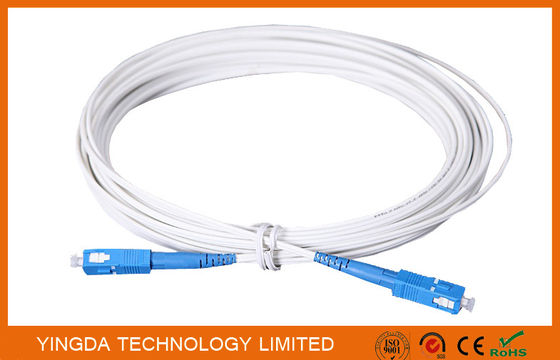

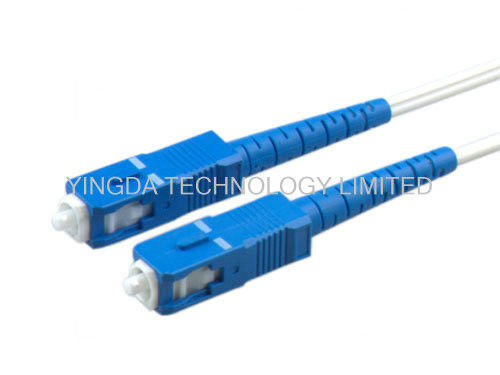

Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member
FTTH SC/PC patch cord is FTTH cable terminated bothh end with SC connector. Also FC/ST/LC connector can be
choosed as customer request. Fiber is avaibale with G652D or G657A. Cable Jacket can optional as white or balck.
Features
- Low-bend-sensitivity fiber,high bandwidth,excellent communication transmission property;
- Two parallel FRP strength members ensure good performance of crush resistance
- Simple structure, light weight and high practicability;
- Novel flute design, easily strip and splice, simplify the installation and maintenance;
- Low smoke, zero halogen and flame retardant sheath.
Application
- Local Area Networks (LANs) and Wide Area Networks (WANs)
- Fiber Optic CATV, FTTH, FTTB, FTTP etc
- Fiber Optic telecommunication systems
- Transmission Mode (ATM)
- Fiber Optic Backbone
- Military Instrumentation
Specification
|
Item |
SC FC ST LC drop cable PATCH CORD |
||
|
IL(dB) |
≤0.2 |
Max IL(dB) |
≤0.3 |
|
Working temperature(°C) |
-40~+80 |
Temperature cycle(°C) |
-40~+75 |
|
Storage temperature(°C) |
-40~+85 |
Interchangeability (dB) |
≤0.2 |
|
Plug times |
1000 times |
Repeat ability(dB) |
≤0.1 |
|
RL (dB) |
≥45 ≥50 ≥60 |
Immersion |
Temperature 43°C, PH5.5 for 7days |
Delivery Length:
1-300METERS / PACK
Order information
FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
|
FHPC |
Connector type
|
Fiber count |
Cable type |
Strength member |
Fiber type |
Cable color |
Cable Length |
|
FH=ftth |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Pc=patch cord |
SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... |
01=1core 02=2core 04=4core .... |
F8=Figure 8 SF=self-supporting |
F=FRP S=steel |
5D=G.652D A1=G.657A1 A2=G.657A2
|
W=white B=Black Y=yellow |
01=1m 02=2m ... 10=10m ... |
