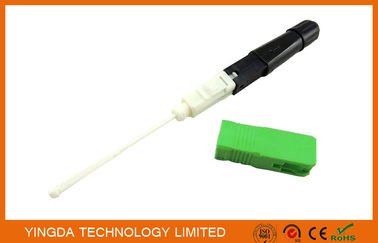

SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm
| Tempat asal | Cina |
|---|---|
| Nama merek | YINGDA |
| Sertifikasi | ISO |
| Nomor model | FS-SCA-09-09G |
| Kuantitas min Order | 100 PCS |
| Harga | Negotiable |
| Kemasan rincian | 5 pieces or 10pcs / blister box |
| Waktu pengiriman | 5 working days after got payment |
| Syarat-syarat pembayaran | T/T or western Union |
| Menyediakan kemampuan | 500,000pcs per month |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| application | FTTH, LAN, ODF | connector type | SC / APC |
|---|---|---|---|
| fiber type | SMF-28e | cable type | single mode 9/125um |
| cable diameter | 0.9mm | conneector house color | blue |
| insertion loss | max. <0.5dB, Typical<0.3dB | return loss | ≥65dB |
| Cahaya Tinggi | quick assembly connector,FTTH connector |
||
Deskripsi Produk
SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm
Description
SC/APC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point inside
the connector end, equivalently eliminate the pigtails when splicing.The advantage is no need
additional protection after splice, such as splice tray,splice closure,distribution box. In contract
to the design of mechanical splice connector, it save V-groove mechanical connector aintenance
and operation cost and durable, which overturns the concept that high cost of splice machine
and do not apply to FTTH construction.
Application
- FTTH optic fiber terminal connection
- LAN network
- Reformation of ODF and the new patch cord of ODF on site.
Features
- Low operation cost, high efficiency
- Quickly achieve the on-site termination connection
- Easy operation or use
- Pressure welding parts adopt new unique structure design
- installation without glue injectino, no grinding, no consumables
- High installation quality, high success rate and installation fast, etc
- Easy to carry
- Accurate mechanical dimensions
- All materials conforms to ROHS
Specification
|
Item |
Parameter |
|
Cable |
0.9,20,3.0mm cable or drop cable |
|
Fiber diameter |
125um G657A1 bare fiber) |
|
Tight buffer diameter |
250um |
|
Fiber type |
Single mode OS1 9/125um |
|
Insertion loss |
≤0.3dB |
|
Return loss |
≤-50dB UPC, ≤-65dB APC |
|
Bare fiber solid tightness |
＞250g |
|
Working temperature |
-40℃-+80℃ |
|
Tensible strength |
60N(5kgs for 2mins) |
|
Drop test |
4 meters high cement floor direction at a time,in total 3times |
Order information
FS-XXX-XX-XXX
1- 2 -34
|
FS= fusion splice |
1 |
2 |
3 |
4 |
|
Connector type |
Fiber inside |
Applicable cable diameter |
House color |
|
|
SCU=SC/UPC SCA=SC/APC FCU=FC/UPC |
09=0.9mm 25=250um bare fiber |
09=0.9mm 20=2.0mm 30=3.0mm |
B=blue B=black G=green |
Fusion Splice-on Connector Instruction Steps
1. Preparation
2. Put heat-shrink tube housing and nut through into the fiber cable
3. Use flat-fiber stripper to strip the covering about 45mm
4. Use the fiber stripper to strip the fiber coating layer ad clean the fiber ,then place the optial fiber to the holder.
5. Cut the fiber by fiber cleaver
6. Place the assembled holder into the fusion splice machine
7. Strip the 0.9mm fiber coating layer
8. Clean the optical fiber and put it into the holder of fusion splicer machine
9. Cut the fiber by fiber cleaver
10. Put the holder into the fusion splicer machine
11. After the two holder tools ready, close the fusion machine,start fusion
12. After fusing,open the machine and take out the whole spliced-connector carefully
13. Insert the heat-shrink tube to the tail of the spliced-connector carefully, then put the whole spliced connector into the fusion machine and start heating up
14. Remove the connector from fusion machine after about 90s heating, and then cooling down for about 5s to
10s.
15. Complete assembly
* Please use the customized FTTH melting machine
* Recommended consumable:
Keep a supply of the following items
- Denatured alcohol
- Lint-free tissues
- Cotton swab
