SC / APC Quick Assembly Connector Embedded Field Installable Fiber Optic Connector Green

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model FIC-SC-APC-23B
Kuantitas min Order 100 PCS
Harga Negotiable
Kemasan rincian 5pcs / blister box,1000pcs / carton box
Waktu pengiriman 3-5 working days after get payment
Syarat-syarat pembayaran T/T or western Union
Menyediakan kemampuan 10,000pcs per day

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
fiber type SMF-28e corning fiber cable type drop cable or indoor cable
connector SC/APC cable mode single mode OS1
Connector house GREEN insertion loss <0.3dB
Tools cotton, alcohol,fiber cleaver application FTTH
user manual English sample ok
Cahaya Tinggi

quick assembly connector

,

FTTH connector

Tinggalkan pesan
Deskripsi Produk

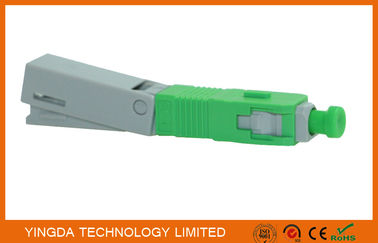

SC / APC Quick Assembly Connector Embedded Field Installable Fiber Optic Connector Green



Sell Point:

  • 1000% test in house before delivery
  • specially use for drop cable
  • each box with english user manual
  • SC LC FC ST can be choosed
  • Singlemode, multimode both ok.
  • Productivity:10,000 pcs / day



Description



Field Assembly Connector (Fast Connector) is designed for simple and fast field termination of single

fibers, without the additional assembling tools. The heart of the Quick/ fast connector is a pre-polished

ferrule and a mechanical splice inside the connector body. They are widely usedin FTTx, Connecting up

Renovation of Computer/controlling Room applications. The installation process takes about two minutes,

and the connector during the installation process does not require any adhesive and curing process.



The pre-embedded optical fiber and the core end face for the fast connector are designed to guarantee

the perfect quality of ceramic ferrule end face, effectively protect the user equipment interface damage,

and reduce the connection loss.



Features

  1. Can be used as a single connector and attenuator
  2. Embedded optical fiber and end face pre-grinding,no need polish on site
  3. On-site installation, quick connection, easy operation
  4. No need glue, grinding or electrical tools, a kind of cold access
  5. High performance and reliability, convenient installation
  6. Mechanical and environmental performance in line with GR-326-CORE standard.



 Specification



Applicable for

Drop cable.indoor cable

Optical fiber diameter

125um(G657a&G657A2)

Tight butter diameter

250um

Fiber mode

Single mode

Operation time

About 60s (no fiber cut)

Insertion loss

≤0.5dB (1310/1550nm), special≤0.3dB

Return loss

≤-40dB

Fastening strength of naked fiber

5N

Fastening strength of naked fiber holder

10N

Tensile strength

50N

Working temperature

+40~+75°C

On-line tensile strength(20N)

IL≤0.5dB  RL≤5dB

Mechanical durability(500times)

IL≤0.5dB  RL≤5dB

Drop-off test(drop-off height 4m,once per direction,totally 3times)

IL≤0.5dB  RL≤5dB



Application

  • Fiber optic cable distribution frame
  • Optical fiber network equipment
  • Fiber to the home
  • Cable television network



Order information

FIC-XX-XXX-XX-XX



FIC=filed

installable

connector

1

2

3

4

5

Connector

type

Polish

mode

Fiber type

Applicable

cable

House

color

SC

FC

SC

LC

ST

UPC

APC

SM=Single mode

MM=Multi mode

09=0.9mm

20=2.0mm

30=3.0mm

23=2.0*3.1mm

drop cable

B=Blue

B=black

G=green
