Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimensi

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model GJS-2001
Kuantitas min Order 50PCS
Harga Negotiable
Kemasan rincian 1pc / box, 6pcs / carton box
Waktu pengiriman 7days after get payment
Syarat-syarat pembayaran T/T, MoneyGram, Western Union

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Bahan PC warna Hitam
Segel segel mekanis port kabel 4 pprts
Diameter kabel 21mm-40mm PLC Splitter 1x16, 1x8, 1x4, 1x2 splitter PLC telanjang
Adaptor SC maks. 18 potong Dimensi 510 * 218mm
model pelanggan Oke Sampel Oke
Cahaya Tinggi

kotak sambungan kabel serat optik

,

kotak sambungan kabel serat optik

Tinggalkan pesan
Deskripsi Produk

Fiber Optic Splice Closure PLC Splitter 1x8 1x16, 48 Cores Fiber Optic Splice Enclosure Dome Mechanical





Model: GJS-2001



Gjs-2001 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation

of main optical cables and drop cables with different diameters.



Features:

  1. The closure adopts mechanical sealing structure. There is one oval shaped cable port entrances in base. The big entrance is used for the sealing of uncut straight-through fiber cable, the small ports are used for branch fiber cable and drop cable.
  2. To adopt engineering PC plastic with high-strength to make the closure has longer life time and excellent sealing performance.
  3. It can be installed one 1:16 blockless PLC splitter in max. One 1:16 or two 1:8 bare PLC splitter.
  4. There are different drop cable elements to be chosen (Φ5,2*3). Max. 18pcs drop cable input/output (special type Can be customized).
  5. The patented sealing structure keep good sealing performance after re-entry and re-using.
  6. It could save the installation time and improve work efficiently.



Applications:

  • Suitable for bunchy & ribbon fibers
  • Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
  • FTTH optical fiber distribution



Specifications



Type Splice Tray Capacity Wiring mdule Qty & Max. Qty Splitter Tray Max. Type of Adaptor & Max. Qty Max. Capacity Dimension
GJS-2001 I(Bunchy) 5 pcs (12-24f per tray) None 1 None 120F 510*218mm
GJS-2001 II(Bunchy) 2 pcs (12-24f per tray) 1 1 SC 18 pcs 48F 510*218mm



More pictures:



Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimensi 0

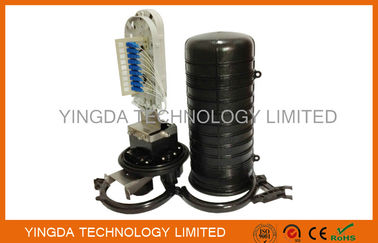

Full Overview of GJS-2001 cable terminatoin box with SC adapter panel, 1x8 PLC splitter SC connectors, dome (vertical) type, mechanical sealing, PC material

Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimensi 1

top view of the splice closure GJS-2001, total closed,with good sealing, and high strength PC material



Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimensi 2

BOTTOM BASE view of the splice closure GJS-2001:

2big ports, cable diameter: 8mm - 21mm, 2 small ports, cable diameter: 8 mm -40mmDome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimensi 3

the first layer of the splice enclosure is for distribution. The clsoure base with SC adapter panel, max can hold 18 pcs SC adaptors; also can hold 2 pieces x 1:8 micro splitter or 1 piece 1x 16 micro plc splitter 900um

Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimensi 4

SC adaptor panel is fixed on the fiber splice tray with screws, it is metal material, can take it off when needed, stable performance, easy to operate.

Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimensi 5

this second layer of the splice tray is for splitting, the splitter stainless tube is fixed on the protective sleeve holder. this tray have enough storage space for redundant optical fiber.



Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimensi 6

on the splice closure box, there is a place to put the lables, which indicatebelow information (for example):

model no.: GJS-2001

product name: fiber optic splice closure

max capacity: 24cores

prouction date: 02/10/2013





Standard accessories:

Dome Mechanical Fiber Optic Cable Junction Box 48 Cores 510 * 218mm Dimensi 7

English installation manual 1 pc
Plastic Special wrench 1 sets
Metal Special wrench 1 pc
Sand paper 1 pc
Grounding wire 1 pc
Labeling mark 1 pc
Heat shrinkable protection sleeve 12 pcs (on capacity request)
Buffer tube 1 pc
Wall mounting kits 1 sets
Insulation tape 1 roll
Desiccant 1 bag
Seal tape 1 roll
