Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model 1X2 1*2 1:2 PLC splitter
Kuantitas min Order 100 pcs
Harga negotiable
Kemasan rincian 1pc/ box,100pcs/carton box
Waktu pengiriman 5-8days after payment
Syarat-syarat pembayaran Western Union, T/T, MoneyGram
Menyediakan kemampuan 10,000 pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
split ratio 1:2 coupler connector SC UPC
fiber type SMF G657A1 insertion loss <3.5dB
Uniformity (Max.) <0.5dB wavelength 1260 - 1650 nm
PDL(Max.) 0.2dB Standard Telcordia GR-1221 and GR-1209
steel tube 60*7*4mm
Cahaya Tinggi

Fiber Optic Splitter

,

fbt coupler

Tinggalkan pesan
Deskripsi Produk

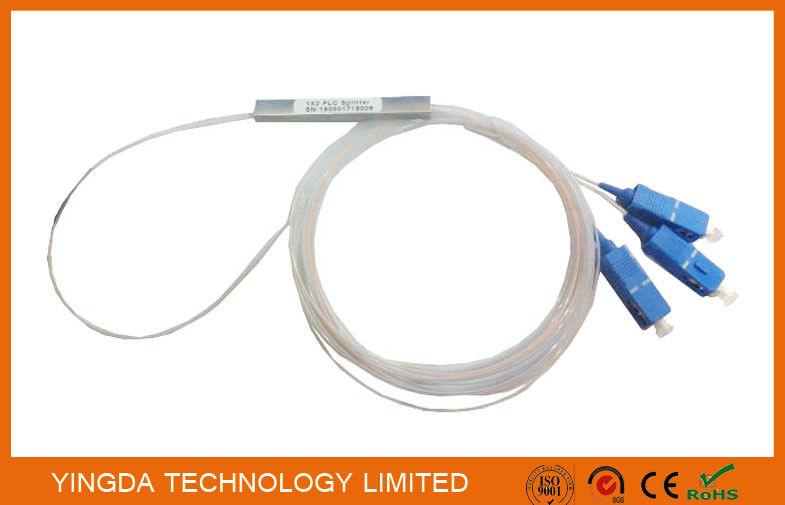

1x2 1:2 1*2 Steel Tube Splitter PLC 900um 1Meter LSZH G657A SC Connector UPC Polished​





Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.

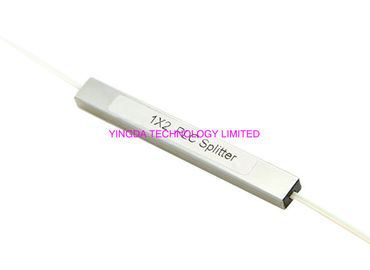

Steel tube size:

Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector 0

Features

  • Low insertion loss and PDL
  • High channel number
  • Compact size
  • High reliability
  • Wide operating wavelength and temperature range
  • Excellent channel uniformity
  • Telecordia GR-1221 and GR-1209



More pictures

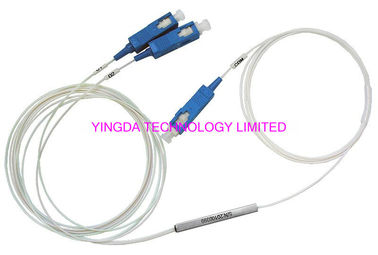

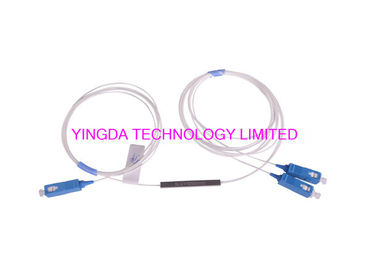

PLC splitter steel tube can add connectors, SC/UPC or SC/APC

the cable diameter is 0.9mm, can be white  or different color input and output.

Each cable have label ring to identify the split

Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector 1Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector 2



steel tube can print: customer LOGO,product name serial number as per customer request

each PLC splitter will pack with 1pc test report when delivery.

Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector 3Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector 4





package can be blister bag or carton box. For cost saving, we suggest carton box, it can also protect the fibers and products in a very good condition.



Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector 5Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector 6



Specifications (1XN):



Port Configration 1X2 1X4 1X8 1X16 1X32 1X64
Operating Wavelength (nm) 1260 ~ 1650
Insertion Loss (dB) Typical 3.5 6.8 10.2 13.1 16.2 20.2
Max 4.0 7.4 10.5 13.5 16.9 21.0
Channel Uniformity (dB) 0.5 0.7 1.0 1.4 1.8 2.0
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4
WDL (dB) 0.3 0.3 0.3 0.5 0.5 0.8
TDL (-40ºC ~ 85ºC )(dB) 0.5 0.5 0.5 0.8 0.8 1.0
Dimensions for Fan-out (mm) 60(L)X7(W)X4(H) 60X12X4 80(L)X20(W)X6(H)
RL (dB) > 55dB
Directivity (dB) > 55dB
Fiber Type G652D or G657A
Operating Temperature Range -40ºC ~ 85ºC



Specifications (2XN):



Port Configration 2X2 2X4 2X8 2X16 2X32 2X64
Operating Wavelength (nm) 1260 ~ 1650
Insertion Loss (dB) Typical 3.8 7.2 10.6 14.0 16.8 20.8
Max 4.2 7.8 11.2 14.6 17.9 21.5
Channel Uniformity (dB) 1.0 1.4 1.5 2.0 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
WDL (dB) 0.6 0.6 0.8 0.8 0.8 1.0
TDL (-40ºC ~ 85ºC )(dB) 0.5 0.5 0.5 0.8 0.8 1.0
Dimensions for Fan-out (mm) 60(L)X7(W)X4(H) 80(L)X12(W)X4(H) 80X20X6
RL (dB) > 50dB
Directivity (dB) > 55dB
Fiber Type G652D or G657A
Operating Temperature Range -40ºC ~ 85ºC






YINGDA produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.
