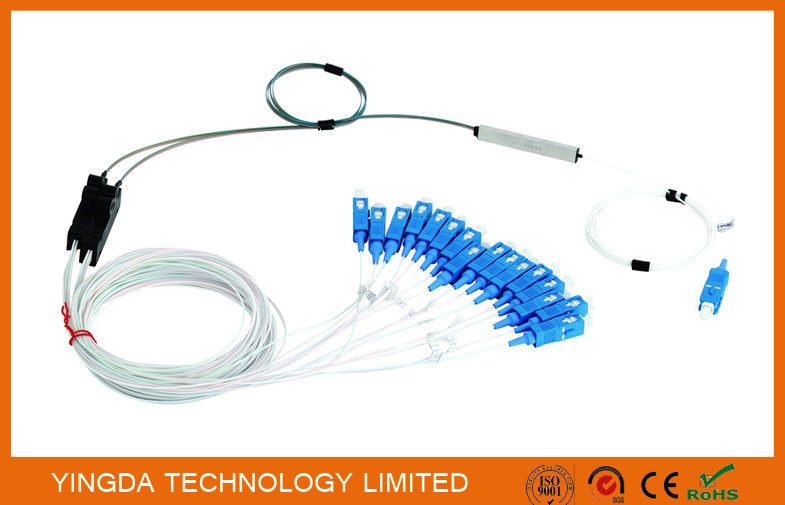

1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter

  • 1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
  • 1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
  • 1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
  • 1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
  • 1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter
Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model 1*16 fanout splitter
Kuantitas min Order 100 pcs
Harga negotiable
Kemasan rincian 2pc/ box, 20pcs/carton box
Waktu pengiriman 5-8days after payment
Menyediakan kemampuan 10,000 pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
split ratio 1:16 splitter with fanout kits connector SC/APC, SC/UPC, LC/APC,LC/UPC
fiber type corning fiber SMF -28e G657A1 insertion loss 13.6dB
Uniformity (Max.) 1.4dB wavelength 1260 - 1650 nm
PDL(Max.) 0.3dB Standard Telcordia GR-1221 and GR-1209
tube dimension 60*12*4mm cable diameter 0.9mm
cable color white
Cahaya Tinggi

fbt coupler

,

PLC Splitter
Tinggalkan pesan
Deskripsi Produk

1x16 Single Mode PLC Splitter (Planar Lightwave Circuit Splitter) with Fan Out SC/UPC Connectors





Singlemode standard tree coupler module 1X3, 3X3, 1X4, 1X8, 1X16, 1X32 and 2X4, 2X8, 2X16 and 2X32 port ratios are available. They offer very low insertion loss, low polarization dependence, well controlled uniformity as well as excellent environmental stability. Standard tree coupler modules have been extensively used to split and mix optical signals in CATV, LANs and all other kinds of optical communication systems.



Features

Singlemode PLC Splitters

in a variety of package types and configurations

Optical performance 100% factory tested

Operating Window: 1260~1650nm

Polarization Stability (dB): ≤ 0.50dB

Conforms to Telcordia GR-1209-CORE-2001 and GR-1221-CORE-1999

FC SC ST LC connectors available

UPC APC is available



Technical Specs for PLC Splitter with Connector



1xn SPLITTER



Item 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss(dB) ≤4.2 ≤7.6 ≤10.7 ≤14.0 ≤17.2 ≤20.8 ≤24.0
P-Grade Insertion Loss(dB) ≤4.0 ≤7.4 ≤10.5 ≤13.8 ≤17.0 ≤20.4 ≤23.7
Uniformity(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss(dB) ≥50
Directivity(dB) ≥55
Operating Temp.Gange -40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.



2XN splitter

Item 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss(dB) ≤4.4 ≤8.0 ≤11.0 ≤14.6 ≤17.8 ≤21.0 ≤24.4
P-Grade Insertion Loss(dB) ≤4.2 ≤7.7 ≤10.8 ≤14.1 ≤17.4 ≤20.7 ≤24.0
Uniformity(dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
Return Loss(dB) ≥50
Directivity(dB) ≥55
Operating Temp.Gange -40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.





More pictures



1x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter 01x16 Fiber Optic PLC Splitter Planar Lightwave Circuit Splitter 1
