FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors

  • FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors
  • FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors
  • FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors
  • FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors
  • FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors
  • FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors
Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model 1x32 plc splitter
Kuantitas min Order 100 pcs
Harga negotiable
Kemasan rincian 1pc/ box, 20pcs/carton box
Waktu pengiriman 5-8days after payment
Syarat-syarat pembayaran Western Union, T/T, MoneyGram
Menyediakan kemampuan 10,000 pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
split ratio 1:32 connector LC APC
fiber type single mode G657A1 insertion loss 16.5dB
Uniformity (Max.) <1.3dB wavelength 1260 - 1650 nm
PDL(Max.) 0.3dB Standard Telcordia GR-1221 and GR-1209
steel tube 80×20×6mm
Cahaya Tinggi

Fiber Optic Splitter

,

fbt coupler
Tinggalkan pesan
Deskripsi Produk

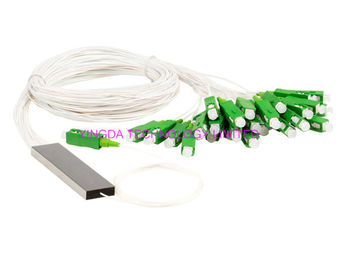

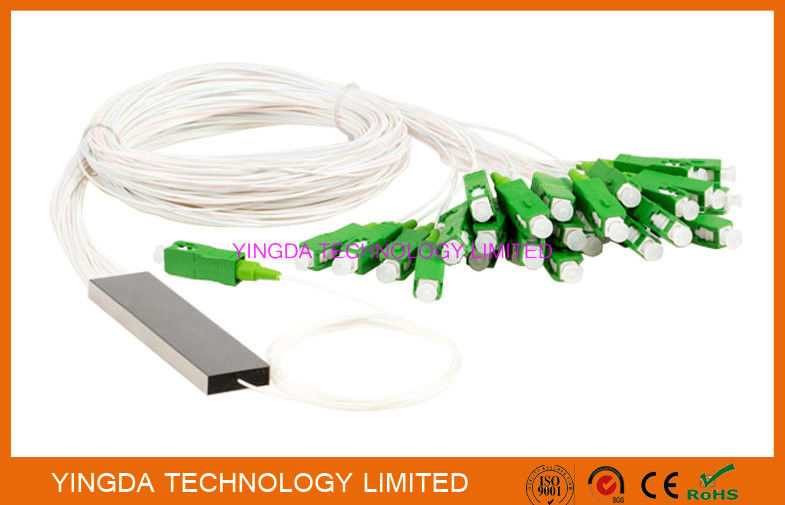

FTTH 1x32 Mini PLC Splitter Singlemode Steel Tube LC APC Connectors PON CATV Network LSZH Corning Fiber





YINGDA Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.



Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: From 1260nm to 1650nm
  • Wide Operating Temperature: From -40℃ to 85℃
  • High Reliability and Stability



Applications

  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution



Compliance

  • Telcordia GR-1209-CORE
  • Telcordia GR-1221-CORE
  • RoHS



Steel Tube Size



FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors 0



Technical Specification



      Without connectors

Type 1*2 1*4 1*8 1*16 1*32 1*64 2*2 2*4 2*8 2*16 2*32 2*64
Item
Insertion loss (dB) Max 3.7 7 10.2 13.5 16.5 20.5 4.2 7.2 10.7 14.2 16.8 20.5
Uniformity(dB) Max 0.5 0.6 0.8 1 1.3 1.8 0.6 0.8 1 1.5 1.8 2
PDL(dB) Max 0.2 0.3 0.4 0.2 0.3 0.4
Operating Wavelength (nm) / 1260~1650
Return loss(dB) Min 55
Directivity (dB) Min 55
Operating Temperature (°C) / -40°C~85 °C
Storage Temperature (°C) / -40°C~85 °C



      With connectors

Type 1*2 1*4 1*8 1*16 1*32 1*64 2*2 2*4 2*8 2*16 2*32 2*64
Item
Insertion loss (dB) MAX 3.9 7.2 10.5 13.8 16.8 20.8 4.4 7.4 11 14.5 17.5 20.8
Uniformity (dB) MAX 0.5 0.6 0.8 1 1.3 1.8 0.6 0.8 1 1.5 1.8 2
PDL (dB) MAX 0.2 0.3 0.4 0.2 0.3 0.4
Operating Wavelength (nm) / 1260~1650
Return loss (dB) MIN 50(UPC),55(APC)
Directivity (dB) MIN 55
Operating Temperature (°C) / -40°C~85 °C
Storage Temperature (°C) / -40°C~85 °C



Notes:

1. Specified without connectors.

2. IL will be 0.15dB higher with connectors.

3. For more information about 2xN PLC splitter, please refer to our PDF datasheet.







Product details

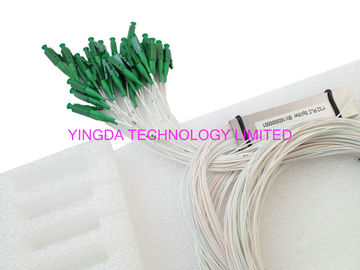

steel tube: product name, seral number or logo               each product with 1test report, 2pc/box



FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors 1FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors 2

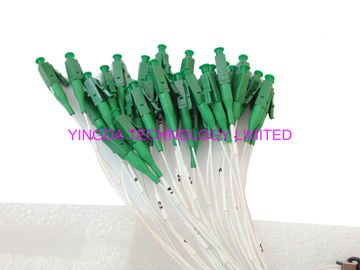

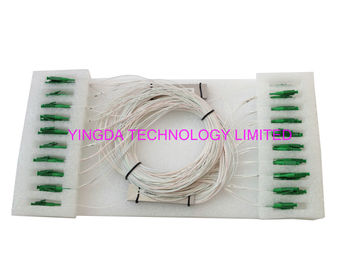

plc splitter with figure ring on each output for easier recognaize. and fix on the box tightly with ties for better protection during transportation.



FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors 3FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors 4



For more details, pls send mail to us at: sales@ydpcable.com   contact: sophie wang
