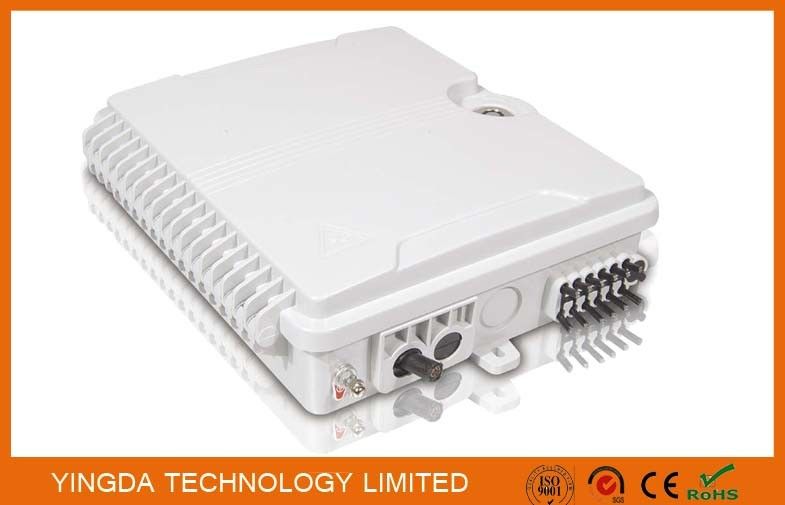

White Plastic 12 Ports Fiber Optic Termination Box ,12 Core SC Pole Mount Splitter Box Waterproof
Tempat asal | Cina |
---|---|
Nama merek | YINGDA |
Sertifikasi | ISO |
Nomor model | FDB0212C |
Kuantitas min Order | 200pcs, first order accept small order |
Harga | negotiable |
Kemasan rincian | 1pc/box, 20pcs/carton box |
Waktu pengiriman | 5-8working days |
Syarat-syarat pembayaran | T/T, Western Union, MoneyGram, L/C |
Menyediakan kemampuan | 50k per month |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xmaterial | PC+ABS | Capacity | 12 fibers |
---|---|---|---|
adapter qty | 12pcs SC/UPC couplers | split ratio | 1x2,1x4,1x8 micro splitter optional |
color | white | size | 225*200*65mm |
connector insertion loss | <0.2dB | OME or sample | ok |
cable port | 2in 16out; input; un-cut cable | cable diameter | 16mm |
Cahaya Tinggi | penutupan serat optik,kotak distribusi optik |
Plastic Telecom 12 Ports Fiber Optic Termination Box, Pole Mount Optical Splitter Distribution Box With SC Couplers FTTH Patchcord
MODEL: FDB0212C
This fiber optical termination box is a termination point for the feeder cable with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1. Water-proof d,IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius >40mm
6. Suitable for the fusion splice or mechanical splice
7. 12 ports cable entrance for FTTH drop cable
8. Max hold 12pcs SC adapters
9. Wall mount or pole mount
Configuration:
Model | Size | Max capacity | Color | Material |
FDB0212C | 225*200*65mm | 12pc SC | White | PC+ABS |
Package information
Model | Carton quantity | G.w./ctn | N.w./ctn | Carton size |
FDB0212C | 20pcs | 22.4kgs | 22kgs | 51*50*51cm |
More pictures
- Tdistribution box cable ports:2in 16out
- with waterproof key lock
- high strength engineer plastic
- with cable routing diagram inside for guiding
- SC adapter panel must install 12pcs SC simplex adaptor adapter coupler
- dual layer splice tray with hinge, upper for distribution and storage, down layer for fusion and protection
- with underground wire,and drop cable fixtures with stainless steel matreial
- can print customer LOGO / OEM
Optional accesories can be pre-terminated inside of the box:
Specification:
Environmental requirement | Parameters | value |
Working temperature | -40℃~+85℃ | |
Relative humidity | ≤85%(+30℃) | |
Atmospheric pressure | 70KPa~106Kpa | |
Main technical | ||
Insertion loss | ≤0.2dB | |
return loss | UPC≥50dB; APC≥60dB | |
Life of insertion and extraction | >1000 times | |
Thunder-proof technical | The grounding device is isolated with the cabinet, isolation resistance is less than 20000MΩ/500V(DC);IR≥20000MΩ/500V | |
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min,no puncture,no flashover;U≥3000V |
How to install
1.Wall-mounted installation
Drill 3 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.
2.Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole
Accessories:
1. Users' Manual*1
2. Key*1
3. Accessories Bag * 1
4. Easy pole ring*2 (Option)
