Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter
| Tempat asal | Cina |
|---|---|
| Nama merek | YINGDA |
| Sertifikasi | ISO |
| Nomor model | FDB0212G |
| Kuantitas min Order | 200pcs, first order accept small order |
| Harga | negotiable |
| Kemasan rincian | 1pc/box, 20pcs/carton box |
| Waktu pengiriman | 5-8working days |
| Syarat-syarat pembayaran | T/T, Western Union, MoneyGram, L/C |
| Menyediakan kemampuan | 50k per month |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| material | PC+ABS | Capacity | 12 fibers |
|---|---|---|---|
| adapter qty | 12pcs SC adaptor in 3way | split ratio | 1x2,1x4,1x8 micro splitter optional |
| color | white | size | 250*190*39mm |
| connector insertion loss | <0.2dB | OME or sample | ok |
| cable port | cable gland, 2 inports, 16 outports | cable diameter | 16mmin, 3mmdrop cable out |
| Cahaya Tinggi | penutupan serat optik,distribusi kotak splitter |
||
Deskripsi Produk

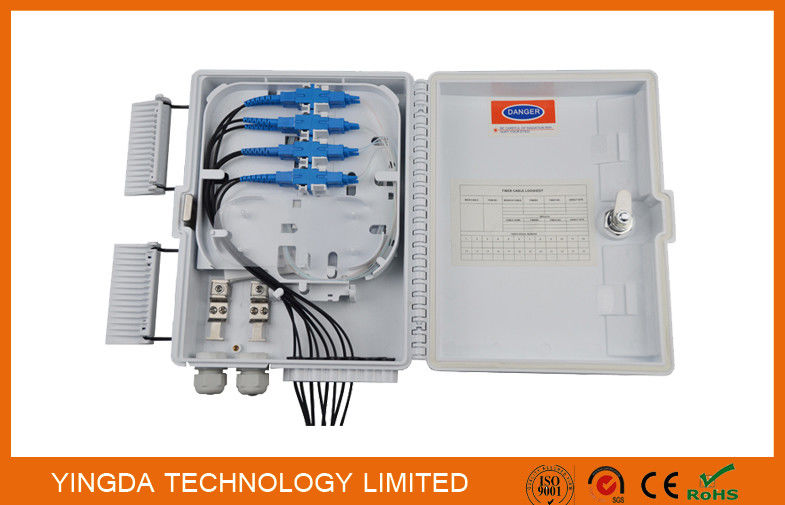

Outdoor 12Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter IP65
FDB0216G optic fiber boxes is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH.
Features
- The two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.
- Optical Splitter module drawer modular design with a high degree of interchangeability and versatility;
- Up to 12pcs FTTH drop cable
- 2 ports for outdoor cable in
- 12 ports for drop cable or indoor cable out
- can accommodate 1x4 and 1x8 1x16 PLC splitter (or 2x4 or 2x8)
- Wall mounting and pole mounting application
- IP 65 waterproof protection class
- Indoor or outdoor use
- Suitable for 12x SC / LC duplex adapter
- Pre-terminated pigtails,adapters, plc splitter available.
White Color Box
Gray Color Box
Cable Entry Port can do cable gland or uncut cable express port like below:
Application
1.Widely used in FTTH (Fiber To the Home) access network
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
6.Suitable for Telekom UniFi
Specifications
| Model | FDB0216G |
| Dimension | 250*190*39mm |
| Max capacity |
12CORES ; PLC:1X2,1X4,1X8,1X12 |
| Max adapter | 12X SC simplex, LC duplex adapter |
| Max splitter ratio | 1x2,1x4,1x8,2x4,2x8 mini splitter |
| Cable port | 2in 16out |
| Cable diameter | In: 16mm; out:2*3.0mm drop cable or indoor cable |
| Material | PC+ABS |
| Color | White, black, gray |
| Environmental requirement | Working temprature : -40℃~+85℃ Relative humidity : ≤85% (+30℃) Atmospheric pressure : 70Kpa~106Kpa |
| Main technical | Insertion loss : ≤0.2db UPC return loss : ≥50db APC return loss : ≥60db Life of insertion and extraction : >1000 times |
| Thunder-proo technical |
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC); IR≥2*104MΩ/500V(DC)
|
Standard Accessories
Cabinet keys; Plastic expansion screw, Self-tapping screws; Hose clamps, Shrinkable sleeves, buffer tube, pole mount or wall mount kits etc.
