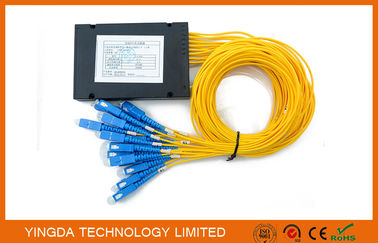

Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability

Name: Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YD-PLC-MM116-SC-15-20
Price: 2.10 USD
Availability: InStock

Nama merek:	YINGDA
Nomor Model:	YD-PLC-MM116-SC-15-20
MOQ:	50 pcs
harga:	1.1USD-4.58USD
Waktu Pengiriman:	5-8days after payment

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO SGS ROHS

connector:

SC / UPC

fiber type2:

Corning fiber SMF-28e

insertion loss:

13.5 dB

Uniformity (Max.):

1.2 dB

wavelength:

1260-1650nm

PDL(Max.):

0.25 dB

plastic box module:

120*80*18 mm

Fiber length:

1.5 meter

cable diameter:

2.0mm

Split ratio:

1x16 PLC splitter

Packaging Details:

1PC/BOX

Supply Ability:

10,000 pcs per month

Menyoroti:

fbt coupler

PLC Splitter

Deskripsi Produk

FTTH Passive Fiber Optic PLC Splitter Moule 1X16 SC SM 2.0mm Plastic Box Splitter

Planar Lightwave Circuits (PLC) Optical Splitter are fully passive optical branching devices that exhibit very low inertion loss and PDL, great channel uniformity and a wide wavelength perative range.

These splitters are manufactrued and tested to Telcordia-1209-core & GR-1221-core to provide high performance,specifically designed to meet the tough requirement of FTTH,PON and CATV networks.

Applications

* FTTH,FTTC,FTTB
* Passive Optical Networks(PON)
* CATV networks and data communications
* Fiber optic equipment and systems

Features

* High uniformity
* Low insertion loss
* Compact & small size
* High reliability and stability
* Optional input & output

PLC Specification
Wavelength(nm)	1260-1650
Parameters	1×4	1×8	1×16	1×32	1×64	2×4	2×8	2×16	2×32
Insertion Loss (with connector)(dB)	≤7.4	≤10.7	≤13.7	≤16.9	≤21	≤7.8	≤11.5	≤14.5	≤17.7
Insertion Loss (W/O connector)(dB)	≤7.7	≤11.2	≤14.2	≤17.5	≤21.5	≤8.3	≤12	≤15	≤18.2
Uniformity (dB)	≤0.8	≤1.0	≤1.4	≤1.9	≤2.7	≤1.7	≤1.7	≤2.2	≤2.7
PDL(dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.4	≤0.2	≤0.4	≤0.4	≤0.4
Size(Blocklesstype) (H×W×L)(mm)	4×7×60		4×12×60	6×20×80	6×40×100	4×7×60		4×12×60	6×20×80
Return Loss(dB)	>50
Directivity(dB)	>55
TemperatureRange(°C)	-40~+75
Storage Temperature(°C)	-40~+85

2×N (N>2) (Without connector)

parameters			2×4	2×8	2×16	2×32
1	Operation wavelength(nm)		1260~1650
2	Insertion loss(dB)	Max	7.8	11.2	14.2	17.4
3	Loss uniformity(dB)	Max	1.2	1.5	1.8	2.0
4	Return loss(dB)	Min	55	55	55	55
5	PLD(dB)	Max	0.2	0.3	0.4	0.4
6	Directivity(dB)	Min	55	55	55	55
7	Wavelength dependent loss(dB)		0.4	0.4	0.5	0.5
8	Pigtail length(m)		1.2(±0.1) or customer specified
9	Fiber type		Cusomization
10	Operation temperature(°C)		-40~85
11	Storage temperature(°C)		-40~85
12	Dimension (L×W×H) (mm)		50×4×4	50×4×4	60×7×4	60×7×4

Note: All measurement were done at room temperature and specification include connectors.

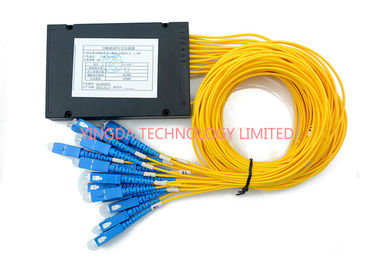

Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability 0
