Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black

Name: Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FHPC-SCU-01-SFS-A1B-200
Price: 14.36 USD
Availability: InStock

Nama merek:	YINGDA
Nomor Model:	FHPC-SCU-01-SFS-A1B-200
MOQ:	100PCS
harga:	0.36USD-30USD

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO,SGS,ROHS

Application:

FTTH indoor outdoor wiring

Connector:

SC / UPC

fiber count:

1 core

fiber type:

G657A1

Cable sheath:

LSZH

Cable length:

200meters

Cable color:

black / white

insertion loss:

< 0.3dB

Cable strength member:

0.5mm Phosphating steel wire

drop cable diameter:

2*3.0mm

Nama produk:

kabel serat,kabel patch serat optik,kabel patch serat optik,jumper serat optik,kabel jumper serat op

Packaging Details:

1 piece / bag

Menyoroti:

fiber optic patch cable

fiber optic jumper

Deskripsi Produk

Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black

We are leading manufacturer who specialized in cable assembling and connectors, our main products

including fiber optics patch cord, pigtail, connector, adapter, coupler/PLC Splitter ect.

Features:

Single mode and Multimode
drop cable 1core, 2core, 4core,...12cores available
Custom order length
Cable color:white, black, yellow or customized
All parts compliant with RoHS
IEC standard compatible
GR-326-CORE Compliant

Application

FTTX + LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specification

Parameter	type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.15dB
	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
	MM	≥35dB	≥35dB	≥35dB	≥35dB
Mating Durability(500 timer)	Additional Loss≤0.1dB, Return Loss Variability<5dB
Temperature Stability(-40°C~75°C)	Additional Loss≤0.2dB, Return Loss Variability<5dB
Operating Temperature	-40°C~+75°C

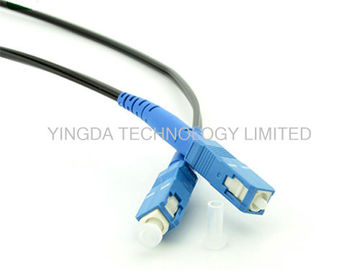

Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black 0

Order information

FHPC-XXX-XX-XXX-XXX-XX

1 - 2 - 3 4 - 5 6 - 7

FHPC

Connector

type

Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2

W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...

Self-supporting Bow-type drop cable (GJXFCH) structure

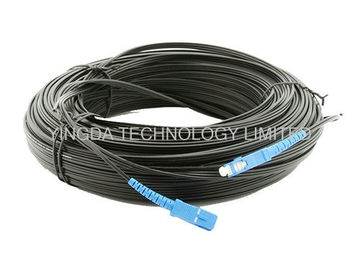

Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black 1

Mass Production:

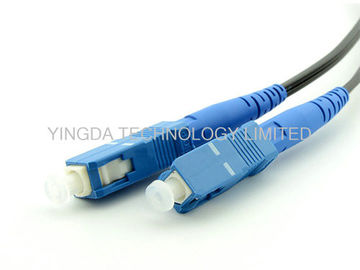

Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black 2
