Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter

Model: FDB0216A

Fiber Optic Termination Box provides a high density wall mounted solution for next generation networks,

which aims to provide and manage maximum numbers of fiber termination in a limited space.

It is normally installed in the way of wall mounting or pole mounting.

Application

• Telecommunication Networks
• WAN,LAN ,CATV Networks
• Data communications Networks
• Fiber Optic FTTH access network

Box drawing

Features

1. Box is made of high impact plastic
2. Can accommodate 1x8 1x16 micro PLC splitter with SC Connector
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Wall and pole mounted application
5. Max. Hold 16pcs SC or LC duplex adapters
6. 2 pcs un-cut cable port, 16 pcs FTTH drop cable outports
7. Pre-install SC adapter or micro splitter, pigtails available.

Specifications:

How to install:

Packing information:

Real photos show:

for example:

FDB0216 fully load 1x16 PLC Splitter SC/APC connectors 1 meter 900um and SC/APC adapters

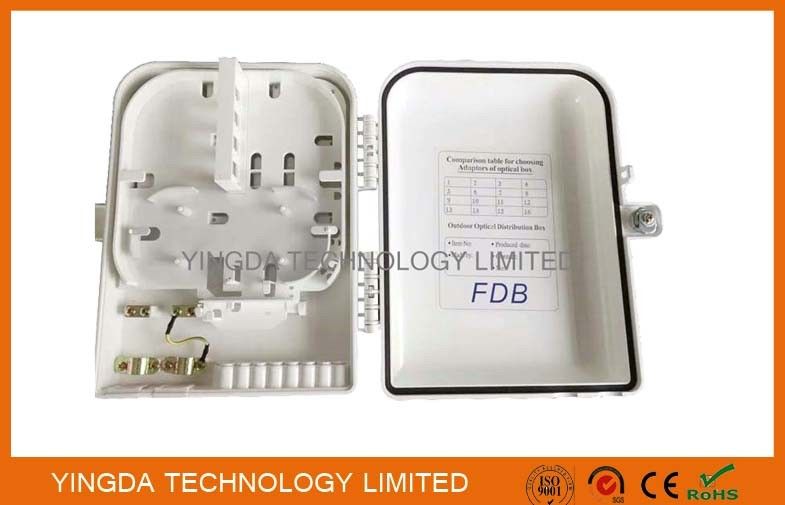

FRONT SIDE INTERNAL VIEW

                    FRONT OF SPLICE TRAY INSIDE--- 16pcs Adapter panel module,

                                               This module can take off.

               BACK VIEW OF THE SPLICE TRAY --- PLC Splitter splice and distribute

 Adapter panel can changed into LGX module, then can hold 2x 1:8 plc splitter or 1x1:16 spliter, like this:

Empty box:

1. 2in 16out, can use un-cut cable                    2. adapter panel+ all accessories in 1 bag

 3. cable port : 2in,16outfor FTTH drop cable   4. cable port: uncut cable or cable gland
