MOQ: 100 buah
harga: Dapat dinegosiasikan
Kemasan standar: 1 pc/kotak, 4 pcs/kotak karton
Delivery period: 5 hari setelah pembayaran
metode pembayaran: T/T atau Western Union
Kapasitas Pasokan: 50.000 pcs per bulan
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
ISO, SGS, CE
Nomor model
FOSC400B4 GJS-03A
Bentuk:
penutupan sambungan kubah
Kapasitas maksimum:
144 penutupan splicing serat
Pelabuhan kabel:
1 port oval + 4 port bulat
Diameter Kabel:
Maks. 35mm
Bahan:
Bodi PP+GF, baki ABS
Jumlah baki sambungan:
maks. 6 buah baki 24CORES
dimensi penutupan:
421*185mm
Jenis:
Kubah Horisontal, Tegak, Bagian atas-bawah, Kotak Distribusi Serat Optik, satu saluran masuk/keluar,
Metode penyegelan:
bak penurun panas, lengan
Kelas tahan air:
IP68
Menyoroti:

144 Core Penutupan Sambungan Serat Optik

,

Penutupan Sambungan Serat Optik Kubah PP

,

5 Port Penutupan Sambungan Serat Optik

Deskripsi Produk

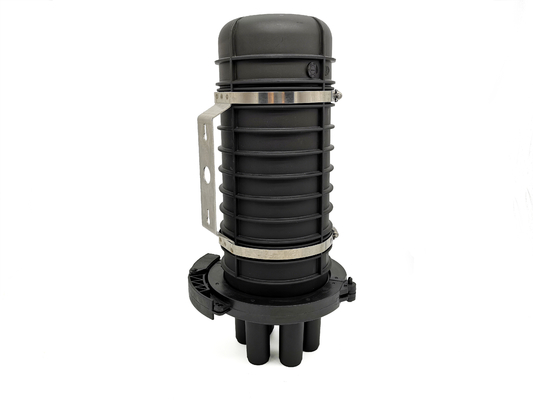

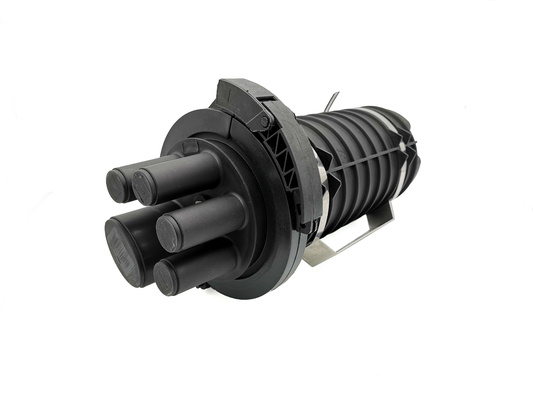

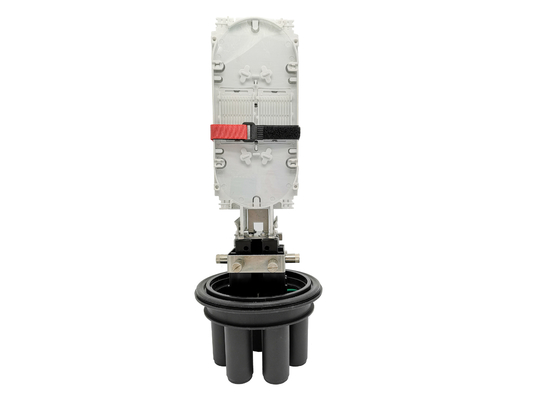

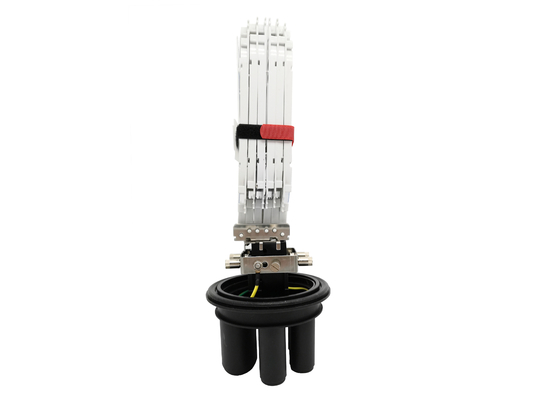

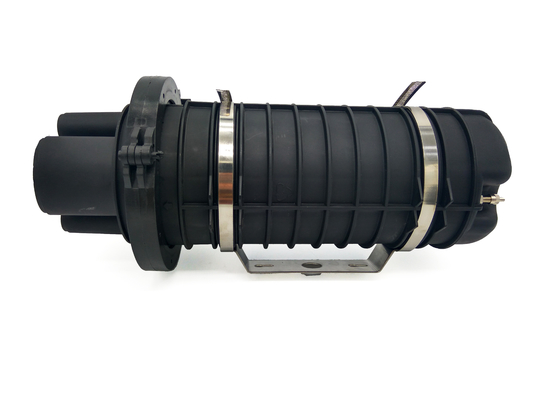

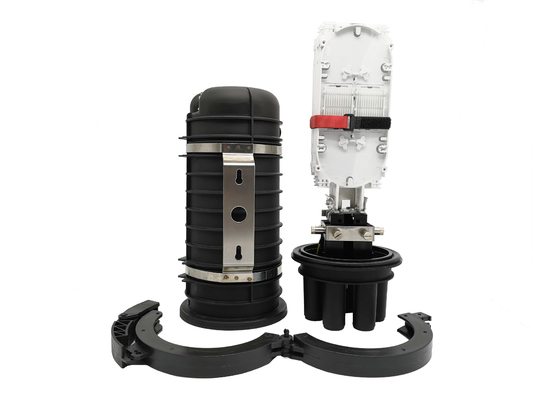

144 Core PP Dome Outdoor Fiber Optic Splice Closure Joint Box 5 Port Heat Shrink Seal



FOSC400A4 fiber optic splice closures dirancang khusus untuk melindungi sendi kabel optik.Serat optik adalah fusi di sisi nampan. Satu tray dapat menyambung 24 serat; Tersedia untuk 6 tray untuk menyambung total 144 serat. Mengadopsi bahan PP yang dimodifikasi, dengan bahan anti-UV, anti-penuaan dan tahan korosi.Kualitas yang baik dan masa pakai yang panjang. Itu dapat digunakan kembali.

 body{background-c</p> <p><strong>Spesifikasi Penutupan Serat Optik Kubah</strong></p> <table border="1" cellpadding="0" cellspacing="0" style="overflow-wrap: break-word; width: 650px;"> <tbody> <tr> <td style="width:63px;">Model</td> <td style="width:42px;"> <p>Tray</p> <p>qty</p> </td> <td style="width:62px;">Kapasitas baki / serat</td> <td style="width:59px;">Kapasitas total / serat</td> <td style="width:73px;">Dimensi / mm</td> <td style="width:270px;">Pelabuhan masuk.</td> <td style="width:119px;">Bahan baku</td> </tr> <tr> <td style="width:63px;">FOSC400 A4</td> <td style="width:42px;">6</td> <td style="width:62px;">24</td> <td style="width:59px;">144</td> <td style="width:73px;">410*250</td> <td style="width:270px;"> <p><strong>4 putaran</strong>port yang tersedia untuk kabel dia.<11.5mm;</p> <p><strong>1 oval</strong>port tersedia untuk 2pcs diameter. ≤ 20mm</p> </td> <td style="width:119px;"> <p>PP + GF yang dimodifikasi;</p> <p>Tray:ABS</p> </td> </tr> </tbody> </table> <p> </p> <p><strong>Penutupan splice serat optik 144 inti Fitur</strong></p> <ul> <li>Dapat digunakan untuk aplikasi yang dipotong, tidak dipotong dan ketat.</li> <li>Dapat digunakan untuk semua kabel serat optik.</li> <li>Sistem retensi sarung & kekuatan pusat anggota terminasi termasuk.</li> <li>Konstruksi penutupan bersayap-plastik ringan menawarkan kekuatan dan ketahanan</li> <li>untuk serangan kimia dan UV</li> <li>Pemasangan dan masuk kembali dengan alat minimal</li> <li>Semua perangkat keras terpesona</li> </ul> <p><img alt=

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

body{background-c</p> <p>------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------</p> <p><img alt=

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Aksesoris standar FOSC

Kubah, Base, penjepit, O-ring, keranjang penyimpanan logam, Splice Tray, pelindung kerutan panas, tabung penyangga, Kawat ikatan, Kawat tanah, kertas pelabelan, Manual instalasi



1 set Oval port FOSC kit penutupan:

Termasuk 1 tabung pemasangan tahan panas + 2 pcs Aluminium kertas ((10cm x 10 cm) + kertas pasir (2,5 x 30mm) + klip cabang dll



4 set kit penutupan pelabuhan bulat:

Termasuk 1 tabung pemasangan panas+1 pc kertas aluminium ((10cm x 10cm) dll)



Opsional penutupan spliceaksesoris

Set gantung, set pemasangan dinding, set pemasangan tiang, perangkat grounding, katup udara

body{background-c</p> <p>------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------</p> <p> </p> <p><strong>96 Core kotak persimpangan serat optik Aplikasi</strong></p> <ul> <li>Di bawah tanah, udara, kubah, pemasangan tiang dan pemasangan dinding</li> </ul> <p> </p> <p><strong>Informasi pesanan FOSC:</strong></p> <p>FOSC400A4-XX-XX-X</p> <p>FOSC400A4-Kapasitas 12,24,36,48,72fiber...)-splice tray ((01-=1pc,02=2pcs...)-accessories ((S=standar;O=opsional,atas permintaan pelanggan)<br/> <br/> <strong>Produk yang berhubungan dengan penutup splicing serat:</strong></p> <p><a rel="nofollow" target="_blank"href="https://www.fibreopticbox.com/sale-10076279-ftth-optical-splitter-1x16-1x8-1x4-distribution-splice-closure-96-cores-32-sc-coupler-outdoor-pole.html"><img alt=


GJS-D033 penutupan serat splice

body{background-c</a><br/> <strong>GJS-D022 penutupan splice serat optik</strong></p></div> </section> <section id="sention3"> <div class="title">Peringkat & Ulasan</div> <div class="remark"> <style> /* 全局重置和基础样式 */ body { margin: 0; padding: 0; background-color: #fff; color: #333; } .feitian { font-family: "feitian" !important; font-size: 16px; font-style: normal; -webkit-font-smoothing: antialiased; -moz-osx-font-smoothing: grayscale } .comment-container { max-width: 100%; margin: 0 auto; width: 100%; margin-top:20px } /* 头部和主要标题 */ .comment-header { font-size: 24px; font-weight: bold; color: rgba(253, 177, 0, 1); /* 与图片中“Ratings&Review”的颜色相似 */ padding-bottom: 10px; border-bottom: 2px solid rgba(253, 177, 0, 1); margin-bottom: 20px; display: inline-block; } /* 评分概览部分布局 */ .ratings-summary { display: flex; flex-wrap: wrap; /* 允许在小屏幕上换行 */ margin-bottom: 24px; box-sizing: border-box; border: 1px solid rgba(224, 224, 224, 1); background: rgba(255, 255, 255, 1); } .ratings-summary h3{ width: 100%; background: rgba(240, 240, 240, 1); padding-left:23px; font-size: 16px; height: 48px; line-height: 48px; margin:0px; color:#323232 } .rating-box { background-color: #fff; border-radius: 2px; flex: 1; /* 默认占据一行，flex-basis由媒体查询控制 */ min-width: 300px; /* 确保在小屏幕下内容不会太拥挤 */ } /* 总体评分 */ .overall-rating-text{ padding: 21px 20px 35px; width: 533px; border-radius: 8px; background: rgba(245, 244, 244, 1); display: flex; align-items: center; justify-content: space-between; position: relative; margin-right: 46px; } .overall-rating-contact{ display: flex; } .overall-rating h3 { margin-top: 0; font-size: 18px; color: #323232; padding: 0px 30px; background-color:#F0F0F0; height: 48px; line-height: 48px; } .overall-rating-value { font-size: 36px; font-weight: 900; line-height: 64px; color: rgba(50, 50, 50, 1); } .overall-rating-contact{ display: flex ; align-items: center; } .stars-container { display: flex; align-items: start; flex-direction: column; } .stars { color: #ffc107; /* 星星颜色 */ font-size: 22px; margin-left: 24px; } .:before { content: "\e677" } .stars span { margin-right: 2px; } .rating-base { font-size: 14px; color: #323232; margin-bottom: 16px; font-weight: 400; } .write-review-btn { background: rgba(94, 94, 94, 1); color: #fff; border: none; border-radius: 10px; cursor: pointer; font-weight: bold; text-align: center; width: 128px; height: 48px; line-height: 48px; font-size: 14px; box-sizing: border-box; transition: background-color 0.2s; } .write-review-btn:hover { border-radius: 10px; background: rgba(0, 0, 0, 1); } /* 评分快照 */ .filter-select h3 { font-size: 16px; font-weight: 600; color: #323232; padding: 0; margin: 0; height: auto; line-height: normal; background: none; width: fit-content; } .rating-snapshot span{ color: rgba(86, 86, 86, 1); font-size: 14px; font-weight: 400; line-height: 24px; letter-spacing: 0%; text-align: left; margin-left: 14px; } .filter-select { font-size: 14px; color: #323232; margin-bottom: 8px; display: flex; align-items: center; } .rating-bar-item { display: flex; align-items: center; margin-bottom: 6px; } .rating-label { width: 60px; font-size: 14px; color: #323232; font-weight: 400; flex-shrink: 0; } .progress-bar-container { flex-grow: 1; background-color: #eee; border-radius: 4px; height: 8px; margin: 0 10px; overflow: hidden; max-width: 540px; } .progress-bar { height: 100%; border-radius: 6px; background: #59c400; transition: width 0.5s; } .rating-percentage { width: 40px; text-align: right; font-size: 14px; color: #323232; font-weight: 400; } /* 所有评论部分 */ .all-reviews h2 { font-size: 16px; color: #323232; margin-top: 0; padding: 0px 23px; background-color: #F0F0F0; line-height: 48px; margin-bottom:0px; } .review-item { background-color: #fff; padding: 16px 40px 20px; /* box-shadow: 0 1px 3px rgba(0, 0, 0, 0.1); */ margin-bottom: 20px; border-bottom: 1px solid rgba(240, 240, 240, 1); } .review-item:last-child { border-bottom: none; } .review-header { display: flex; align-items: center; flex-wrap: wrap; } .reviewer-initial { width: 50px; height: 50px; background-color: #E1E1E1; color: #323232; border-radius: 50%; display: flex; justify-content: center; align-items: center; font-weight: 700; margin-right: 20px; font-size: 16px; flex-shrink: 0; } .reviewer-initial img{ width: 100%; height: 100%; border-radius: 50%; object-fit: cover; } .reviewer-info { display: flex; flex-direction: column; } .reviewer-name { font-size: 16px; color: rgba(50, 50, 50, 1); font-weight: 700; line-height: 24px; letter-spacing: 0%; text-align: left; max-width: 143px!important; white-space: nowrap; /* 防止换行 */ overflow: hidden; /* 隐藏超出的部分 */ text-overflow: ellipsis; /* 超出部分显示省略号 */ margin-right: 32px; } .review-meta { font-size:12px; color: #777; color: #777; display: flex; align-items: center; margin-right: 78px; } .review-meta span:nth-child(2){ max-width: 139px !important; white-space: nowrap; overflow: hidden; text-overflow: ellipsis; } .review-meta svg{ margin-top: 7px; margin-right: 10px; } .review-meta img.flag { width: 24px; height: 24px; /* 保持国旗比例 */ margin: 0 5px; } .review-meta span{ color: #323232; font-size: 14px; font-weight: 400; line-height: 24px; letter-spacing: 0%; text-align: left; } .review-meta span:nth-child(2){ margin-right: 51px; } .review-stars { color: #ffc107; font-size: 14px; padding-right: 0%; } .review-stars span{ font-size: 24px; margin-right: 4px; } .review-text { margin-top: 16px; margin-bottom: 20px; color: #323232; font-size: 14px; font-weight: 400; line-height: 24px; letter-spacing: 0%; text-align: left; padding-left: 70px; } .review-actions { display: flex; align-items: center; font-size: 13px; color: #777; padding-left: 70px; } .action-link { display: flex; align-items: center; margin-right: 40px; cursor: pointer; } .action-link:nth-child(2) { margin-right: 0px; } .action-link:hover a { color:#1264e3!important; } .action-link:hover span path { fill:#1264e3; } .action-link a{ color: #323232!important; font-family: Rubik; font-size: 14px; font-weight: 400; line-height: 24px; letter-spacing: 0%; text-align: left; } .action-icon { margin-right: 8px; line-height: 24px; } .action-icon svg{ margin-top: 4px; } /* 评论图片 */ .review-images { display: flex; gap: 20px; margin-bottom: 20px; overflow-x: auto; /* 允许在移动端滑动查看图片 */ padding-bottom: 5px; /* 留出滚动条空间 */ padding-left: 70px; } .review-image-item { width: 140px; height: 140px; border-radius: 4px; overflow: hidden; flex-shrink: 0; /* 防止图片被挤压 */ } .review-image-item a{ width: 100%; height: 100%; display: block; } .review-image-item img { width: 100%; height: 100%!important; object-fit: cover; border-radius: 4px; background: rgba(196, 196, 196, 1); } .star { font-size: 24px; /* 星星的大小 */ color: gold; /* 默认是实心星的颜色 */ } .star.empty { background: linear-gradient(90deg, gold 0%, #ccc 0%); background-clip: text; color: transparent; } .star.half { background: linear-gradient(90deg, gold 50%, #ccc 50%); /* 半颗星的渐变效果 */ -webkit-background-clip: text; /* 兼容 Webkit 内核浏览器 */ background-clip: text; /* 适配其他浏览器 */ color: transparent; /* 文字本身的颜色设为透明 */ } .star.half svg{ width: 24px; height: 24px; } .rating-box_bom{ background: #fff; padding: 20px 23px; display: flex; width: 100%; } .right-reviewer-info{ display: flex; align-items: center; } .star.empty { background: linear-gradient(90deg, gold 0%, #ccc 0%); background-clip: text; color: transparent; } .star.empty svg path{ fill:#CBCACA } /* .star.half svg path{ clip-path: inset(0 50% 0 0); } .star.half { background: linear-gradient(90deg, gold 50%, #ccc 50%); -webkit-background-clip: text; background-clip: text; color: transparent; } */ /* 响应式设计 - 针对平板和桌面 */ @media (max-width: 1440px){ } @media (max-width: 1200px){ .progress-bar-container{ width: 330px; flex-grow: inherit; ; } .overall-rating-text{ width: 442px; } .review-meta{ margin-right: 60px; } .reviewer-name{ width: 143px; } .review-meta span:nth-child(2){ width: 139px; } } @media (max-width: 768px) { .rating-box { flex: 1; /* 确保两个盒子大致平分空间 */ } .review-header { flex-wrap: wrap; align-items: center; } .review-meta { display: none; } } /* 响应式设计 - 针对非常小的移动设备 */ @media (max-width: 750px) { .container { padding: 10px; } .comment-container{ padding: 0px; } .rating-box { min-width: 100%; /* 在小屏幕上全宽 */ } .overall-rating-value { font-size:38px; min-height: auto; } .write-review-btn{ width: 100%; } .ratings-summary{ gap: 0px; margin-bottom: 30px; } .ratings-summary h3{ padding-left: 30px; } .rating-box_bom{ padding:20px } .rating-box_bom{ flex-direction: column; } .overall-rating h3{ font-size:14px } .overall-rating h3{ margin-bottom: 12px; } .review-header { margin-bottom: 2px; } .overall-rating-text{ text-align: center; width: 100%; padding: 30px 24px; flex-direction: column; margin: 0; } .rating-base{ padding: 0; font-size: 14px; } .review-meta{ margin-right: 52px; } .review-stars { width: fit-content; margin-right: 0px; padding-right: 0%; } .review-meta span:nth-child(3) { margin-right: 4px; max-width: 72px !important; color: #868686; } .g_icon{ display:none } .review-item{ padding: 24px 20px 20px; margin-bottom: 0px; } .reviewer-initial{ width: 48px; height: 48px; margin-right: 14px; flex-shrink: 0; } .action-link{ margin-right: 30px; } .review-meta span{ foont-size: 13px; font-size: 13px; max-width: 68px!important; margin-right: 6px; white-space: nowrap; overflow: hidden; text-overflow: ellipsis; } .review-stars span{ font-size:14px; margin-right: 0px; } .review-meta span{ font-size: 13px; } .reviewer-name{ width: 151px; margin-right: 0px; } .review-text{ font-size: 14px; margin-bottom: 10px; color: #323232; letter-spacing: 0%; text-align: left; display: -webkit-box; -webkit-line-clamp: 4; -webkit-box-orient: vertical; overflow: hidden; text-overflow: ellipsis; padding-left: 62px; } .review-actions{ padding-left: 62px; } .action-link a{ font-size:13px } .action-icon svg{ width: 17px; height: 17px; } .review-image-item { width: 70px; height: 70px; border-radius: 4px; overflow: hidden; flex-shrink: 0; } .review-image-item img { width: 100%; height: 100% !important; object-fit: cover; border-radius: 4px; background: rgba(196, 196, 196, 1); } .rating-snapshot h3{ font-size:14px; margin-bottom: 12px; margin: 20px 0px; } .filter-select{ margin-bottom: 0; } .rating-label{ width: 20%; } .progress-bar-container{ width: 100%; } .all-reviews h2{ font-size:14px } .rating-bar-item{ margin-bottom: 2px; } .review-images{ padding-left: 62px; gap: 14px; } .stars-container{ align-items: center; justify-content: center; } .rating-bars-container{ padding:0px } } @media (max-width: 414px){ .reviewer-name{ width: 112px; } } @media (max-width: 390px) { .star{ font-size: 18px; } .review-meta span{ font-size: 12px; max-width: 57px !important; color: #868686; } .review-text{ font-size: 12px; margin-bottom: 0px; } .review-stars{ font-size: 12px; } .rating-bar-item{ margin-bottom: 2px; } .filter-select{ margin-bottom: 16px; flex-wrap: wrap; justify-content: center; margin-top: 20px; } .rating-box{ padding-bottom: 4px; } .overall-rating h3{ height: 44px; line-height: 44px; } .all-reviews h2{ padding: 0px 20px; } } </style> <div class="comment-container"> <div class="ratings-summary"> <h3>Peringkat Keseluruhan</h3> <div class="rating-box_bom"> <div class="overall-rating"> <div class="overall-rating-text"> <div class="stars-container"> <div class="overall-rating-contact"> <div class="overall-rating-value">5.0</div> <div class="stars"> <span class="star feitian full"> <svg viewBox="0 0 24 24" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" width="24.000000" height="24.000000" fill="none"> <rect id="五角星 1" width="24.000000" height="24.000000" x="0.000000" y="0.000000" /> <path id="矢量 1" d="M12 2.01318L15.2438 8.5874L22.5 9.64209L17.25 14.7608L18.4898 21.9866L12 18.5741L5.51016 21.9866L6.75 14.7608L1.5 9.64209L8.75625 8.5874L12 2.01318Z" fill="rgb(247,181,1)" fill-rule="nonzero" /> </svg> </span> <span class="star feitian full"> <svg viewBox="0 0 24 24" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" width="24.000000" height="24.000000" fill="none"> <rect id="五角星 1" width="24.000000" height="24.000000" x="0.000000" y="0.000000" /> <path id="矢量 1" d="M12 2.01318L15.2438 8.5874L22.5 9.64209L17.25 14.7608L18.4898 21.9866L12 18.5741L5.51016 21.9866L6.75 14.7608L1.5 9.64209L8.75625 8.5874L12 2.01318Z" fill="rgb(247,181,1)" fill-rule="nonzero" /> </svg> </span> <span class="star feitian full"> <svg viewBox="0 0 24 24" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" width="24.000000" height="24.000000" fill="none"> <rect id="五角星 1" width="24.000000" height="24.000000" x="0.000000" y="0.000000" /> <path id="矢量 1" d="M12 2.01318L15.2438 8.5874L22.5 9.64209L17.25 14.7608L18.4898 21.9866L12 18.5741L5.51016 21.9866L6.75 14.7608L1.5 9.64209L8.75625 8.5874L12 2.01318Z" fill="rgb(247,181,1)" fill-rule="nonzero" /> </svg> </span> <span class="star feitian 111 full"> <svg viewBox="0 0 24 24" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" width="24.000000" height="24.000000" fill="none"> <rect id="五角星 1" width="24.000000" height="24.000000" x="0.000000" y="0.000000" /> <path id="矢量 1" d="M12 2.01318L15.2438 8.5874L22.5 9.64209L17.25 14.7608L18.4898 21.9866L12 18.5741L5.51016 21.9866L6.75 14.7608L1.5 9.64209L8.75625 8.5874L12 2.01318Z" fill="rgb(247,181,1)" fill-rule="nonzero" /> </svg> </span> <span class="star feitian full"> <svg viewBox="0 0 24 24" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" width="24.000000" height="24.000000" fill="none"> <rect id="五角星 1" width="24.000000" height="24.000000" x="0.000000" y="0.000000" /> <path id="矢量 1" d="M12 2.01318L15.2438 8.5874L22.5 9.64209L17.25 14.7608L18.4898 21.9866L12 18.5741L5.51016 21.9866L6.75 14.7608L1.5 9.64209L8.75625 8.5874L12 2.01318Z" fill="rgb(247,181,1)" fill-rule="nonzero" /> </svg> </span> </div> </div> <div class="rating-base"> Berdasarkan 50 ulasan untuk pemasok ini </div> </div> <button class="write-review-btn" onclick=Menulis Tinjauan
