96 Serat MPO MTP Optical Patch Panel Enclosure Data Center Sistem Kabel Densitas Tinggi

Detail Cepat Panel Patch Serat Optik 1U

• Kapasitas maksimum: 96 inti
• 24 inti MPO kaset, total 4pcs
• Total 48 pcs LC kopling duplex

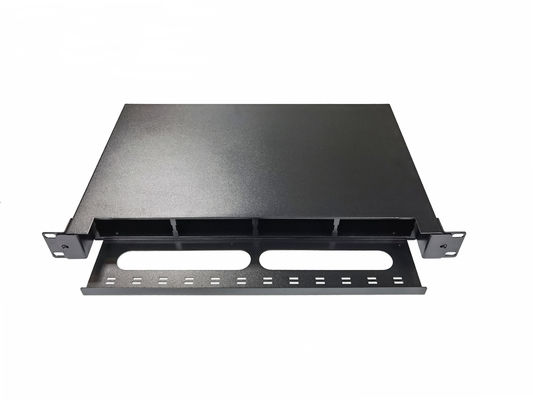

• Panel patch geser rak 1U dengan laci logam

MPO Sliding Drawer Type Fiber optic patch panel adalah peralatan tambahan untuk pusat data dan sistem kabel kepadatan tinggi, kapasitasnya besar dan ukurannya kecil, performa yang baik.Ini adalah ukuran standar 19 inci untuk rak mount rangka distribusi optik, cocok untuk menggunakan kopling dupleks LC.

MPOFitur Panel Patch

• Standar: IEC / EN 61754-7 (konektor MPO) dan TIA-568-B.1-7
• Sistem koneksi modular: Komponen sambungan serat optik yang sudah selesai di pabrik, panjang dan serat optik SM & mm, kabel batang dan kotak modul, pemasangan mudah,Solusi sistem plug and play
• Sistem koneksi kepadatan tinggi: desain kompak, konektor 12 inti, hingga 96 inti serat optik 1U rack mount
• Setelah pabrik pra-terminasi dan pengujian jaminan kualitas dan konsistensi melebihi permintaan 10Gbit
• Terbuat dari lembaran baja bergelombang dingin berkualitas tinggi, dengan penyemprotan elektrostatik

• Metal lemari geser dari lemari splice dan bagian bawah, mudah dan cepat untuk mengoperasikan tanpa membuka tutup
• Operasi depan total dengan penjepit kabel dan area routing, area manajemen serat besar

Spesifikasi Panel Patch MTP

Kabel MMPSpesifikasi konektor serat optik

Panel patch rack mount 1U, cocok untuk frame distriksi optik rack mount standar 19 inci, memasang telinga di kedua sisi untuk dipasang pada ODF.

Kotak serat optik ini terbuat dari baja bergelombang dengan warna hitam dan dengan area pengelolaan serat yang besar di pelat depan.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

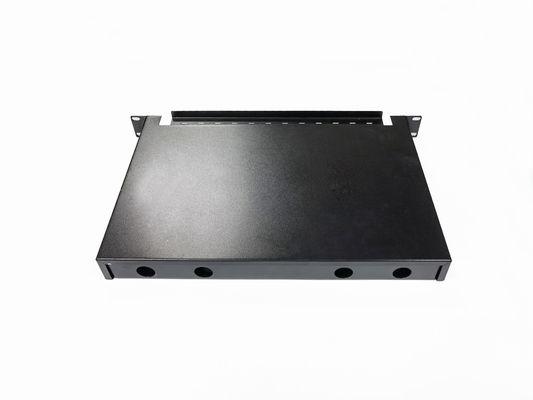

Jumlah masuk kabel dan diameter kabel dapat disesuaikan, semua port dengan kabel penjepit dan perlengkapan internal operasi mudah.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

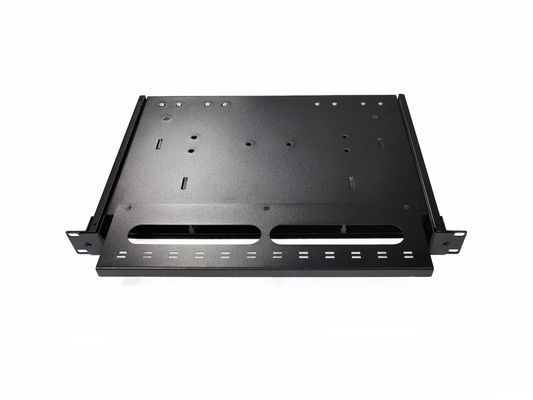

Panel patch serat jenis laci ini dengan baki geser logam di kedua sisi, mudah dioperasikan di depan setelah mengambil seluruh internal keluar, tidak perlu membuka penutup atas.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

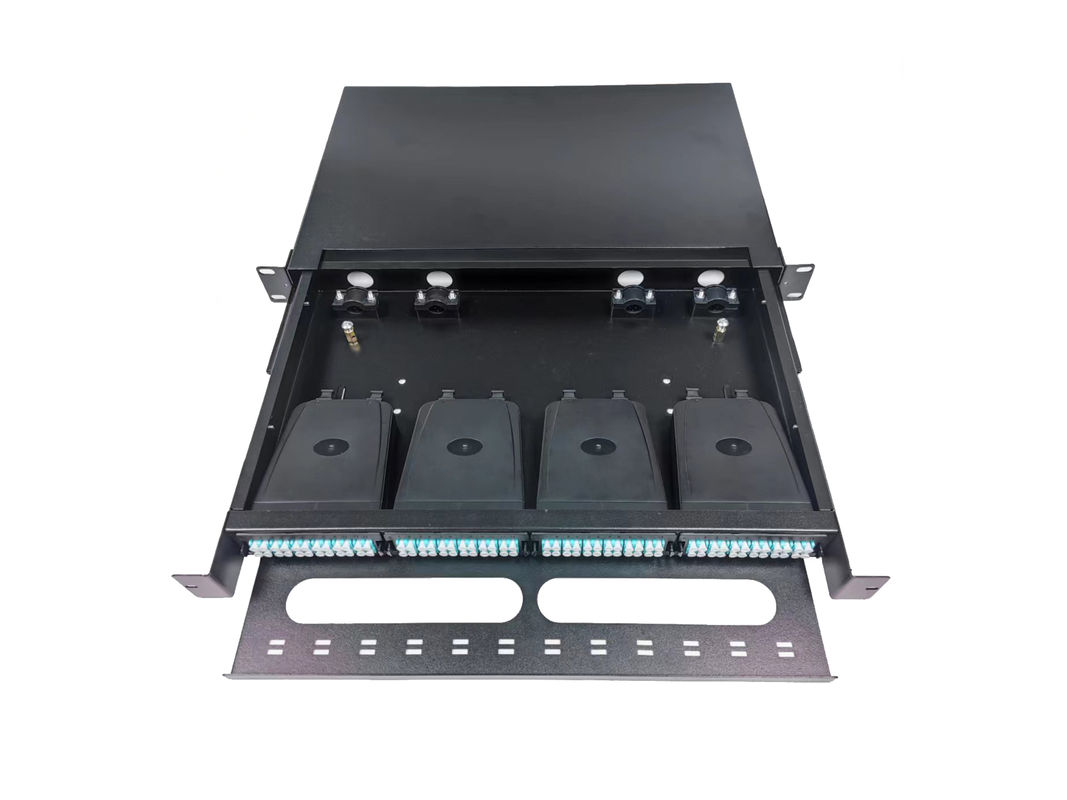

1U rak maksimum menginstal 4pcs MPO kaset, masing-masing modular 24 serat dengan MPO MTP adaptor, MPO LC patch kabel dan LC adaptor.

dapat menggunakan 8fibers, 12fibers atau 24fibers MPO atas permintaan pelanggan.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Kasset mtpItem standar untuk dikonfigurasi

Panel patch ini dapat sepenuhnya memuat dengan 8pcs MPO-mpo truk kabel, 8pcs 12core MPO LC patch kabel perakitan,kabel mpo ke lcAdaptor MPO MTP 8 pcs, LC kopling duplex 12 * 4 = 48 pcs;

Jika pelanggan membutuhkan, pre-terakhir perakitan kabel di pabrik dan mengemas mereka dengan baik sebelum pengiriman.

100% tes sebelum pengiriman, jaminan kualitas.
