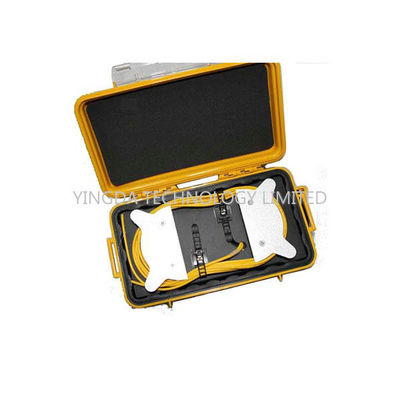

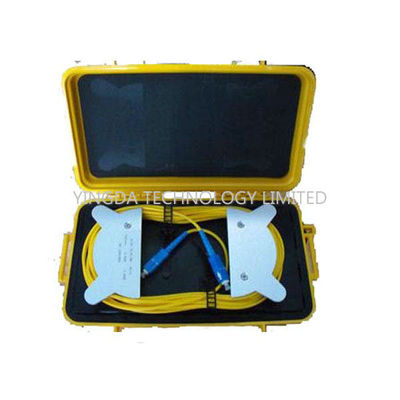

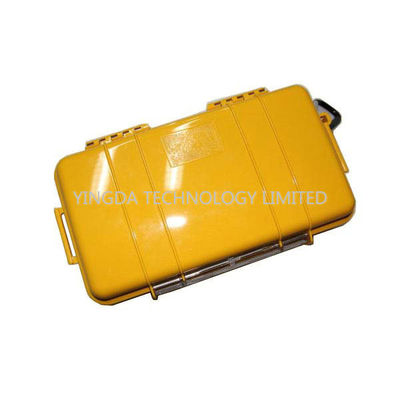

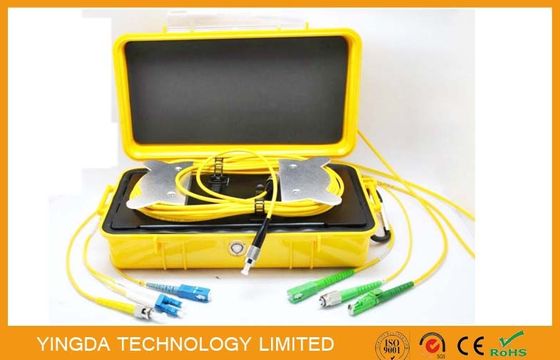

2KM MM 62.5/125 ST LC Fiber Optic OTDR Launch Cable Box Fiber Tool Kits
OTDR Dead Zone Eliminator Fiber Rings
The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s to help
minimize the effects of the OTDR’s launch pulse on measurement uncertainty. Available in many
different configurations: SC, FC, LC, ST and fiber lengths:500M, 1KM, 2KM... etc.
Features
Specifications
|
Length*Width*Height |
9.37" x 5.56" x 2.62" |
|
Material |
SR Polypropylene |
|
Color |
Black/Yellow |
|
Net Weight |
0.75 kg (without fiber) |
|
Operating temperature |
Operating temperature |
|
Typical Loss |
< 1dB @ 1310nm for 1000 meters |
KEEP NOTES:
Ordering Information
LB-A-B-C-D
|
A = Input connector |
B = Output connector |
C = Fiber |
D = Length(km) |
|
FC |
FC |
S–Single mode fiber |
0.5=0.5km |
|
ST |
ST |
M6–Multi mode fiber (62.5/125) |
1=1km |
|
SC |
SC |
M5–Multi mode fiber (50/125) |
2=2km |
|
FCA – FC/APC |
FCA – FC/APC |
|
|
|
SCA – SC/APC |
SCA – SC/APC |
|
|
|
LC |
LC |
|
|
|
MU |
MU |
|
|
