| Nama merek: | YINGDA |
| Nomor Model: | AD-FC-SA01-G |
| MOQ: | 500pcs |
| harga: | Dapat dinegosiasikan |
| Waktu Pengiriman: | 5 working days |
| Ketentuan Pembayaran: | T/T or western Union |

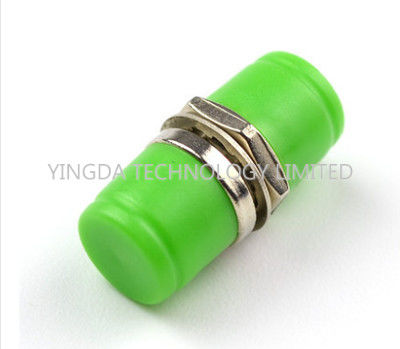

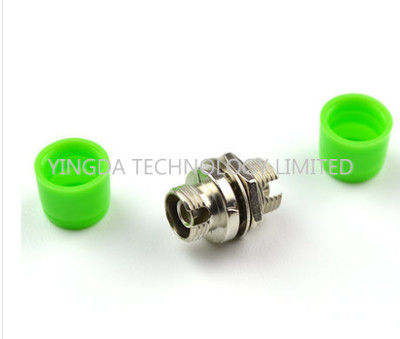

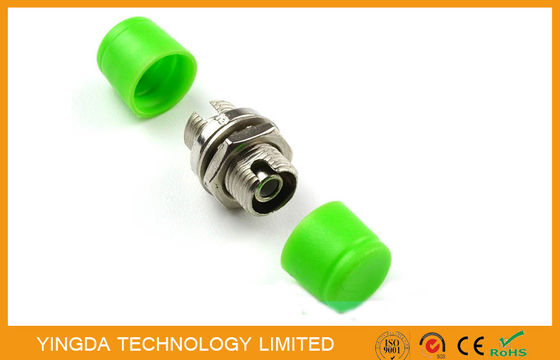

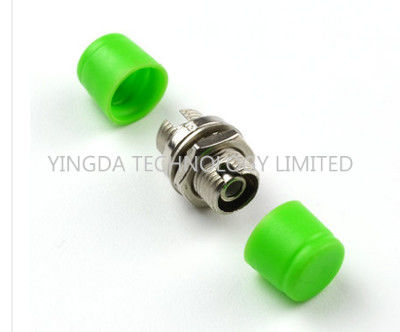

Zinc Alloy FC Fiber Optic Adapter, FC / APC Copper Adapter Coupler Green
FC type
The earliest FC connector was developed by NTT, Japan. The abbreviation of FC is ferrule connector,
which indicates that its external strengthening way is to use metal sleeve, fastening way as the turn
buckle. First, FC type connector, the use of ceramic the butt end of the pin. Such connector has
simple structure, convenient operation, easy, but the dust sensitive optical fiber end face, and prone
to Fresnel reflex, is difficult to improve properties return loss. Later, made improvement for this type
of connector, adopts the butt end of spherical pin (PC), and external structure has not changed, the
insertion loss and return loss performance has improved significantly.
Fiber Optic Adapter called fiber opptic couple, it is a kind of connector whose both ends can be
inserted the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000 to make
hem interchange, and widely used in optical distribution frame(ODF), optical Fiber communication
equipment, instruments, etc.It is superior performance, stable and reliable.
Features
Specification
|
Item |
Value |
|
Wavelength |
1200-1600nm |
|
Polish method |
UPC,PC,APC |
|
IL |
≤0.2dB |
|
Max. IL |
≤0.3dB |
|
Repeatability |
≤0.1dB |
|
Interchangeability |
≤0.2dB |
|
Sleeve material |
Cermic or metal |
|
Working/Storage temperature |
-40~+85℃ |
|
Matings time |
>1000 |
|
Standard |
Bellcore TA-NWT-001221/001209 |
Application
Order information
|
Endface |
Fiber mode |
Fiber core |
Sleeve |
|
PC |
Multi mode |
simplex |
Cermic |
|
UPC |
Single mode |
duplex |
Phosphor bronze |
FC Adapter Small D hole More Details:
