| Nama merek: | YINGDA |
| Nomor Model: | AD-LCA-SX |
| MOQ: | 500pcs |
| harga: | Dapat dinegosiasikan |
| Waktu Pengiriman: | 5 working days |
| Ketentuan Pembayaran: | T/T or western Union |

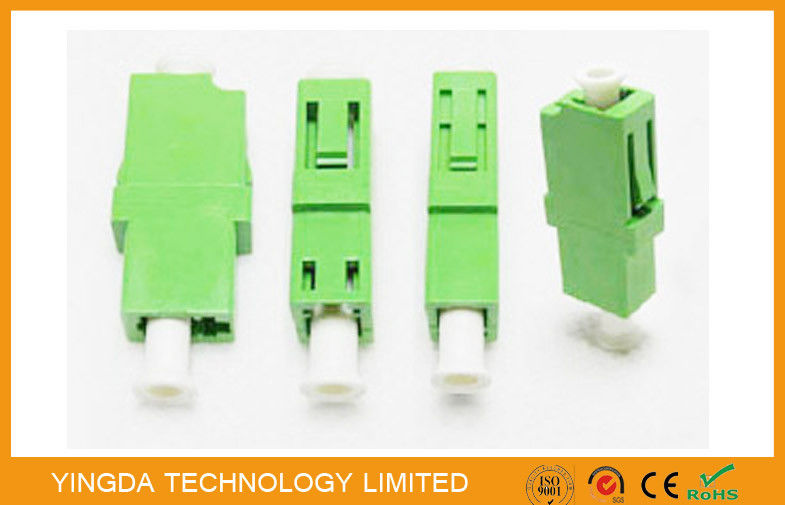

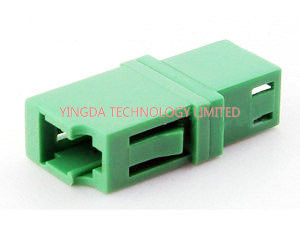

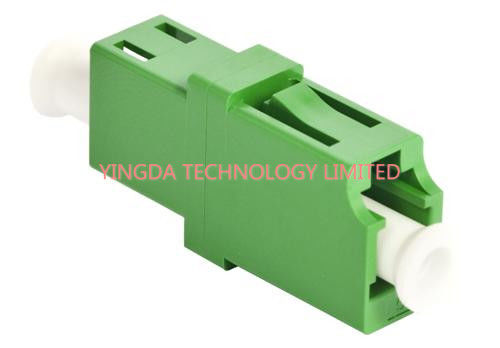

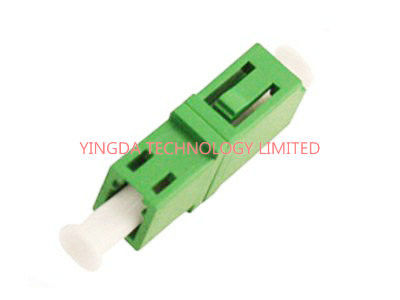

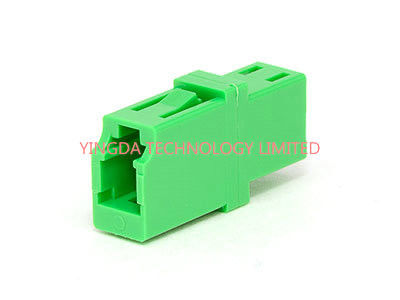

LC / APC Simplex Green Single Mode Adapter Adaptor, Plastic LC Fiber Coupler
Institute of LC type connector is a famous BELL (BELL) research and development, using the
convenient operation modular jack (RJ) latch mechanism is made. The pin and the size of the
sleeve is adopted by the general SC, FC, half size of 1.25 MM. This can increase the density
of optical fiber connector in the optical fiber distribution frame. At present, in terms of single-
mode SFF, LC type of connector has occupied the dominant position, actual application in the
field of multimode is also growing rapidly.
This coupler provides a solution for extending a current run of fiber optic cabling. This coupler
is constructed from high grade plastic and has been designed and engineered for durability
and a long life.
Features
Application
Specification
|
Item |
SM |
|
|
MM |
|
PC |
UPC |
APC |
||
|
Ferrule type |
Convex spherical |
big chamfer or step |
Convex spherical |
|
|
Ferrule ID (um) |
125 |
127 |
||
|
Main body material |
PBT or ABS |
|||
|
Connector type(mm) |
0.9/2.0/3.0mm, simplex, duplex |
|||
|
Operating temperature (°C) |
-40 ~+85 |
|||
|
Storage temperature (°C) |
-40 ~+85 |
|||
Order information
|
Endface |
Fiber mode |
Fiber core |
Sleeve |
|
PC |
Multi mode |
simplex |
Cermic |
|
UPC |
Single mode |
duplex |
Phosphor bronze |
|
APC |
|
quad |
|
video
video
|
|
