| Nama merek: | YINGDA |
| Nomor Model: | AD-LCS-DX |
| MOQ: | 1000pcs |
| harga: | Dapat dinegosiasikan |
| Waktu Pengiriman: | 5 working days |
| Ketentuan Pembayaran: | T/T or western Union |

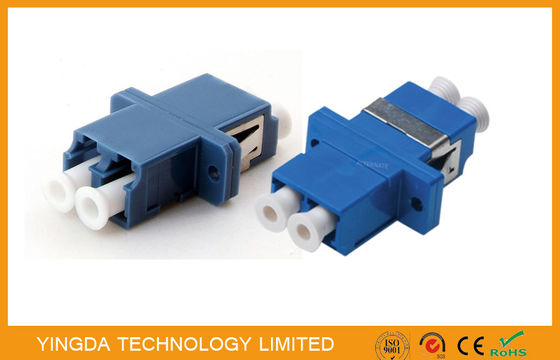

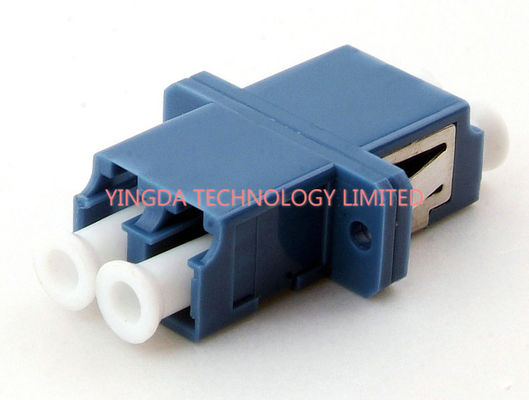

PBT Fiber Optic Adapter LC Duplex SC Footprint Type Blue Single Mode Telecom Standard
Features
Application
Specification
|
Item |
Single mode |
multimode |
||
|
Polish |
UPC |
APC |
UPC |
PC |
|
Insertion loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥50dB |
≥35dB |
|
Max. attenuation |
0.4dB@1310nm 0.3dB@1550nm |
0.4dB@1310nm 0.3dB@1550nm |
3.0dB@850nm 1.2dB@1300nm |
3.0dB@850nm 1.2dB@1300nm |
|
attenuation |
Single mode:1310nm≤0.35dB/km;1550nm≤0.25dB/km multimode:850nm≤3.0dB/km;1300nm≤1.0dB/km |
|||
|
durability |
≥1000 / Matings |
|||
|
Working temperature |
-30℃~ +70℃ |
|||
Note: the parameters in the table for reference purposes only, if the numerical change without notice.
Order information
1. End face polish: PC, UPC. APC
2. Cable type; single mode (SM= 9/125) , multimode (MM= 50/125 or 62.5/125)OM3 ;OM4
3. Cable capacity: Simplex or Duplex
4. Cable jacket: PVC,LSZH ,PU...
5. Cable diameter: 0.9mm 1.6mm 2.0mm 3.0mm 4.0mm......
6. Cable length: L=1M,2M,3M `````````(M=Meter) or customized
7. Cable color: customized

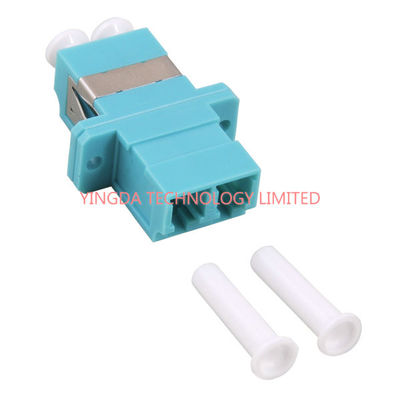

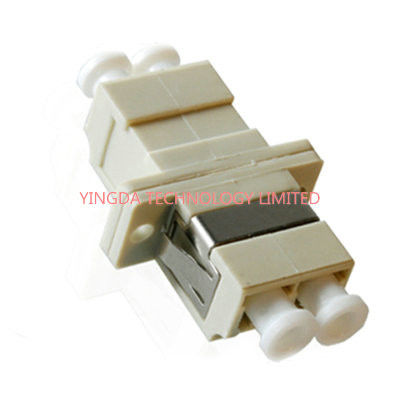

All kinds of LC adapter can be choosed:
Simplex, Duplex, Quad, with flange or without flange,shutter type,etc.
More product show:
video
video
video
|
|
