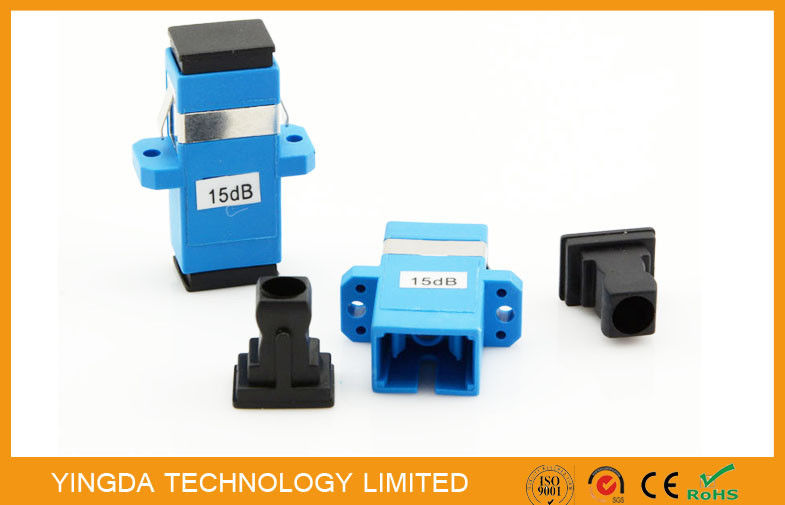

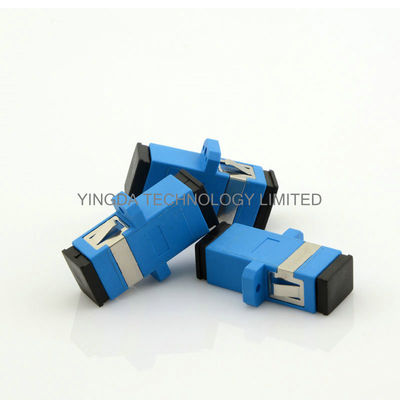

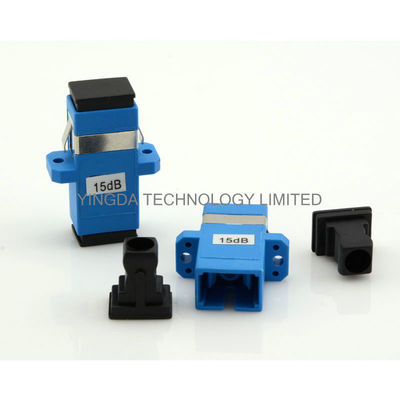

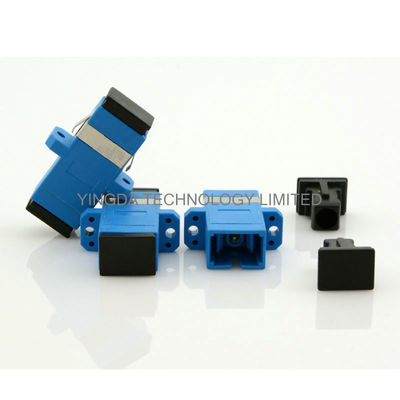

SC Fiber Optic Attenuator 15dB For PON Network 1200 - 1650nm

MOQ:	100PCS
harga:	Dapat dinegosiasikan
Kemasan standar:	50 pc / plastic blister box or
Delivery period:	3-5 days
metode pembayaran:	T/T or western Union
Kapasitas Pasokan:	50,000pcs per month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

Model Number

ATTN-SCS-01-B15

Attenuation:

15 dB

wavelength range:

1200-1650nm

test wavelength:

1310nm /1550nm

material:

plastic

Additional loss:

0.2dB

Working temperature::

-40～+75 (℃)

Fiber optic type:

single-mode

standard:

GR910, IEC

connector:

SC FC LC ST E2000 MU for choose

connector color:

Nama produk:

adaptor jaringan serat, kopling serat optik, adaptor konverter media, attenuator gelombang mikro, at

Menyoroti:

build out attenuator

inline optical attenuator

Deskripsi Produk

CATV SC Attenuator 10 dB Optical Fiber Single Mode SM, SC FC LC ST MU

Fixed optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety

of optical fiber transmission line, high precision attenuation, stable and reliable performance.

Performance characteristics have no relationship with wavelength change, can realize the adapter

and attenuator both functions.

Due to its attenuation accuracy, high additinal loss,it is used in optical distribution frame, optical

fiber network system, the low speed optical fiber transmission system.

Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable

(VOA) type, according to connectors, can have MU, SC, ST, FC, LC etc..

From the microwave network point of view, attenuator is a two port lossy microwave networks.

It belongs to pass type microwave components.

FEATURES

Wavelength Independent
Low ripple
Excellent environmental stability
Design certified to more than 200mW continuous
Power handling capacity with no degradation in performances
Backreflection performance to < -55dB available
for UPC and < -60dB available for APC
Polarization insensitive

APPLICATIONS

Long Haul Telecommunication
Fiber in the Loop (FITL)
Local Area Networks (LAN)
Cable TV & Video distribution
Passive Optical Networks
Network Testing

Specification

Parameter	Condition	Value [dB]
Parameter	Condition	Min	Typical	Max
Attenuation			1 ~ 10
Attenuation			15, 20
Return Loss	SPC	> 40	> 45
	UPC	> 50	> 55
	APC	> 60	> 65
Attenuation Accuracy	1 ~ 10		±0.5
Attenuation Accuracy	15 ~ 20		±1.0
Operating Wavelength [nm]	1310 / 1550
Operating Temperature	-40℃ ~ +85℃
Humidity	75℃, RH 95%

SC Fiber Optic Attenuator 15dB For PON Network 1200 - 1650nm 0
