| Nama merek: | YINGDA |
| Nomor Model: | ATTN-FCS-01-B03 |
| MOQ: | 100PCS |
| harga: | Dapat dinegosiasikan |
| Waktu Pengiriman: | 3-5 days |
| Ketentuan Pembayaran: | T/T or western Union |

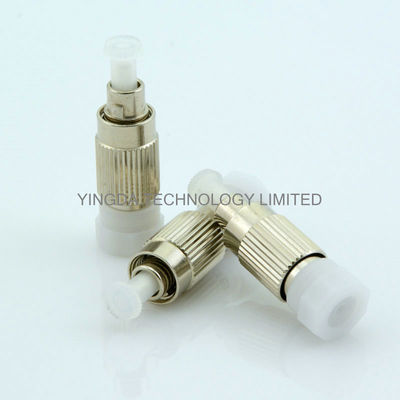

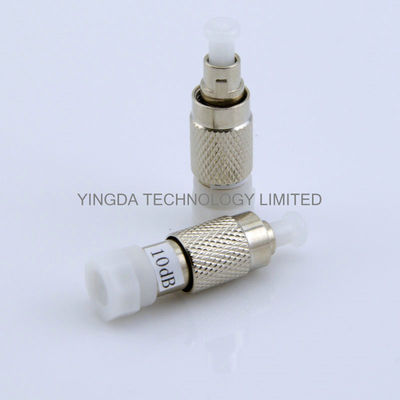

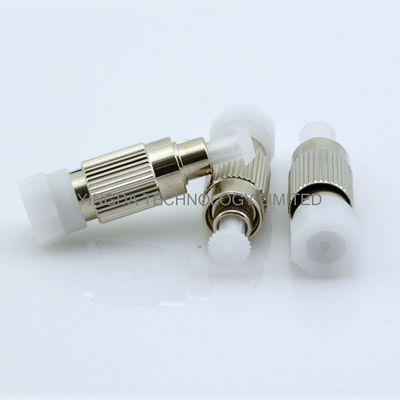

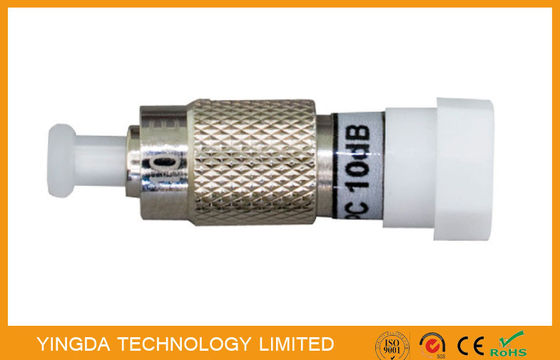

FC Plug-in Attenuator 10dB, Build Out Attenuator FC/PC 10dB Female to Male
Optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety of
optical fiber transmission line, high precision attenuation, stable and reliable performance.
Performance characteristics have no relationship with wavelength change, can realize the
adapter and attenuator both functions.
YINGDA TECHNOLOGY LIMITED provide high quality of Male to Female Plug-in type fixed optical
attenuator, attenuation value 1dB ~ 20dB,use imported fiber with light absorbing metal ion, with
superior environmental stability and low reflectivity. The front end of attenuator is the male head,
can directly insert into the adapter of the receiving equipment or distribution panel. Its back-end
is female connector, connect with the jumper .
Male and female type (M-F) optical fiber attenuator has SC, FC, ST, LC, MU,etc.
Features:
Application
1.Optic-fiber Communication Systems
2.Optical Fiber Sensor
3.Optical Fiber Test Equipment
4.Optic-fiber CATV
Specification
|
Item |
Standard |
Wavelength Flattened |
Broadband |
|
Operating Wavelength(nm) |
1310 or 1550 |
1310/1550 |
|
|
Bandwidth(nm) |
±20 |
±40 |
|
|
Attenuation value (dB) |
1~30 |
||
|
Return Loss (dB) |
≥40 |
||
|
Operating Temperature oC |
-40~+85 |
||
|
Storage Temperature oC |
-40~+85 |
||
|
Industry Standard |
Telcordia TA-NWT-001209 |
||
|
|
