Variable Fiber Optic Attenuator VOA SC ST Connector SM UPC APC PC 850nm
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Attenuation | 0-30dB Adjustable | test wavelength | 1310nm, 1550nm,850nm |
|---|---|---|---|
| body material | metal | Additional loss | 0.1dB |
| Working temperature | -40～+85 (℃) | Fiber optic type | single-mode,multimode |
| connector type | SC ST | polish | UPC APC PC |
| house color | green,blue, beige | ||
| Cahaya Tinggi | build out attenuator,inline optical attenuator |
||
Deskripsi Produk
LC Mechanical Variable Attenuator, MVOA Attenuator 0-30dB LC/PC VOA Attenuator
LC Mechanical variable optical attenuator is generally used in optical measurement. In the when
measure optical receiver sensitivity, usually place in the optical receiver input to adjust receiving
light power. It is in the middle of fiber connector, suitable for all kinds of fibre optic connector with
all high performance of connectors.
When use optical attenuator, please keep the environment clean and dry, put on the dust cap
when not in use, handle with care, strictly forbid collision.
Main usage:
(1) to control the power level: the output power of the vibration control in microwave super heterodyne
receiver, to get the best noise coefficient and frequency conversion loss, then get the best reception.
In the microwave receiver, automatic gain control, improve dynamic range.
(2) decoupling components: as to the coupling element between the oscillator and the load.
(3) the relative standard: as a comparison of the relative standard of power level.
(4) jump attenuator in radar anti jamming: it is a variable attenuator whose attenuation value
can mutate,usually without introducing attenuation, encountered outside interference, a sudden
increase in attenuation.
Main features
- Made of attenuation optical fiber, excellent performance
- Simple structure, compact size, easy to install
- Stable performance, high reliability
- Suitable for 1260 ~ 1650nm wide wavelength
- Low PDL
- Attenuation 1dB to 30dB
- Compact size, light weight
- Low reflection loss
- High power tolerance,long-term stability
- Independent of the wavelength effect
- Precisely control attenuation range
- Simple operation
- Meet the GR910
Application:
- EDFA power amplifier
- The power balance in the system
- CATV
- Optical add-drop multiplexer in the optical power regulator
Specification:
|
Parameter |
Condition |
Value |
|
Attenuation(dB) |
UPC |
1~30 |
|
APC |
||
|
Return loss(dB) |
UPC |
>50 |
|
APC |
>60 |
|
|
Operating wavelength(nm) |
1310, 1550, 1240, 1600 |
|
|
Attenuation accuracy |
1~4dB |
≤0.5dB |
|
5~30dB |
<10% |
|
|
Operating temperature() |
- |
-40 ~ +75 |
|
Storage temperature() |
- |
-40 ~ +85 |
|
Polarization Dependent Loss(dB) |
- |
<0.2 |
|
Relative humidity (%) |
75 |
95 |
|
Vibration(dB) |
10 ~55,2Hrs |
∆IL≤0.2 |
|
Impact(dB) |
1.5m,5 drops |
∆IL≤0.2 |

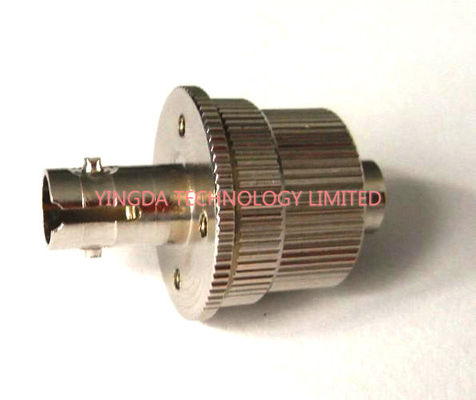

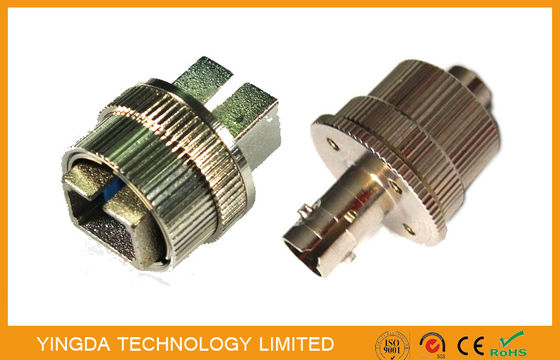

ST MVOA attenuator, metal 0-30dB variable adjustable fiber optic attenuator

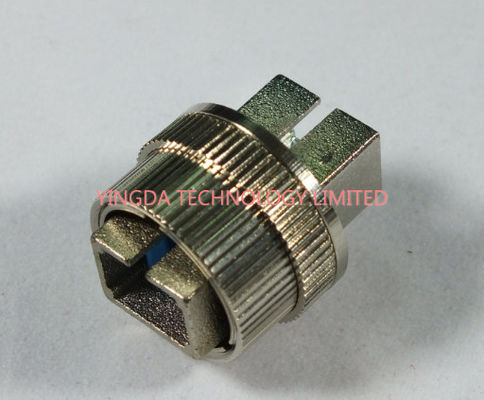

SC/PC, SC/APC MVOA attenuator, metal 0-30dB Mechanical adjustable fiber optic attenuator
