Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks
  • Nama
  • Nama
  • Nama
  • Nama

Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks

MOQ: 100 pcs
harga: 0.18USD-4.29USD
Kemasan standar: 1pc / box, 10pcs / carton box
Delivery period: 5days after payment
Kapasitas Pasokan: 500,000 pcs per month
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
ISO SGS ROHS
Model Number
WTB-S04
material:
metal
color:
black
max capacity:
4 fibers
adapter:
SC/LC
cable ports:
2 Pcs
application:
FTTH FTTX FTTB ODN PON network
dimension:
16*10*3.5cm
thickness:
0.6, 0.8, 1.0mm
Menyoroti:

serat optik kotak terminal

,

serat optik kotak persimpangan

Deskripsi Produk

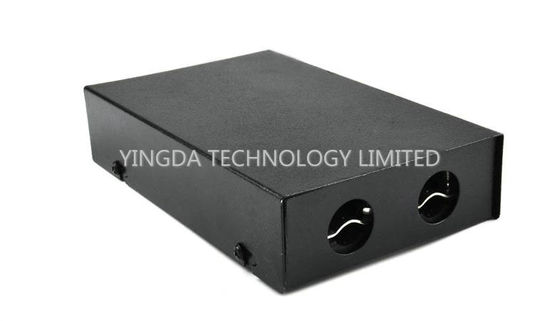

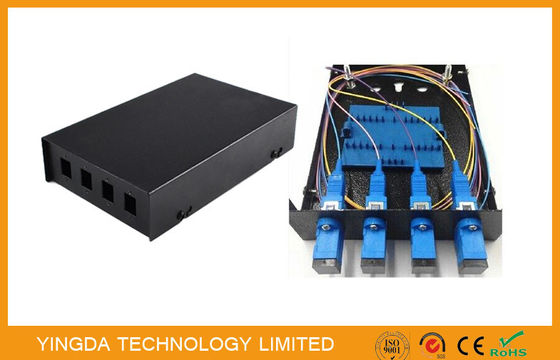

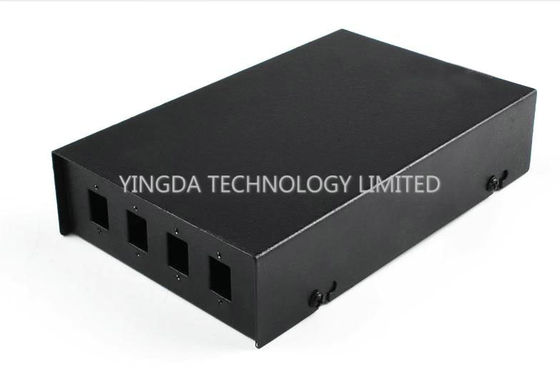

Fully Load 4 Core SC / LC Fiber Optic Termination Box , 4 Port Wall Mount Box





Description



Fiber Optic Cable terminal box is use for connecting small capacity cable with the terminal.

It has the function of fixing fiber optic cable and welding.

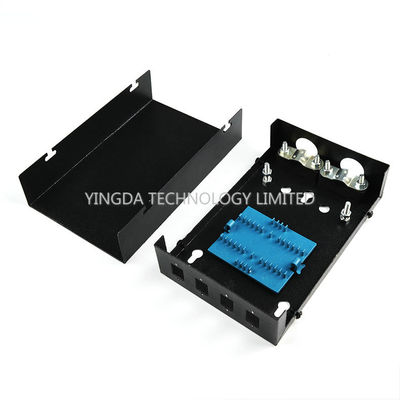

Features

  1. Electrostatic spraying, beautiful appearance, easy to operate.
  2. Equip with cable fixed device, splice tray, thread ring.
  3. Splice tray use superposition structure,max capacity 96core,ribbon fiber up to144cores.
  4. It can insulate the cable metal parts and the terminal box shell and with grounding device
  5. Have enough space for terminal placement and remaining fiber storage.
  6. Size is customize



Specification



Model

Capacity

/ core

Size

/ mm

Remark

WTB-S04

4

190*100*35
  1. White/Black;
  2. Box body for cold-rolled sheet,
  3. surface electrostatic spraying,
  4. 4/8 /12/24 adapter exports,
  5. suitable for FC, SC, ST

WTB-S08

8

260*130*40

WTB-S12

12

268*138*46

WTB-S24

24

265*140*60

WTB-S8P

8

265*140*45

Plastic SC adapter output 8ports





Technical parameters



Environment temperature

-25~+45°C

Relative humidity:

≤85%( 30°C)

Atmosphere pressure

70-106KPa

Insulated Resistance

≥2×10MΩ/500V (DC)

Intensity:

≤15KV(DC)/1min no spark-over and no flying arc

Bending radium

≥40mm



ApplicatIon

  • Telecommunications
  • Local Area Networks
  •  FTTH deployment
  • CATV

Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks 0Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks 1Custom Fully Load 4 Core SC LC Fiber Optic Termination Box For Local Area Networks 2
