Kit Alat Serat
Created with Pixso. Bottle Fiber Tool Kits / Transparent Fiber Optic Matching Gel Oil 30 ML

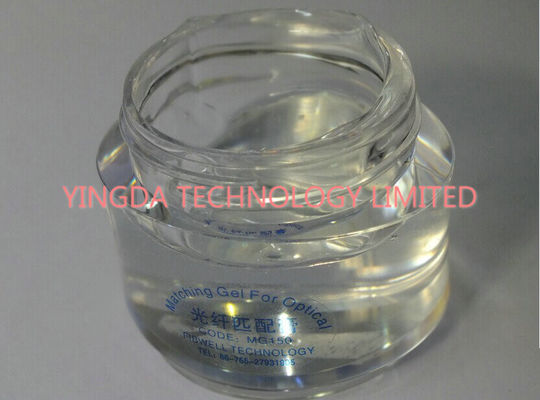

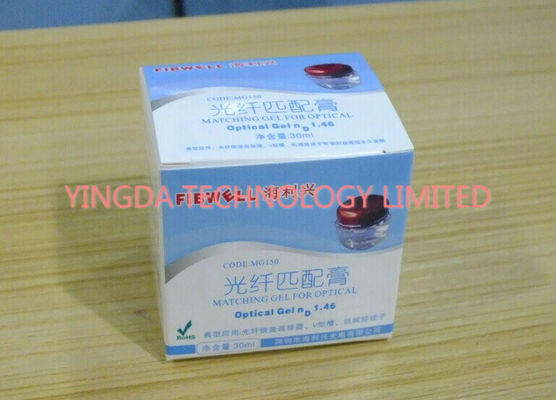

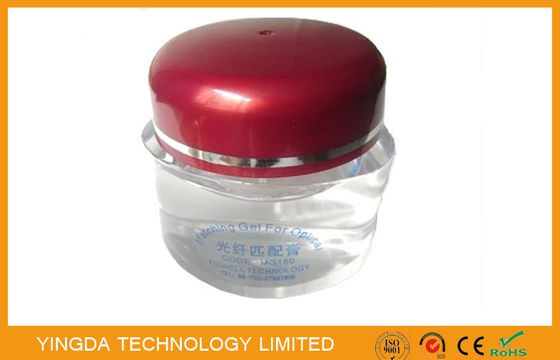

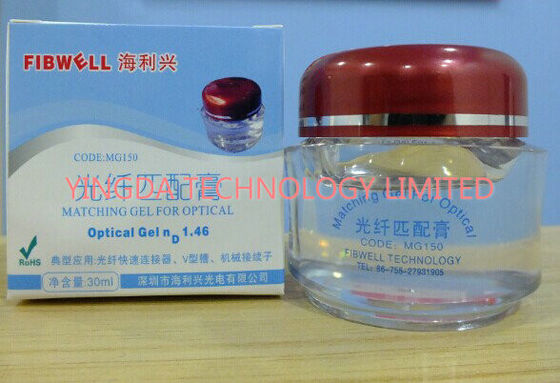

Bottle Fiber Tool Kits / Transparent Fiber Optic Matching Gel Oil 30 ML

Nama merek: YINGDA
Nomor Model: MG150
MOQ: 2 PCS
harga: Dapat dinegosiasikan
Waktu Pengiriman: 5days after pay
Ketentuan Pembayaran: T/T or western Union
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
ISO,SGS
name:
matching gel oil
type:
fiber optic
volume:
30ml
color:
transparent
Packaging Details:
1pc / box
Supply Ability:
50,000pcs per month
Menyoroti:

fiber optic tool kits

,

fiber polishing film

Deskripsi Produk

Transparent Fiber Optic Matching Gel Oil 30 ML / Bottle Fiber Tool Kits





Optical fiber matching gel paste is a paste compound  which is soft, non sticky, water blocking

not easy to flow, non-toxicharmless, glittering and translucent clear, the refractive index is similar

with optical fiber and silicon glass, oil separation rate is zero, poor volatile performance, has good

oxidation resistance and long term stability,it is widely applied to optical fiber communication and

lighting industry.



Typical properties:

  • 1.46 refractive index ,similar to fiber and silicon glass
  • Transparent, not easy to flow, effective at > 350nm optical transmission
  • High purity, non irritating, non-toxicharmless, does not affect the sensitive semiconductor or metal
  • The oil separation rate is zero, poor volatile performance, has good oxidation resistance and long term stability
  • Wide applicable temperature: -40 °C ~ +150 °C



Typical applications:

  1. Can reduce the Fresnel reflection loss caused between the fiber end face and the air.
  2. The optical return loss test and other occasions, can separate sectional air reflection
  3. The application of bare optical fiber connection and connection (such as a test or repair)
  4. V-groove, mechanical connector (mechanical splicer), quick connector(field installation
  5. connector) and other temporary connection or permanent connection.
  6. MT-RJ, MPO, MT optical fiber connector
  7. The lighting applications



Storage: keep in a cool place and sealed (20 °C)

Specificationsnet 30ml bottle

Warranty period: 24 months, production date: see the bottom of the bottle



Note: do not place where children is easy to take place, to avoid eating



Bottle Fiber Tool Kits / Transparent Fiber Optic Matching Gel Oil 30 ML 0Bottle Fiber Tool Kits / Transparent Fiber Optic Matching Gel Oil 30 ML 1Bottle Fiber Tool Kits / Transparent Fiber Optic Matching Gel Oil 30 ML 2
