4 Core Fiber Optic Termination Box FTB
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xmaterial | ABS or PC | color | white |
---|---|---|---|
capacity | 2 Core | adapter | 2 pcs SC simplex, 2 pcs LC duplex |
output port | adapter outport | size | 90*120*25 mm |
cable diameter | <6mm | application | FTTH FTTX FTTB GPON network |
cable port | 1in 1 out | feature | flame retardant |
Cahaya Tinggi | serat optik kotak terminal,serat optik kotak persimpangan |

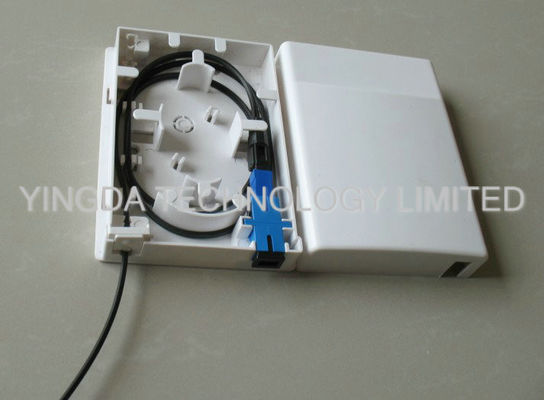

ABS Slide In Lock Fiber Optic Termination Box FTB, 4 Core Terminal Box
Description
Plastic ABS material socket panel FTB86D is a compact size fiber terminal for use at the final fiber
termination point in the customer premises. It provide mechanical protection and managed fiber
control in an attractive format. A variety of possible fiber termination techniques are accommodated.
Features
- Splicing to factory terminated pigtails
- Positive fiber management
- Direct termination with field installation connectors
- Attractive design for indoor use
- Can hold up to 4 mechanical splicer, fusion splice protectors or mechanical SC connectors
- Splice cable to cable
- Compatible with 2 SC simplex adapters/LC duplex adapters
- Multiple cable entry points(cable diameter ≤6mm
- Can be wall mounted and mounted on wall boxes with fixation points of 60mm
Specification
Model |
Socket panel FTB86D |
Dimension/mm |
90*120*25 |
Cable diameter/mm |
Φ3 |
Cable ports |
2 |
Max capacity of splice |
1 single fiber |
Pack information
Model |
Carton size/cm |
Carton qty/pc |
G.W./kg |
FTB86D |
53*39*53.5 |
260 |
23 |
More product show:

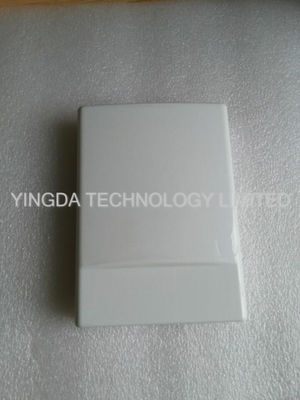

1. ABS empty box white color
2. The width of the customer terminal box

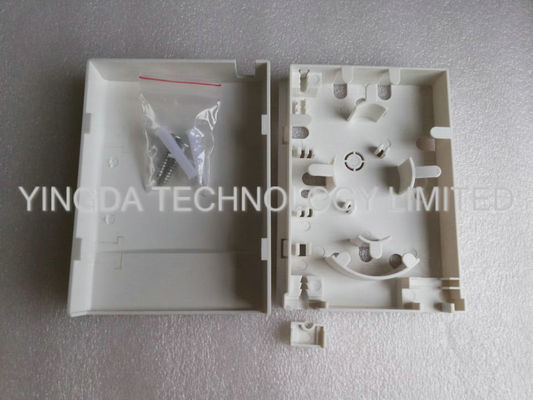

3. end user terminal box inner size
