Outdoor Fiber Optic Pigtail SC
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| connector | SC, FC | fiber count | 2 Cores |
|---|---|---|---|
| insertion loss | <0.3dB | fiber type | singlemode 9/125um OS2 |
| package | plastic bag / carton box | cable color | black |
| strength member | waterproof cable | ||
| Cahaya Tinggi | pigtail serat optik,tahan air dikepang |
||
Deskripsi Produk

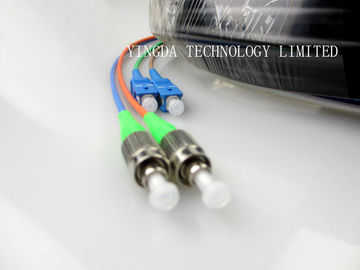

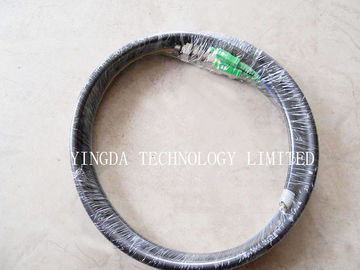

Outdoor Waterproof Fiber Optic Pigtail SC FC / APC 4 Core Patch Cord
Waterproof pigtail cable is to connect the backbone optical cable and optical receiver. It is made
of high quality connector components and high quality waterproof cable and anti-corrosion parts.
Its is mainly used for field optical transceiver access, strong adaptability to the environment, one
end with an optical connector and durable waterproof metal or aluminum connector.The installation
is convenient, reliable, can resist all kinds of harsh environment and long service life, outer jacket
high toughness, high tensile strength, good grounding device. According to customer requirements,
can be assembled connector like: FC, SC, ST, LC, MU, SMA,etc.
Application
Fiber jumper products are widely applied to communication room, FTTH, local area network,
optical fiber sensor, optical fiber communication system, optical fiber connection transmission
equipment, national defense,etc. It is suitable for the cable TV network, telecommunication
network, computer network and optical fiber test equipment. Mainly are:
- CATV,LAN network,
- Equipment terminal
- Multimedia connection
- Data transmission network
- Fiber Optic Access network
Features
- Reliable performance,wide application
- High tensile strength, corrosion resistance, suitable for harsh field environment
- Convenience construction, high safety, tighten the connector nut not make the cable and pigtail rotate
- APC /UPC grinding, special process connector end face
- Low insertion loss, high return loss
Technical parameters
|
Item |
Test condition |
Single mode |
Multi- mode |
||
|
Optical characteristics |
Insertion loss |
UPC |
SM:1310nm/1550nm MM:850nm/1300nm |
≤0.2dB |
≤0.3dB |
|
APC |
1310nm/1550nm |
≤0.3dB |
|
||
|
Return loss |
UPC |
SM:1310nm/1550nm MM:850nm/1300nm |
≥55 dB |
≥35 dB |
|
|
APC |
1310nm/1550nm |
≥65 dB |
|
||
|
mechanical properties (additional loss) |
Impact test |
1.8 height,8times |
<0.1 dB |
<0.1 dB |
|
|
Vibration test |
10-60Hz,1mm Full amplitude |
<0.1 dB |
<0.1 dB |
||
|
Plug life |
1000 times |
<0.1 dB |
<0.1 dB |
||
|
Tensile strength |
>100N |
<0.1 dB |
<0.1 dB |
||
|
Environmental characteristics (additional loss)
|
High and low temperature cycling test |
－25℃～＋70℃,2 recycle |
<0.2 dB |
<0.2 dB |
|
|
High temperature test |
+80℃,2hours |
<0.2 dB |
<0.2 dB |
||
|
Low temperature test |
-40℃,2hours |
<0.2 dB |
<0.2 dB |
||
|
Damp heat test |
+40℃,90-95%RH,2hours |
<0.2 dB |
<0.2 dB |
||
Order information
1. Connector: FC,ST,SC,LC,MU,MPO,E2000,SMA etc,
2. End face: PC,UPC,APC
3. Cable diameter: Ф0.9,Ф2,Ф3
4. Fiber count: 1core,2core,4core,6core,8core,12core,etc.
5. Fiber type: G652B, G652D, G655, G657A, G657A2, 50/125, 62.5/125,
OM3(50/125-150), OM4(50/125-300), etc
6. Connector color: blue, beige, green,aqua.
7. Boot color: gray, blue, white, red, black, green
8. Cable length: on customer request
