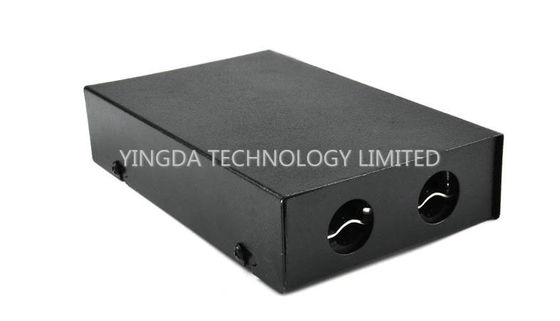

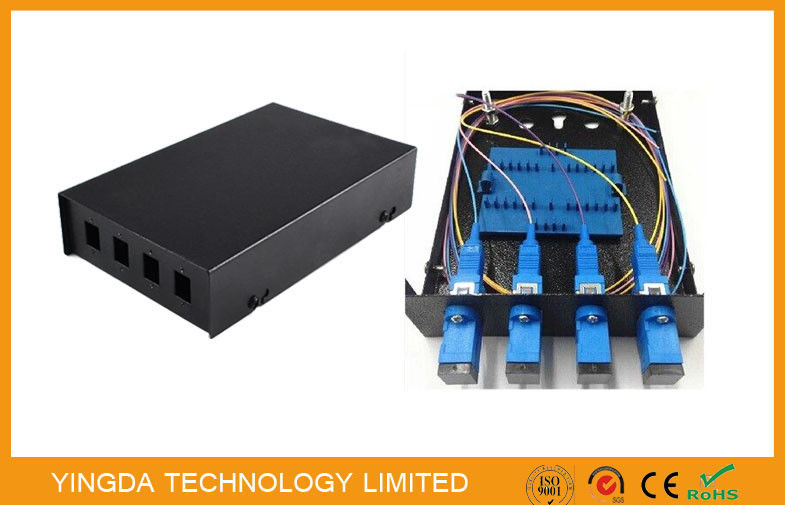

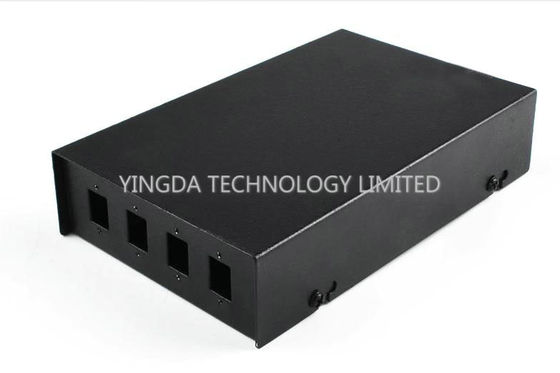

SC / LC Fiber Optic Termination Box 4 Port

Name: SC / LC Fiber Optic Termination Box 4 Port
Brand: YINGDA TECHNOLOGY LIMITED
SKU: WTB-S04
Price: Dapat dinegosiasikan USD
Availability: InStock

Nama merek:	YINGDA
Nomor Model:	WTB-S04
MOQ:	100 pcs
harga:	Dapat dinegosiasikan
Waktu Pengiriman:	5days after payment

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO SGS ROHS

material:

metal

color:

black

max capacity:

4 fibers

adapter:

SC/LC

cable ports:

2 Pcs

application:

FTTH FTTX FTTB ODN PON network

dimension:

16*10*3.5cm

thickness:

0.6, 0.8, 1.0mm

Packaging Details:

1pc / box, 10pcs / carton box

Supply Ability:

500,000 pcs per month

Menyoroti:

serat optik kotak terminal

serat optik distribusi kotak

Deskripsi Produk

SC / LC Fiber Optic Termination Box , 4 Port Wall Mount Terminal Box 4 Fibers

Description

Fiber Optic Cable terminal box is use for connecting small capacity cable with the terminal.

It has the function of fixing fiber optic cable and welding.

Features

Electrostatic spraying, beautiful appearance, easy to operate.
Equip with cable fixed device, splice tray, thread ring.
Splice tray use superposition structure,max capacity 96core,ribbon fiber up to144cores.
It can insulate the cable metal parts and the terminal box shell and with grounding device
Have enough space for terminal placement and remaining fiber storage.
Size is customize

Specification

Model	Capacity / core	Size / mm	Remark
WTB-S04	4	19010035	White/Black; Box body for cold-rolled sheet, surface electrostatic spraying, 4/8 /12/24 adapter exports, suitable for FC, SC, ST
WTB-S08	8	26013040
WTB-S12	12	26813846
WTB-S24	24	26514060
WTB-S8P	8	26514045	Plastic SC adapter output 8ports

Technical parameters

Environment temperature	-25~+45°C
Relative humidity:	≤85%( 30°C)
Atmosphere pressure	70-106KPa
Insulated Resistance	≥2×10MΩ/500V (DC)
Intensity:	≤15KV(DC)/1min no spark-over and no flying arc
Bending radium	≥40mm

ApplicatIon

Telecommunications
Local Area Networks
FTTH deployment
CATV

SC / LC Fiber Optic Termination Box 4 Port 0
