96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box
  • Nama
  • Nama
  • Nama

96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box

MOQ: 100 PCS
harga: Dapat dinegosiasikan
Kemasan standar: 1pc / bag, 10pcs / carton box
Periode Pengiriman: 5days after pay
metode pembayaran: T/T or western Union
Kapasitas Pasokan: 50,000pcs per month
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
ISO,SGS
Model Number
H003
Capacity:
96cores
material:
PC
Cable port:
2pcs
color:
black
sealing:
rubber seal
splice tray:
4pcs
dimension:
280x200x90 (mm)
cable diameter:
Φ8—Φ14 (mm)
Menyoroti:

fiber optic splice enclosure

,

fiber optic joint closure

Deskripsi Produk

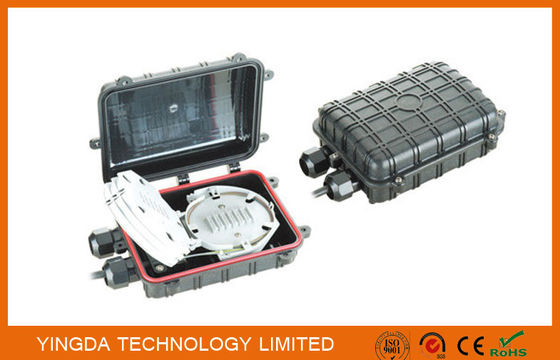

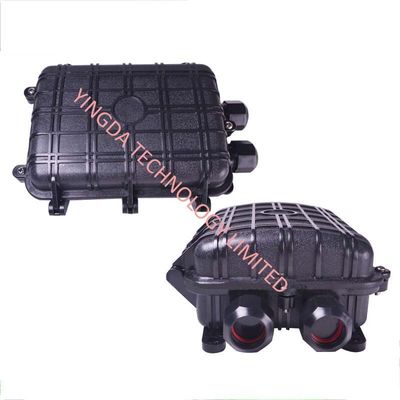

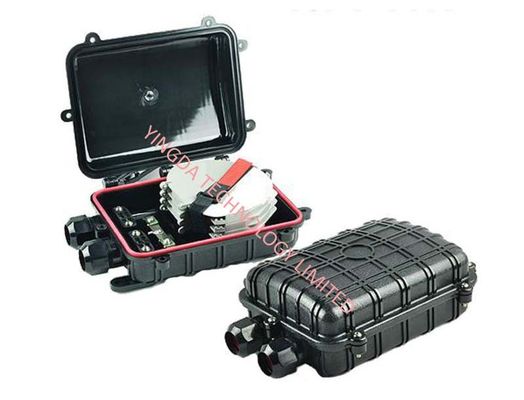

Horizontal Fiber Optic Joint Closure, Pole Mount Closure 96 Cores,

Fiber Optic Junction Box H003





Features

  1. Compact size, large capacity to 96 Fibers
  2. Easy to re-enter and repair
  3. 2pc cable exit and entry ports
  4. Pressure testing valve and earth deriving device available on requests
  5. Intergrated seal, air tight and water proof
  6. RoHS compliant
  7. Can be used in through, branch or mid span splice locations
  8. Suitable for aerial, underground duct or direct burial applications



Specification



Outside dimension (LxWxH)

280x200x90 (mm)

Weight (excluding outside box)

1200g-1500g

Number of inlet/outlet ports

max. 4 pieces

Diameter of fiber cable

Φ8—Φ14 (mm)

Capacity of FOSC

Bunchy: 6—96 (Cores)

Material

PC

Working / Storage temperature

-40 to 65℃.

Splice tray capacity

Bunchy:6,12,24(cores)



Application: aerial and wall-mounting



Main Accessory List:



Name of accessories

Usage

Heat shrinkable protective sleeve

Protecting fiber splices

Nylon tie

Fixing fiber with protective coat

Seal tape

Enlarging diameter of fiber  cable which

fits in with seal fitting

Hanging hook

For aerial use

Fixing device



Earthing wire

Putting through between earthing devices

Abrasive cloth

Scratching fiber cable

Labeling paper

Labeling fiber

Special wrench

Fixing octagonal nut (plastic)

Buffer tube



Hitched to fibers and fixed with FOST, managing buffer

Desiccant

Put into FOSC before sealing for desiccant air.



96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box 096 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box 196 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box 2

Peringkat & Ulasan

Peringkat Keseluruhan

5.0
Berdasarkan 50 ulasan untuk pemasok ini

Cuplikan Peringkat

Berikut adalah distribusi dari semua peringkat
5 bintang
100%
4 bintang
0%
3 bintang
0%
2 bintang
0%
1 bintang
0%

Semua Ulasan

H
H*d
Morocco Sep 6.2022
Bermanfaat (5)
This enclosure worked perfectly, well designed tray inside for spooling excess fiber. Solid post / clamp to secure jacket .Very happy with product , would buy again.
R
Rajeeb Lalchan
Turkey Jan 28.2022
Bermanfaat (2)
The team helped me from start to finish with this special order. Always updated on the status. With so many bad issues in the past, i was worried when buying items from alibaba, but for this one it went 100% ok. The order arrived as discussed and all perfect. Thank you.
