| Nama merek: | YINGDA |
| Nomor Model: | 204A/B |
| MOQ: | 100 PCS |
| harga: | Dapat dinegosiasikan |
| Waktu Pengiriman: | 5days after pay |
| Ketentuan Pembayaran: | T/T or western Union |

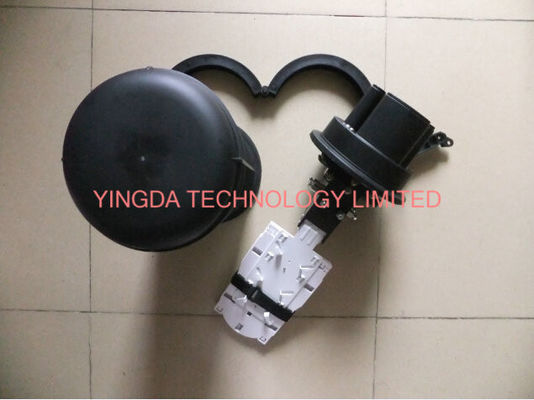

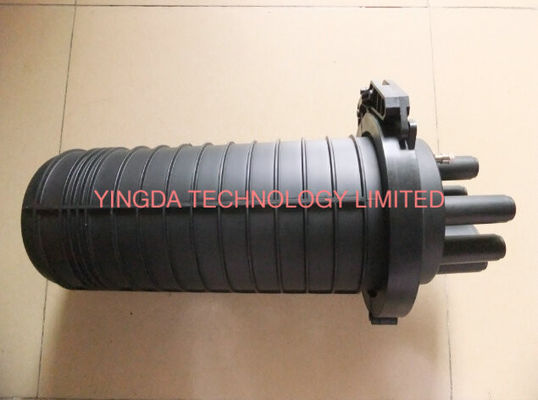

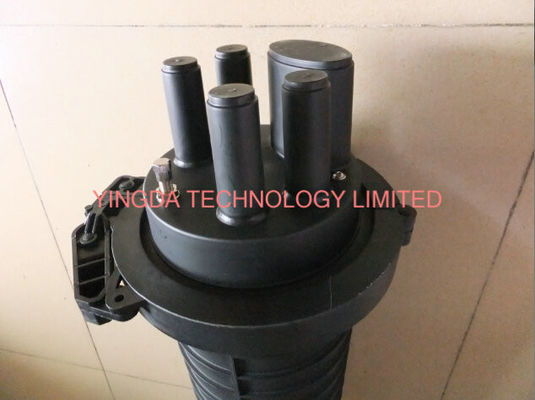

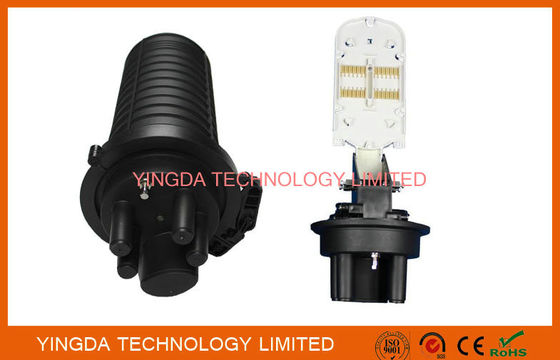

Aerial PP Dome Vertical Fiber Optic Splice Closure FOSC 204 144 Cores Fibers
Features
Application
Specification
|
Model No |
Max capacity (single fusion) |
Splice tray |
Size (Hx D) |
Cable ports |
Max cable diameter |
|
FOSC-204A |
144 fiber (6x24) |
Tray 204A Capacity:24 fiber |
450x230 mm |
1 oval port + 4 round ports |
1 oval port for 1 looped cable with max:24mm. 4round ports , each port for 1cable with max:17.5mm |
|
FOSC-204B |
144 fiber (6x24) |
Tray 204B Capacity:24 fiber |
Standard accessories
Dome,Base,clamp,O-ring,metal storage basket,Splice Tray,,Heat shrink protective sleeve,
buffer tube,Cable ties,Grounding wire,Labeling paper,Installation Manual,
1 set of Oval port closing kits:
Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper(2.5 x30mm)
+ 2 bags cleaning tissue+ branching clip etc
4 sets of Round port closing kits:
Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)+sand paper etc
Optional accessories
Order information:
FOSC-204X-XX-XX-X
FOSC-204(A,B,C)-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)
video
video
|
|
