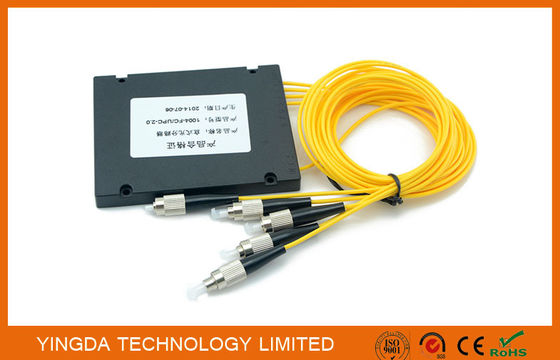

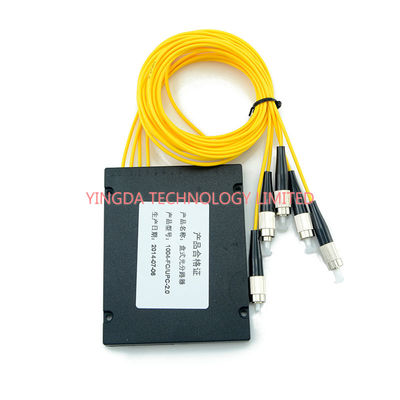

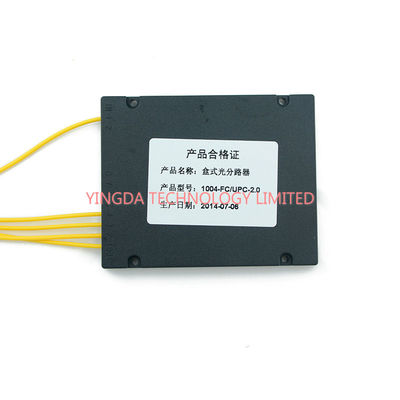

ABS Platic Box Optical Fiber Splitter , PLanar Lightwave Circuit Splitter Module FC 1.5M

MOQ:	50 pcs
harga:	1.1USD-4.58USD

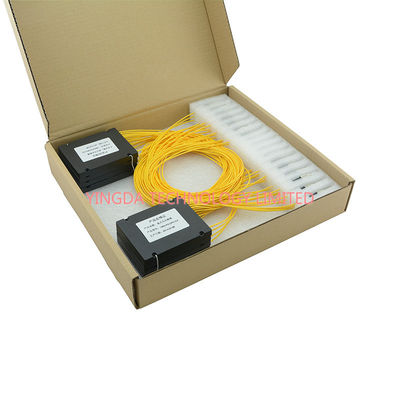

Kemasan standar:	1PC/BOX
Delivery period:	5-8days after payment
Kapasitas Pasokan:	10,000 pcs per month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

ISO SGS ROHS

Model Number

YD-PLC-MM-104-FC-15

connector:

FC/UPC

fiber type:

single mode G657A1

insertion loss:

7.3/7.0dB

Uniformity (Max.):

1.5dB

wavelength:

1260 - 1650 nm

PDL(Max.):

0.2dB

Module size:

100×80×10mm

square tube size:

40×4×4mm

flat tube size:

60×7×4mm

Menyoroti:

Fiber Optic Splitter

PLC Splitter

Deskripsi Produk

1x4 PLC Splitter ABS Platic Box, PLanar Lightwave Circuit (PLC) Splitter Module FC 1.5M

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is
fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features

Low Insertion Loss
Low PDL
High Isolation
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength
High Reliability and Stability

Applications

FTTH
PON Network
CATV Links
Communication Equipment

Specification

Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x4	1x8	1x16	1x32	1x64
Insertion Loss (dB)	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.6	0.8	1.2	1.5	2
Polarization Dependent Loss(dB)	0.2	0.2	0.25	0.3	0.35
Wavelength Dependent Loss(dB)	0.3	0.3	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.5	0.5	0.5
Return Loss (dB)	55/50
Operating Temperature	-40~+85
Directivity (dB)	≥ 55
Storage Temperature	-40~+85

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB) (S/P Grade)	4.2	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18

Notes:

Specified without connectors.
Add an additional 0.2dB loss per connector.

ABS Platic Box Optical Fiber Splitter , PLanar Lightwave Circuit Splitter Module FC 1.5M 0
