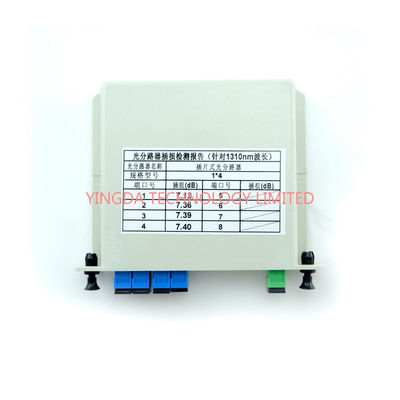

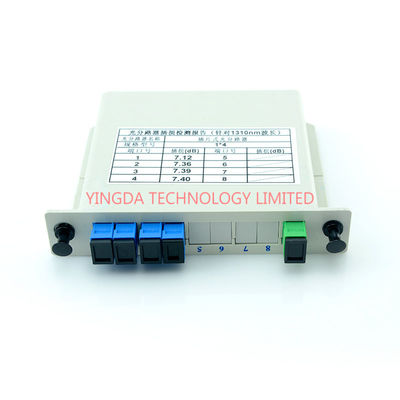

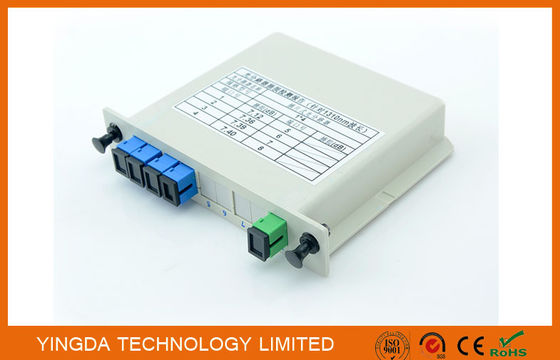

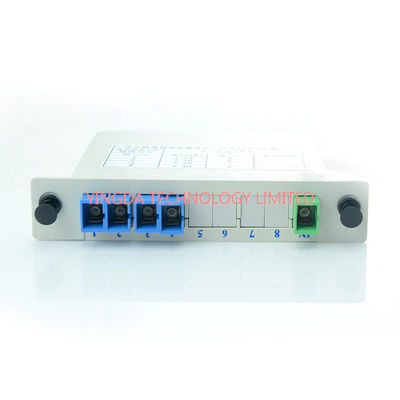

EPON 1*4 Fiber Optic PLC Splitter Cassette Module, 1:4 Splitter In LGX Box
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is
fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.
YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features
Compliance
Applications
Specification
Table1 – 1×N PLC Splitter
|
Operating Wavelength(nm) |
1260~1650 |
||||
|
Fiber Type |
G657A1 or as customers' order |
||||
|
Port Configuration |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
|
Insertion Loss (dB) |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
|
Loss Uniformity (dB) |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Dependent Loss |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Return Loss (dB) |
55/50 |
||||
|
Operating Temperature |
-40~+85 |
||||
|
Directivity (dB) |
≥ 55 |
||||
|
Storage Temperature |
-40~+85 |
||||
Table 2 – 2×N PLC Splitter
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
|
Operating Wavelength (nm) |
1260~1650 |
||||
|
Fiber Type |
SMF-28e or customer specified |
||||
|
Insertion Loss (dB) |
4.2 |
7.6 |
11.0 |
14.5 |
17.5 |
|
Loss Uniformity (dB) |
0.8 |
1.5 |
1.5 |
2.0 |
2.5 |
|
Return Loss (dB) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization Dependent |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~85 |
||||
|
Storage Temperature (°C) |
-40~85 |
||||
|
Module Dimension (mm) |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
Notes:
