| Nama merek: | YINGDA |
| Nomor Model: | YDPC-E2A-DX-03 |
| MOQ: | 500 pcs |
| harga: | Dapat dinegosiasikan |
| Waktu Pengiriman: | 5-8days after payment |

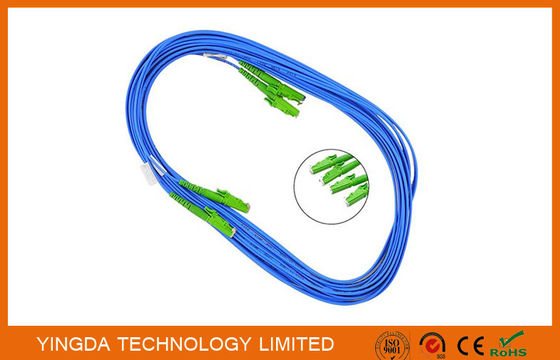

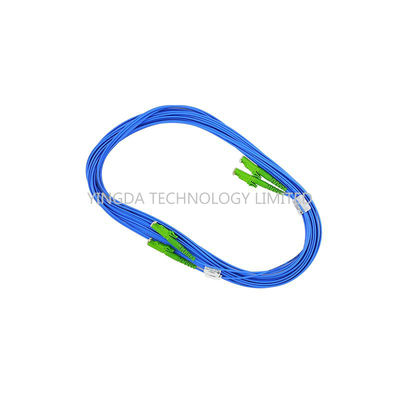

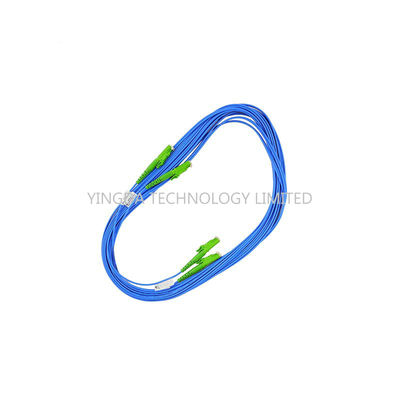

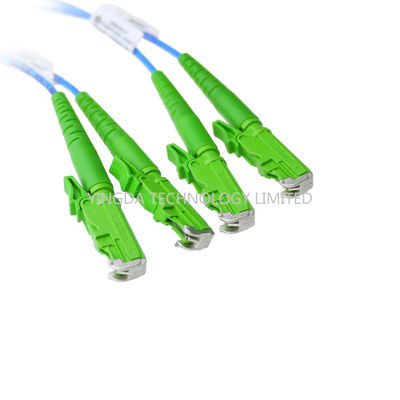

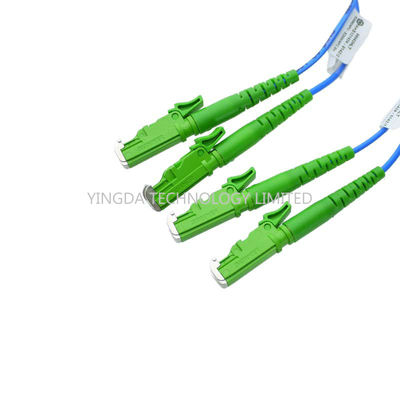

E2000 / APC - E2000 / APC Fiber Optic Patch Cord Singlemode Duplex Blue Cable LSZH
Features
Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.
Fiber optic patchcord are used for linking the equipment and components in the fiber optic network ,
they are with various kinds of fiber optic connector types. the fiber optic patch cord types are classfied
by the fiber optic connector types.for example,we name LC fiber optic patch cord because this cable is
with LC fiber optic connector.there are PC,UPC,APC type fiber patch cord, they are different because
of the polish of fiber connectors.
Fiber optic patch cord are with various kinds of cables,PVC, Riser, Plenum, OFNR,OFNP,LSZH (LSOH),
10 Gig Aqua, there are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber
cable assemblies,and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable
assemblies.Typical fiber optic patch cord cable diameter can be 0.9mm,2mm,or 3mm.
Application
Specification
|
Jacket |
Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC |
|
Diameter |
0.9mm (9/125um), 1.6mm, 1.8mm, 2.0mm, 3.0mm |
|
Jacket Colors |
Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
|
Connector |
FC,SC,ST,MU,LC, D4,DIN,E2000 MT-RJ,MPO FC,SC,ST,MU, LC,SMA,E2000 MT-RJ,FDDI, MPO,ESCON |
|
Insertion Loss (dB) |
≤ 0.2 (UPC) |
|
Exchangeability |
≤ 0.2 dB |
|
Tensile Strength |
≤ 0.2 dB ( 0 to15 Kgf ) |
|
Temp. Range |
(- 40 to +80 degree centigrade) |
|
Polish |
UPC APC PC |
|
Cable type |
Singlemode, multimode |
|
Apex offset |
≤50 um, ≤100 um |
|
Fiber Spherical Height |
-90 nm , +50 nm |
|
Angular Offset |
8°± 0.5°C (APC) |
video
video
|
|
