| Nama merek: | YINGDA |
| Nomor Model: | YDPC-LL-DX-30 |
| MOQ: | 500 pcs |
| harga: | Dapat dinegosiasikan |
| Waktu Pengiriman: | 5-8days after payment |

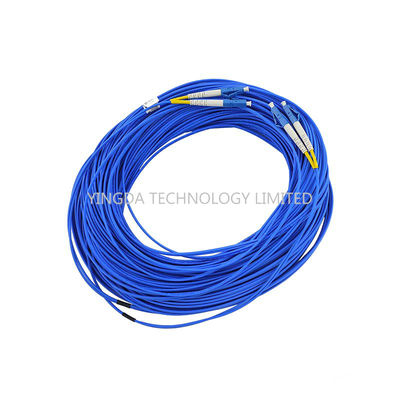

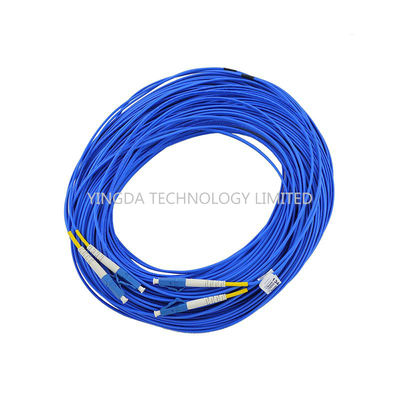

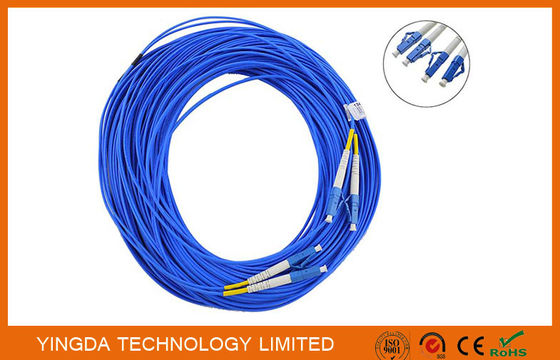

LC to LC Singlmode Duplex Fiber Optic Patch Cable, LC-LC Fiber Patch Cable Duplex Riser
Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

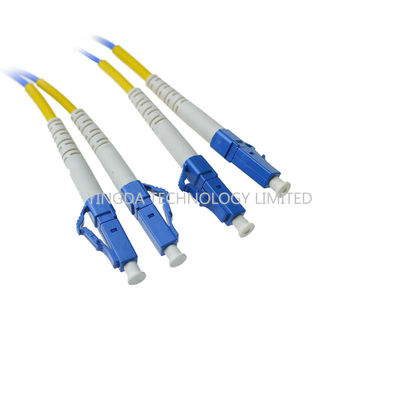

LC is the short form of Lucent Connector, LC fiber patch cord connector is a push and latch structure,
with plastic housing and accurate 1.25mm ceramic ferrule. LC type is a popular kind of small form fiber
optic patch cord which reduce the space and it is widely used for densely installation.
Fiber optic patch cord are with various kinds of cables,PVC, Riser, Plenum, OFNR,OFNP,LSZH (LSOH),
10 Gig Aqua, there are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber
cable assemblies,and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable
assemblies.Typical fiber optic patch cord cable diameter can be 0.9mm,2mm,or 3mm.
Features
Application
Specification
|
Jacket |
Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC |
|
Diameter |
0.9mm (9/125um), 1.6mm, 1.8mm, 2.0mm, 3.0mm |
|
Jacket Colors |
Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
|
Connector |
FC,SC,ST,MU,LC, D4,DIN,E2000 MT-RJ,MPO FC,SC,ST,MU, LC,SMA,E2000 MT-RJ,FDDI, MPO,ESCON |
|
Insertion Loss (dB) |
≤ 0.2 (UPC) |
|
Exchangeability |
≤ 0.2 dB |
|
Tensile Strength |
≤ 0.2 dB ( 0 to15 Kgf ) |
|
Temp. Range |
(- 40 to +80 degree centigrade) |
|
Polish |
UPC APC PC |
|
Cable type |
Singlemode, multimode |
|
Apex offset |
≤50 um, ≤100 um |
|
Fiber Spherical Height |
-90 nm , +50 nm |
|
Angular Offset |
8°± 0.5°C (APC) |
Order information
|
Connector A |
Connector B |
Fiber type |
Cable diameter |
Cable jacket |
Length |
|
LC/UPC |
LC/UPC |
9/125um |
0.9mm simplex |
PVC |
0.5m |
|
LC/APC |
LC/APC |
50/125um |
1.8mm simplex |
LSZH |
1m |
|
FC/UPC |
FC/UPC |
62.5/125um |
2.0simplex |
|
3m |
|
FC/APC |
FC/APC |
50/125um OM3 |
3.0mm simplex |
|
5m |
|
SC/UPC |
SC/UPC |
50/125um OM4 |
1.8mm duplex |
|
... |
|
SC/APC |
SC/APC |
|
2.0mm duplex |
|
|
|
ST/UPC |
ST/UPC |
|
3.0mm duplex |
|
|
|
MTRJ/female |
MTRJ/female |
|
3.0mm round |
|
|
|
MTRJ/male |
MTRJ/male |
|
... |
|
|
|
MU/UPC |
MU/UPC |
|
|
|
|
|
MU/APC |
MU/APC |
|
|
|
|
|
E2000 |
E2000 |
|
|
|
|
|
... |
... |
|
|
|
|
