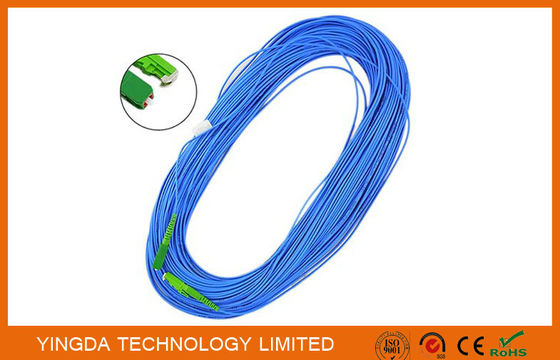

Strong Tensile Fiber Optic Patch Cord Cable E2000 / APC - E2000 For Test Equipment
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| connector | E2000 / APC | fiber count | simplex |
|---|---|---|---|
| insertion loss | < 0.3 dB | return loss | >60dB apc |
| Fiber length | 35 meter | cable diameter | 1.8 mm |
| cable color | blue | connector color | green |
| Cahaya Tinggi | fiber optic patch cable,multimode patch cord |
||
Deskripsi Produk

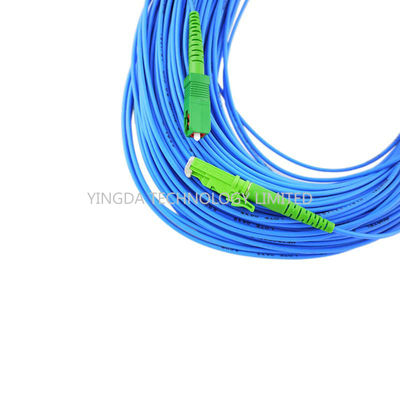

E2000 / APC - E2000 / APC Patch Cord Fiber Optic Cable Singlemode LSZH 35M 1.8mm
Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

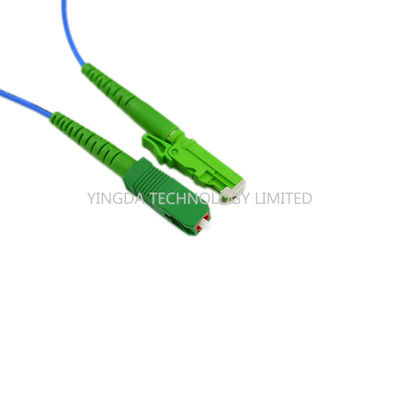

E2000 fiber optic patch cord is one of the latest style yet one of the most expensive cable.Developed
by Diamond, E2000 features a spring-loaded shutter used to protect the ferrule from dust and scratches.
E2000 fiber connectors is similar size of SC fiber connectors.
Features
- Low insertion loss
- Repeat ability
- High return loss
- Mutual Insert performance
- Good temperature stability
- Strong tensile property
- Cheap multimode fiber price,short distance transmission
- Wide transmission bandwidth
Application
- Fiber communication system
- Fiber access network
- Data transmission
- CATV
- LAN
- Test equipment
- Optical fiber sensor
Specification
|
Jacket |
Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC |
|
Diameter |
0.9mm (9/125um), 1.6mm, 1.8mm, 2.0mm, 3.0mm |
|
Jacket Colors |
Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
|
Connector |
FC,SC,ST,MU,LC, D4,DIN,E2000 MT-RJ,MPO FC,SC,ST,MU, LC,SMA,E2000 MT-RJ,FDDI, MPO,ESCON |
|
Insertion Loss (dB) |
≤ 0.2 (UPC) |
|
Exchangeability |
≤ 0.2 dB |
|
Tensile Strength |
≤ 0.2 dB ( 0 to15 Kgf ) |
|
Temp. Range |
(- 40 to +80 degree centigrade) |
|
Polish |
UPC APC PC |
|
Cable type |
Singlemode, multimode |
|
Apex offset |
≤50 um, ≤100 um |
|
Fiber Spherical Height |
-90 nm , +50 nm |
|
Angular Offset |
8°± 0.5°C (APC) |
Ordering information
|
Boot (cable size) |
Boot Color |
Fiber Type |
Cable number |
Ferrule |
Length |
|
0.9mm 2.0mm 3.0mm |
Black Biege Blue Gray White Yellow |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
PC APC |
Customized |
