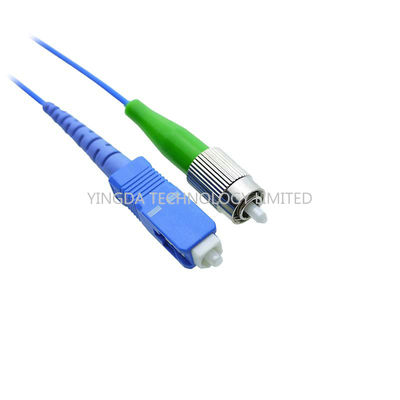

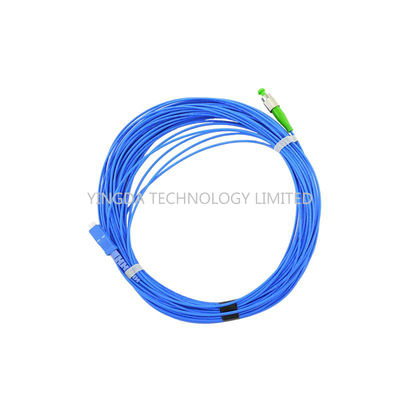

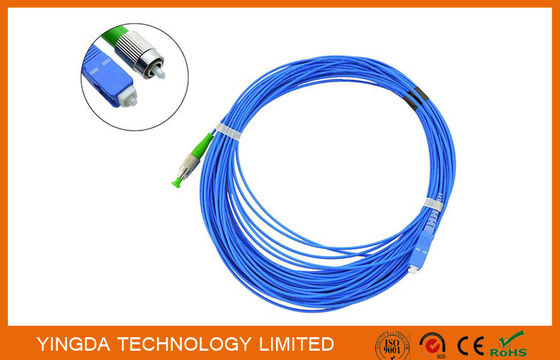

APC Fiber Optic Patch Cord , FC to SC Fiber Patch Cable Blue Singlemode 1.8mm LSZH
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| connector | FC/APC, SC/UPC | fiber count | simplex |
|---|---|---|---|
| insertion loss | < 0.3 dB | return loss | >60 dB apc; >55dB upc |
| Fiber length | 20 meter | cable diameter | 1.8 mm |
| cable color | blue | connector color | SC - blue, FC/APC - green |
| Cahaya Tinggi | fiber optic patch cable,multimode patch cord |
||
Deskripsi Produk
SC to FC APC Fiber Optic Patch Cord, FC to SC Fiber Patch Cable Blue Singlemode 1.8mm LSZH
Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.
SC fiber optic patch cable is one of the earliest stype and one of the most commonly used fiber optic
cable, it is convenient to use and cost saving, SC fiber optic patch cord is widely uesed in fiber optic
networks. SC fiber patch cable is with zirconia sleeve and plastic housing.
The FC fiber optic patch cable is available in both singlemode and multimode versions, and is fully
intermateable with NTT-FC products. Both smf and mmf versions FC fiber optic patch cord come with
a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end.
Features
- Low insertion loss
- Repeat ability
- High return loss
- Mutual Insert performance
- Good temperature stability
- Strong tensile property
- Cheap multimode fiber price,short distance transmission
- Wide transmission bandwidth
Application
- Fiber communication system
- Fiber access network
- Data transmission
- CATV
- LAN
- Test equipment
- Optical fiber sensor
Specification
|
Item |
Standard,Master |
|
Connector type |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC, FC/APC,LC/APC.MU/APC |
|
Duplex MTRJ/Female, MTRJ/Male |
|
|
Fiber Type |
|
|
9/125 SMF-28 or equivalent (Singlemade) OS1 |
|
|
50/125, 62.5/125 (Multimode) OM2&OM1 |
|
|
50/125, 10G (Multimode) OM3 |
|
|
Cable Type |
Simplex, Duplex (Zipcord) |
|
Φ3.0mm, Φ2.0mm, Φ1.8mm |
|
|
Φ1.6mm PVC or LSZH |
|
|
Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
|
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) |
|
≤ 0.25dB (For Singlemode Standard) |
|
|
≤ 0.25dB (For Multimode) |
|
|
Tested by JDS RM 3750 |
|
|
|
UPC ≥ 50dB |
|
SPC ≥ 55dB |
|
|
APC ≥ 60dB (typ.65dB) |
|
|
Tested by JDS RM3750 |
|
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C to 850C |
|
(For Singlemode) |
Ferrule Endface Radius |
|
7mm ≤ R ≤ 12mm (For APC) |
|
|
10mm ≤ R ≤ 25mm (For Standard) |
|
|
Apex Offset ≤ 30 μm (For Master) |
|
|
Apex Offset ≤ 50 μm (For Standard) |
|
|
Undercut -50nm ≤ U ≤ 50nm |
|
|
Tested by DORC ZX-1 |
Ordering information
|
Boot (cable size) |
Boot Color |
Fiber Type |
Cable number |
Ferrule |
Length |
|
0.9mm 2.0mm 3.0mm |
Black Biege Blue Gray White Yellow |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
PC APC |
Customized |
