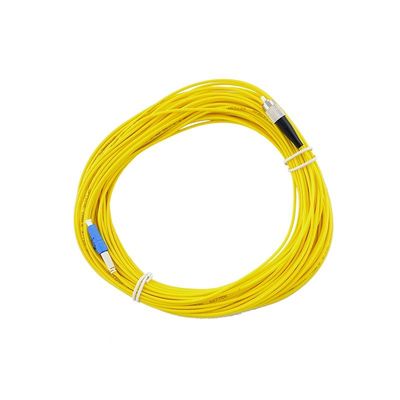

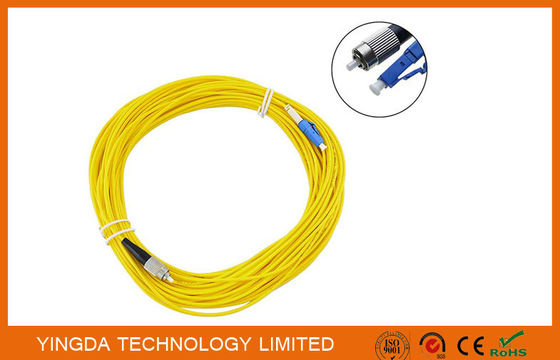

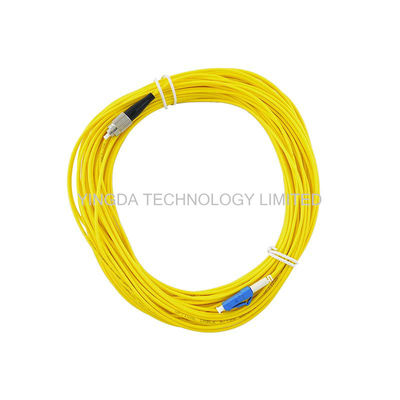

LC to FC Singlemode Simplex Fiber Optic Patch Cord, LC / FC Fiber Patch Cable
20Meters LSZH
Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

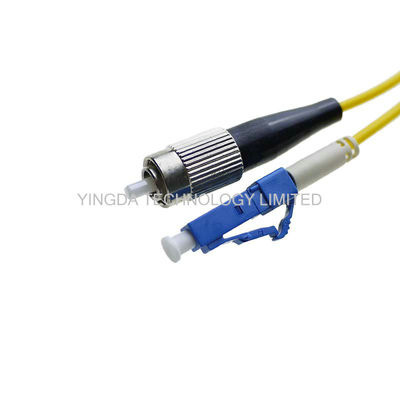

LC is the short form of Lucent Connector, LC fiber patch cord connector is a push and latch structure,
with plastic housing and accurate 1.25mm ceramic ferrule. LC type is a popular kind of small form fiber
optic patch cord which reduce the space and it is widely used for densely installation.
FC fiber optic patch cords are with FC fiber optic connectors ,which is a screw type connection. FC fiber
optic patch cords were very much popular in the past ,but people tend to use LC and SC to replace FC
more and more.
Features
Specification
|
Item |
Standard,Master |
|
Connector type |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC, FC/APC,LC/APC.MU/APC |
|
Duplex MTRJ/Female, MTRJ/Male |
|
|
Fiber Type |
|
|
9/125 SMF-28 or equivalent (Singlemade) OS1 |
|
|
50/125, 62.5/125 (Multimode) OM2&OM1 |
|
|
50/125, 10G (Multimode) OM3 |
|
|
Cable Type |
Simplex, Duplex (Zipcord) |
|
Φ3.0mm, Φ2.0mm, Φ1.8mm |
|
|
Φ1.6mm PVC or LSZH |
|
|
Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
|
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) |
|
≤ 0.25dB (For Singlemode Standard) |
|
|
≤ 0.25dB (For Multimode) |
|
|
Tested by JDS RM 3750 |
|
|
|
UPC ≥ 50dB |
|
SPC ≥ 55dB |
|
|
APC ≥ 60dB (typ.65dB) |
|
|
Tested by JDS RM3750 |
|
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C to 850C |
|
(For Singlemode) |
Ferrule Endface Radius |
|
7mm ≤ R ≤ 12mm (For APC) |
|
|
10mm ≤ R ≤ 25mm (For Standard) |
|
|
Apex Offset ≤ 30 μm (For Master) |
|
|
Apex Offset ≤ 50 μm (For Standard) |
|
|
Undercut -50nm ≤ U ≤ 50nm |
|
|
Tested by DORC ZX-1 |
Application
Order information
1. Connector type: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA,
2. End face: UPC PC APC
3. Cable diameter: Ф0.9mm, Ф1.6mm,Ф1.8mm, Ф2mm, Ф2.4mm, Ф3mm.
4. Fiber count: simplex, duplex, 4 core, 6 core, 8 core, 12 core or customer specified
5. Fiber types: G652B, G652D, G655, G657A1, G657A2, 50/125,um 62.5/125um,
OM3 (50/125-150), OM4 (50/125-300) etc.
6. Connector housing color: Blue (single mode PC, UPC connector), beige, grey (multimode connector),
green (APC connector), aqua (OM3)
7. Boot color : grey,blue, green, white, red, black, green
8. Cable jacket: PVC, LSZH
9. Cable length: customized
