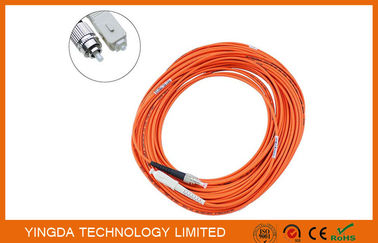

Customized Fiber Optic SC to FC Patch Cord Simplex , Duplex , 4 Core , 6 Core

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO SGS ROHS
Nomor model SCFC-MMSX-25-3mm
Kuantitas min Order 500 pcs
Harga negotiable
Kemasan rincian 1 pc / plastic bag
Waktu pengiriman 5-8days after payment
Menyediakan kemampuan 15,000 pcs / day

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
connector SC to FC patch cord fiber count Simplex
insertion loss < 0.3 dB return loss >35dB pc
Fiber length 25meter cable diameter 3.0mm
cable color orange connector color beige:sc, black: fc
fiber type multimode 50/125um
Cahaya Tinggi

fiber optic jumper

,

multimode patch cord

Tinggalkan pesan
Deskripsi Produk

FC / SC Mulitmode Fiber Optic Patch Cord, SC to FC Fiber Optic Patch Cable MM SX





Fiber jumper (also called optical fiber connector) have connectors on both ends, used to achieve the

optical path movable connected; If only one end with connectors called pigtail. Optical fiber jumper

(Optical Fiber Patch Cord/Cable) and similar to coaxial cable, but no have net shielding layer. The

center is the light transmission glass core(ferrule). In multimode fibers, the diameter of the core is

50 mu m~65 mu m, roughly equal to the human hair thickness. While the single mode fiber core

diameter is 8u m~10u m. The core is surrounded by a layer of glass coating whose refractive index

is lower than the core, in order to make the optical fiber holding in the core. Outside is a thin layer

of plastic jacket to protect the coating.



According to the transmission media Fiber jumper can be divided into single mode, multimode optical

fiber jumper, and other transmission media such as plastic jumper. According to connector type, it can

be divided into: FC jumper, ST jumper, SC jumper, LC jumper, MTRJ patch cord, MPO patch cord jumper,

also MU, SMA, FDDI, E2000, DIN4 D4 jumper and so on. Most commonly used is FC-FC, FC-SC, FC-LC,

FC-ST, SC-SC, SC-ST fiber optic patch cord.



Multimode fiber (Multi-mode Fiber):

 the fiber patch cable is orange, connector and housing beige; short distance transmission.



Features

  • Low insertion loss
  • Repeat ability
  • High return loss
  • Mutual Insert performance
  • Good temperature stability
  • Strong tensile property
  • Cheap multimode fiber price,short distance transmission
  • Wide transmission bandwidth


Application

  1. Fiber communication system
  2. Fiber access network
  3. Data transmission
  4. CATV
  5. LAN
  6. Test equipment
  7. Optical fiber sensor



Specification



Item

Standard,Master

Connector type

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,

FC/APC,LC/APC.MU/APC

Duplex MTRJ/Female, MTRJ/Male

Fiber Type



9/125 SMF-28 or equivalent (Singlemade) OS1

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G  (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord)

Φ3.0mm, Φ2.0mm, Φ1.8mm

Φ1.6mm PVC or LSZH

Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750


Return Loss (For Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability

 ±0.1dB

Operating temperature

-400C to 850C


Geometry Requirement

(For Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1





Order information



1. Connector type: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA,

2. End face: UPC PC APC

3. Cable diameter: Ф0.9mm, Ф1.6mm,Ф1.8mm, Ф2mm, Ф2.4mm, Ф3mm.

4. Fiber count: simplex, duplex, 4 core, 6 core, 8 core, 12 core or customer specified

5. Fiber types: G652B, G652D, G655, G657A1, G657A2, 50/125,um 62.5/125um,

OM3 (50/125-150), OM4 (50/125-300) etc.

6. Connector housing color: Blue (single mode PC, UPC connector), beige, grey (multimode connector),

     green (APC connector), aqua (OM3)

7. Boot color : grey,blue, green, white, red, black, green

8. Cable jacket: PVC, LSZH

9. Cable length: customized





Customized Fiber Optic SC to FC Patch Cord Simplex , Duplex , 4 Core , 6 Core 0

Cable color and the connector house can be cusotmized:



Customized Fiber Optic SC to FC Patch Cord Simplex , Duplex , 4 Core , 6 Core 1Customized Fiber Optic SC to FC Patch Cord Simplex , Duplex , 4 Core , 6 Core 2Customized Fiber Optic SC to FC Patch Cord Simplex , Duplex , 4 Core , 6 Core 3
